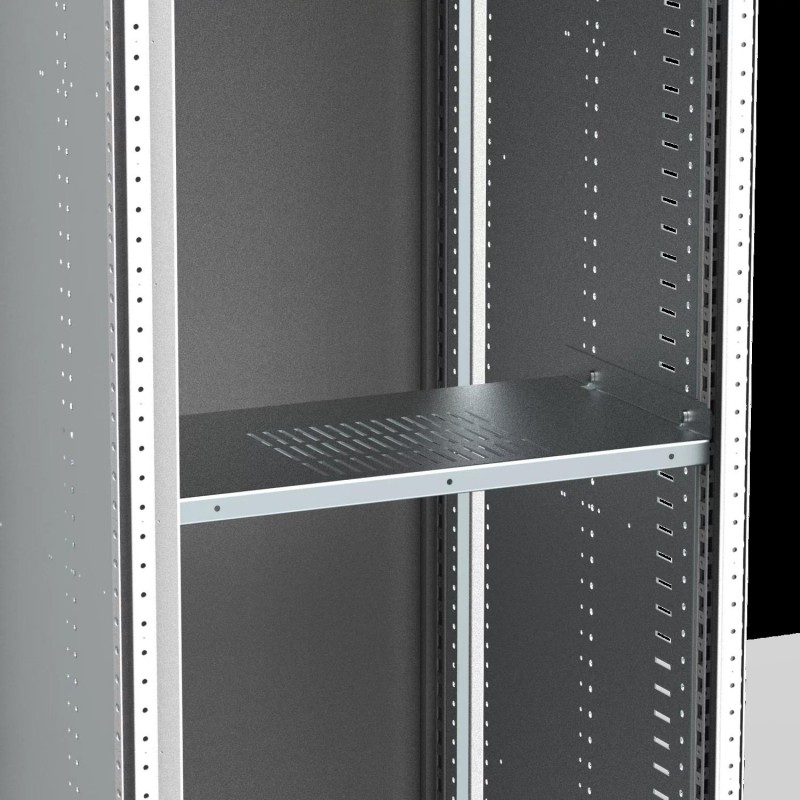

ELDON MSCC1006 MSCC1006 - Image 1

Les images sont à titre illustratif. Svp, révisez la fiche technique.

MSCC1006 ELDON Plateau pour PBR, 1000x600, pour basculer de la coupe de la air

Référence: MSCC1006

Fabricant: ELDON

Description:

Plateau pour PBR, 1000x600, pour basculer de la coupe de la air
Etagère pour DAC, 1000x600, Pour disjoncteur à air comprimé

Catégories:

  • Armoires, coffrets, boites, baies, pupitres et accessoires > Composants pour le démontage (armoire de commande)
  • ELDON > Énergie et distribution

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ELDON

  • En savoir plus
  • Commentaires
Garantie, réparation et dévolution.

Prix unitaire: 52,27 €

Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant).

Calculer le prix par quantité

QuantitéPrix

Délai standard: 10 jours.

  • Ces délais sont estimatifs et peuvent varier une fois la commande de l'article traitée.

DERNIÈRE CONSULTÉS

EN SAVOIR PLUS

Fonctions

  • Description: Shelf to mount air circuit-breakers, fixed or withdrawable version and MCCB's version in cassette. The shelf has ventilation slots to allow air circulation in the section. It can be mounted only if we have internal side panels MSPSxx06 in both sides. Adjustable height position in steps of 25mm. It can not be used with the front covers system, if it is neccessary to increase the internal segregation or limit the access, we recommend to use top and bottom shelf and 3 partial doors to separate the incoming, ACB and outgoing subsections.
  • Matériau: 2 mm galvanised steel.
  • Livraison: 1 piece with mounting material.
  • The free space behind the shelf allows customers to easily install incoming and outgoing cables and/or busbars
  • In order to mount the shelf, internal side panels (MSPS), are required
  • Shelf to mount air circuit-breakers, fixed or withdrawable version and MCCB's version in cassette
  • The shelf has ventilation slots to allow air circulation in the section
  • It can be mounted only if we have internal side panels MSPSxx06 in both sides
  • Adjustable height position in steps of 25mm
  • It can not be used with the front covers system, if it is neccessary to increase the internal segregation or limit the access, we recommend to use top and bottom shelf and 3 partial doors to separate the incoming, ACB and outgoing subsections
  • Comprend le matériel de montage
Atributo del producto Valor
Height78 mm
Width1000 mm
Depth600 mm
Mounting Plate Width904 mm
Max Mounting Depth283 mm
Enclosure MaterialAcier doux
Product FamilyFree-Standing
MaterialAcier doux
FinishPeinture poudre structurée
Colorn/a
Thickness2 mm
UPC783510515119
EAN8713574222984
Quantité d'emballage standard1.0000
Quantité d'emballage1.0000
