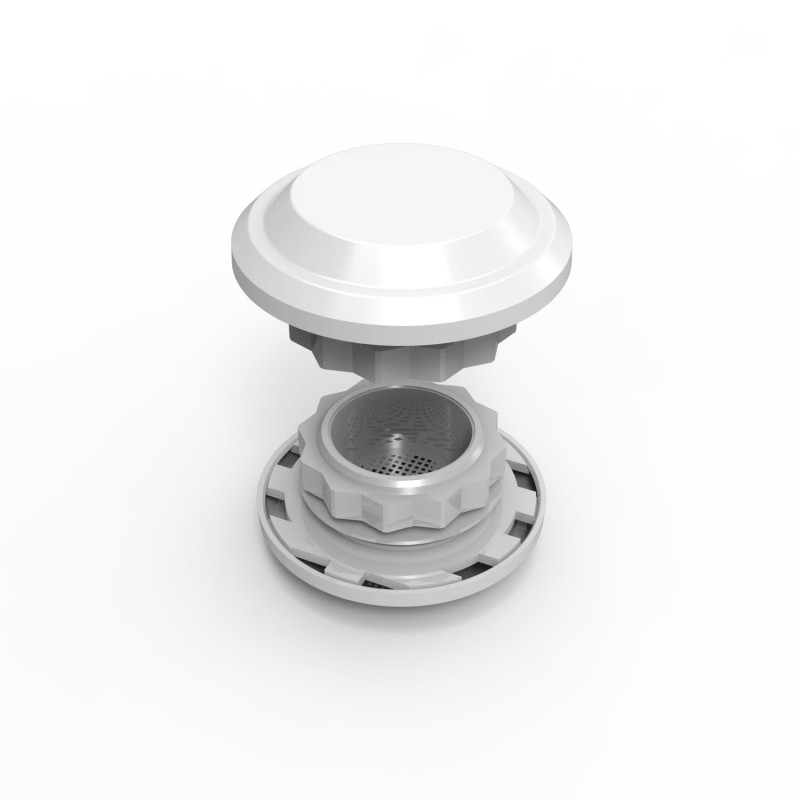

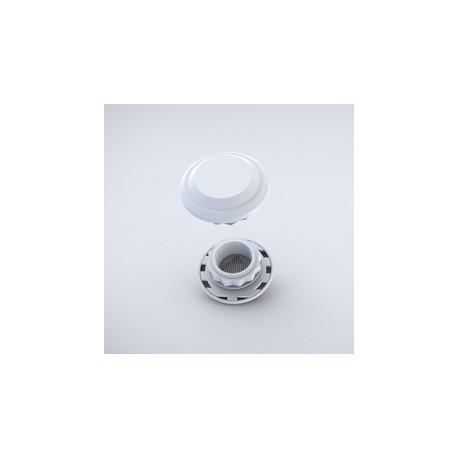

PVD02 nVent HOFFMAN Bouchon de pression, IP55 PVD02

Description:

Il permet de faire évoluer la pression progressivement. Des variations de température très brusques peuvent provoquer un différentiel de pression à l'intérieur d'une armoire. Il existe alors un risque de pénétration d'humidité et de poussière. Se monte sur la partie filetée PG29 + contre-écrou. Pour une compensation optimale de la pression, nous recommandons d'installer deux unités sur deux côtés opposés en haut de l'armoire. Joint d'étanchéité NBR.Une interface d'air d'environ 1,5 cm².

Matériau:

Plastique conforme UL94 V-0.

Humidité opérationnel:

-45 °C à +70 °C.

usinage requis:

Perçage diam 37 mm.

Protection:

IP 55.

Finition:

Gris clair.

Unité de livraison:

2 pièces.

Feature:

Plastic pressure compensation plug with waterproof membrane.

Advantage:

In certain locations there can be wide temperature variations especially over a short period of time, which creates pressure differences from inside to outside of the enclosure. The pressure plug equalises the pressure inside and outside the enclosure allowing air and humidity to leave, while only allowing dry air to enter inside the enclosure. The plug can be easily installed and only requires a round hole to be machined.

Benefit:

The pressure compensation plug reduces the risk of dust entering the enclosure, ensuring that a vacuum is not created. Built up humidity can leave the enclosure which reduces potential hazards with electrical components. The ease of installation reduces the labour time required and means that the modification can be done on site while the enclosure is operational, saving unnecessary downtime.

Comment:

Highly recommended to install two plugs per enclosure for optimal pressure compensation. The plugs should be both be installed at the top of the enclosure but on opposite sides. If a higher protection degree is required, then the compensation pressure plug, EDA/EDAS, should be installed.
