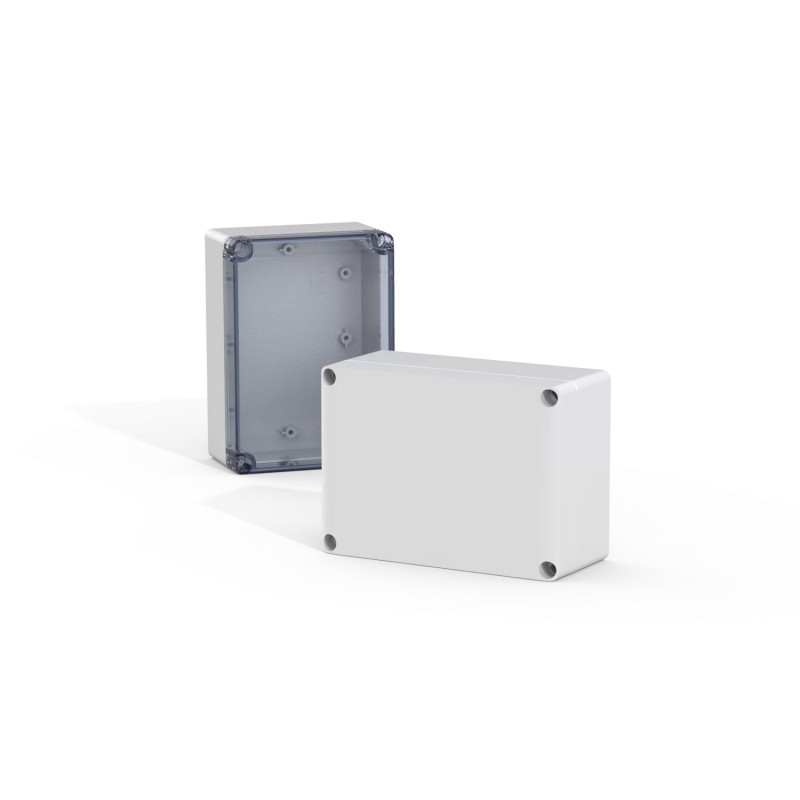

SABP182508TE ELDON Boîtier terminal, 175x250x75 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

SABP182508TE ELDON Boîtier terminal, 175x250x75

SABP182508TE

ELDON

Boîtier terminal, 175x250x75

Boîte pour les terminaux, 175x250x75, couvercle transparent, sans PW, ABS, IP66

Medium Abs Terminal Box, SABP, 175 x 250 x 75, Gris clair, ABS

Plus de détails


Systèmes d'enveloppes (y compris coffrets d'installation) > Enveloppe vide

Boîtiers terminaux

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ELDON

Prix total: $56.91
Prix unitaire: $56.91
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

En savoir plus



Fonctions

  • Description: Boîtier ABS sans halogène pour usage en intérieur. Faible résistance aux rayons UV.
  • Matériau: Corps: ABS. Couvercle plein: ABS. Couvercle transparent : polycarbonate.
  • Joint: Joint en polyuréthane intégré dans le couvercle du boîtier.
  • Resistance à la température: -40 à +60 °C.
  • Inflammabilité: UL94 HB.
  • Protection: IP 66/67 IK 06 (-25 °C), IK 07 (+35 °C).
  • Finition: RAL 7035.
  • Livraison: Corps, couvercle, vis de couvercle en polyamide et vis de fixation.
  • Customers can choose terminal boxes that meet their size requirements, off the shelf
  • The installed components inside the terminal box will be safe and secure due to the high protection degree
  • Customers can receive terminal boxes with a short delivery time, that match their size requirements
  • This will also remove any extra costs due to oversizing
  • Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box
  • The mounting plate, SMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box
  • Note: Boîte à bornes, with polycarbonate transparent cover fitted, can be ordered by replacing GE with TE in the item number
  • erminal box manufactured from polycarbonate can be ordered by replacing SABP with SPCP in the item number
Atributo del producto Valor
Height (H)175 mm
Width (W)250 mm
Depth (D)75 mm
Weight0.5 kg
MaterialABS
FinishSmooth
ColorGris Clair
Color CodeRAL 7035
EAN6418677177958
Quantité d'emballage standard1.0000
Quantité d'emballage1.0000

Datasheet - PDF
