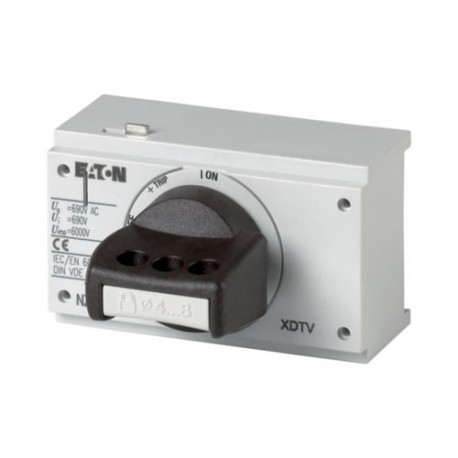

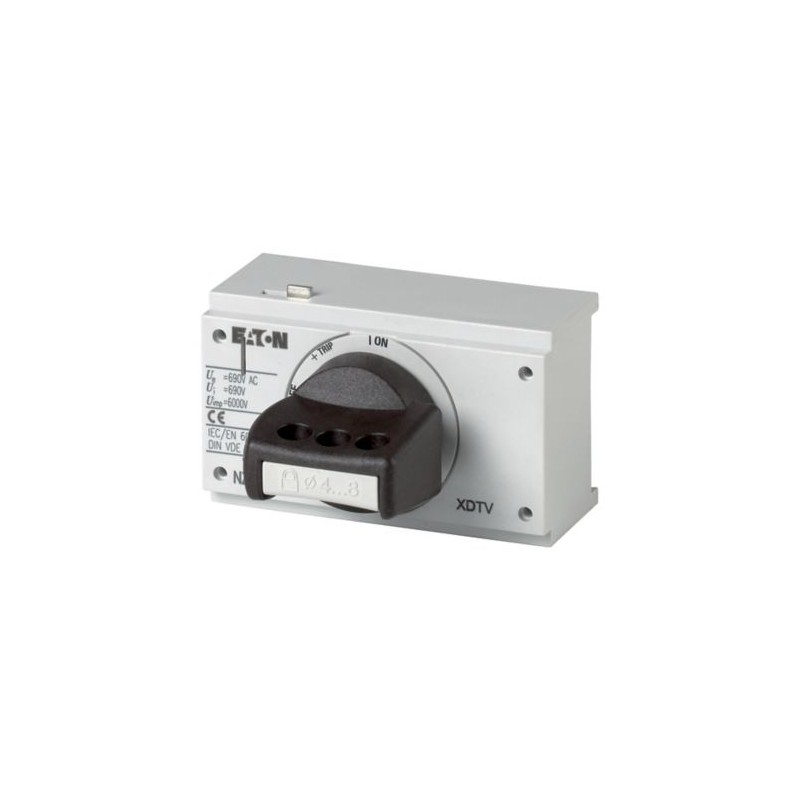

NZM1-XDTV-NA 271453 Y7-271453 EATON ELECTRIC Poignée rotative pour mécanisme inverseur, noire, verrouillable.. Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

NZM1-XDTV-NA 271453 Y7-271453 EATON ELECTRIC Poignée rotative pour mécanisme inverseur, noire, verrouillable..

NZM1-XDTV-NA

271453

Y7-271453

EATON-MOELLER

Poignée rotative pour mécanisme inverseur, noire, verrouillable sur la poignée, version NA

NZM1-XDTV-NA

Eaton Moeller series NZM - Molded Case Circuit Breaker. Rotary handle, black, lockable on the handle, for NZM1, NA type

Plus de détails


Appareillage industriel basse tension > Poignée pour disjoncteur

Commutateurs automatiques à boîtier moulé NZM

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $108.07
Prix unitaire: $108.07
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller series NZM operating element NA
Catalog Number
271453
Model Code
NZM1-XDTV-NA
EAN
4015082714536
Product Length/Depth
80 mm
Product Height
54 mm
Product Width
90 mm
Product Weight
0.16 kg
Compliances
UL/CSA
IEC
RoHS conform
Certifications
CSA (Class No. 1437-01)
CSA (File No. 22086)
UL489
IEC60947
CSA-C22.2 No. 5-09
CSA certified
UL (File No. E140305)
CE marking
UL listed
UL (Category Control Number DIHS)

Spécifications du produit

Type
AccessoryRotary handle on switch with door interlock
Special features
Complete with rotary drive and insulating surroundCannot be combined with mechanical interlockMakes it possible to operate the switch with a rotational movement and provides locking facilities
Features
Lockable
Standard: black / gray
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Fitted with:
Padlock
Frame
NZM1
Used with
NZM1, N(S)1
Suitable for
Power circuit breaker
Switch disconnector
Cover/door type
Door interlock can only be switched ON when the door is closed
Door interlock cannot be combined with mechanical locking
Door interlock in ON position
Door interlock not defeated in the locked OFF and ON positions
Door interlock can be defeated from the outside using a 1 mm pin
Door opens only with active rotation beyond the 0 position
Locking facility
Also available with door interlock e.g. for MCC service distribution
Can also be modified in I position
Lockable on the 0 position on the handle using up to 3 padlocks
Degree of protection / NEMA enclosure type
IP40
4X. 12
