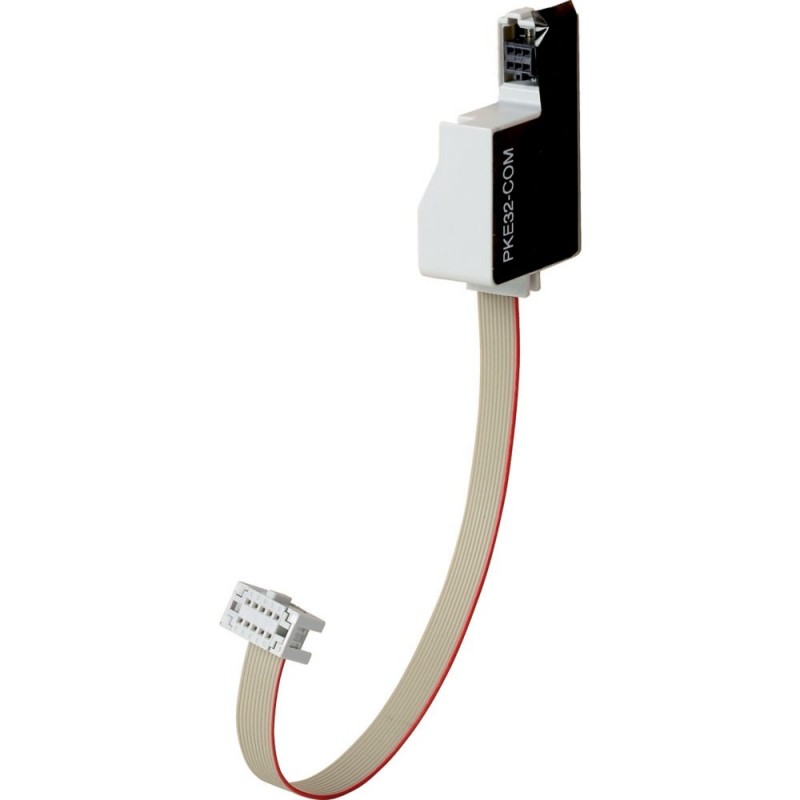

PKE32-COM 168970 EATON ELECTRIC Ligne de communication, PKE
PKE32-COM
168970
EATON-MOELLER
Ligne de communication, PKE
PKE32-COM
Eaton Moeller® series PKE32 Communication cable, PKE
Appareillage industriel basse tension > Accessoires pour connectique basse tension
Interrupteurs de protection de moteur électroniques
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲Achetés habituellement ensemble
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series PKE communication cable
Catalog Number
168970
Model Code
PKE32-COM
EAN
4015081654611
Product Length/Depth
160 mm
Product Height
30 mm
Product Width
21 mm
Product Weight
0.007 kg
Compliances
CE
Features & Functions
Fitted with:
2 plugs
Functions
For connecting the PKE to DS7-SWD
Number Of Poles
Six-pole
General
Accessory/spare part type
Communication and measuring function
Product category
Accessories
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Communication
Connection to SmartWire-DT
Yes
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 34 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| PKE32-COM PKE32-COM 168970 FR_168970.pdf | 109 Kbytes |
|
