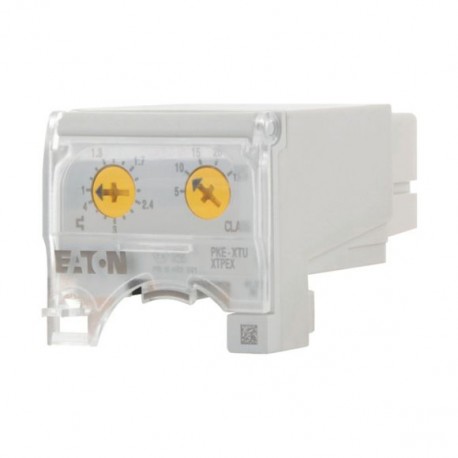

PKE-XTUA-4 121728 Y7-121728 EATON ELECTRIC Bloc de déclenchement, 1-4A, possibilité de mise en réseau, prote..
PKE-XTUA-4
121728
Y7-121728
EATON-MOELLER
Bloc de déclenchement, 1-4A, possibilité de mise en réseau, protection des moteurs
PKE-XTUA-4
Eaton Moeller® series PKE Trip block, 1 - 4 A, Motor protection, Connection to SmartWire-DT: yes, For use with: PKE12 basic device, PKE32 basic device
Unité de commande électronique pour la protection du moteur selon IEC60947-4-1 pour l’appareil de base PKE12 / PKE32, protection électronique contre les surcharges à large plage (4:1), protection contre les pannes de phase et les déséquilibres, classe de déclenchement réglable. Interface pour la connexion à SmartWire-DT. Homologation ATEX
Appareillage industriel basse tension > Bloc déclencheur pour disjoncteur de puissance
Interrupteurs de protection de moteur électroniques
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series PKE Trip block
Catalog Number
121728
Model Code
PKE-XTUA-4
EAN
4015081195381
Product Length/Depth
41.6 mm
Product Height
64.2 mm
Product Width
45 mm
Product Weight
0.086 kg
Certifications
UL 508
VDE 0660
CSA Class No.: 3211-05
UL File No.: E36332
CE
UL Category Control No.: NLRV
IEC/EN 60947-4-1
UL
CSA-C22.2 No. 14-10
IEC/EN 60947
CSA File No.: 165628
CSA
VDE 0660
CSA Class No.: 3211-05
UL File No.: E36332
CE
UL Category Control No.: NLRV
IEC/EN 60947-4-1
UL
CSA-C22.2 No. 14-10
IEC/EN 60947
CSA File No.: 165628
CSA
Catalog Notes
This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.
Features & Functions
Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Functions
Motor protection for heavy starting duty
Overload release
Motor protection
Overload release
Motor protection
Number of poles
Three-pole
General
Current flow times - min
900 (Class 15) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
500 (Class 5) AC-4 cycle operation, Main conducting paths
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
700 (Class 10) AC-4 cycle operation, Main conducting paths
1000 (Class 20) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
500 (Class 5) AC-4 cycle operation, Main conducting paths
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
700 (Class 10) AC-4 cycle operation, Main conducting paths
1000 (Class 20) AC-4 cycle operation, Main conducting paths
Cut-out periods - min
≤ 500 ms, main conducting paths, AC-4 cycle operation
Degree of protection
Terminals: IP00
Device: IP20
Device: IP20
Operating frequency
60 Operations/h
Overload release current setting - min
1 A
Overload release current setting - max
4 A
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
-25 - 55 °C, Operating range
Voltage type
Self powered
Ambient conditions, mechanical
Shock resistance
25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
4 A
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
4 A
Supply voltage at AC, 50 Hz - min
690 V
Supply voltage at AC, 50 Hz - max
690 V
Short-circuit rating
Short-circuit release
Trip block fixed 15.5 x Ir
± 20% tolerance, Trip blocks
Delayed approx. 60 ms, Trip blocks
± 20% tolerance, Trip blocks
Delayed approx. 60 ms, Trip blocks
Switching capacity
Switching capacity at AC-3 (up to 690 V)
4 A
Magnet system
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Communication
Connection to SmartWire-DT
Yes
In conjunction with PKE-SWD-32 SmartWire DT PKE module
In conjunction with PKE-SWD-SP SmartWire DT PKE module
In conjunction with PKE-SWD-32 SmartWire DT PKE module
In conjunction with PKE-SWD-SP SmartWire DT PKE module
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Design verification
Equipment heat dissipation, current-dependent Pvid
0.6 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.2 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Finition de la protection du moteur (EF008234) | Déclencheur électronique |
| Nombre de pôles (EF001391) | 3 |
| Courant permanent nominal Iu (EF001389) | 4 A |
| Réglage de courant du déclencheur de surcharge (EF002336) | 1 A |
| Fonction déclencheur de court-circuit (EF001413) | Retardé |
| Avec fonction de protection contre les mises à la terre accidentelles (EF005601) | Non |
| Alimentation externe requise (EF003292) | Non |
| Largeur (EF000008) | 45 mm |
| Hauteur (EF000040) | 64.2 mm |
| Profondeur (EF000049) | 41.6 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| PKE-XTUA-4 Y7-121728 121728 ES_158241.pdf | 994 Kbytes |
|
