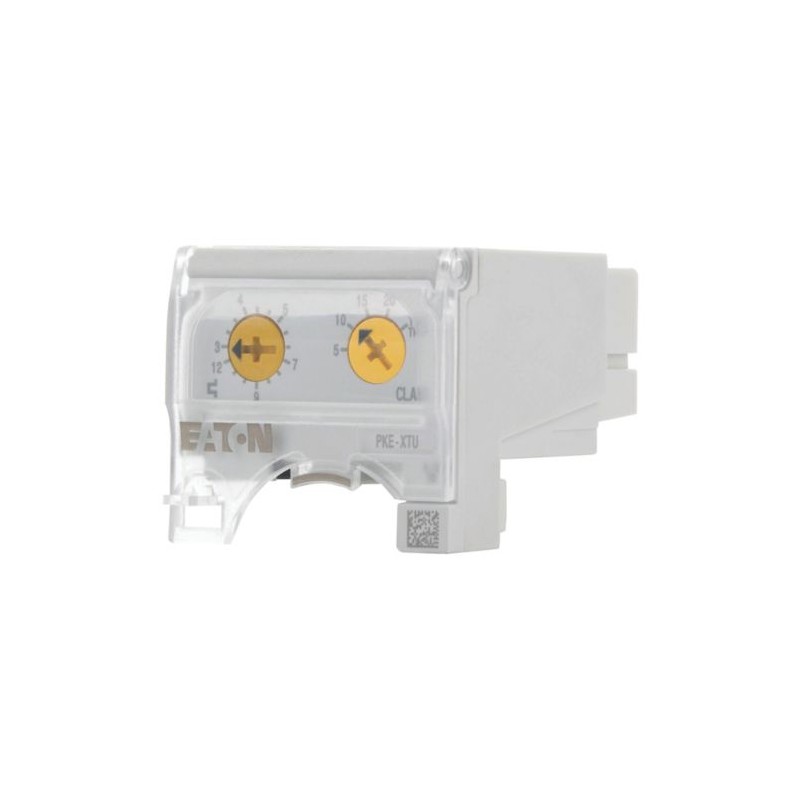

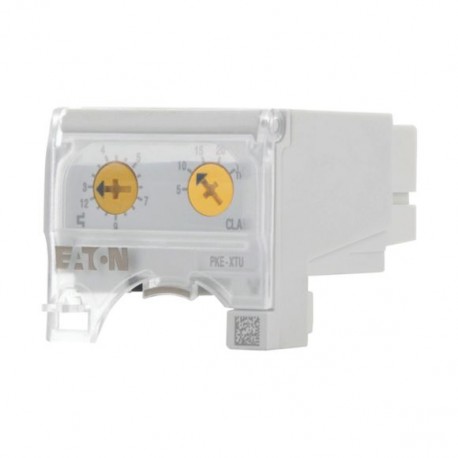

PKE-XTUA-12 121729 Y7-121729 EATON ELECTRIC Bloc de déclenchement, 3-12A, possibilité de mise en réseau, pro.. Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

PKE-XTUA-12 121729 Y7-121729 EATON ELECTRIC Bloc de déclenchement, 3-12A, possibilité de mise en réseau, pro..

PKE-XTUA-12

121729

Y7-121729

EATON-MOELLER

Bloc de déclenchement, 3-12A, possibilité de mise en réseau, protection des moteurs

PKE-XTUA-12

Eaton Moeller® series PKE Trip block, 3 - 12 A, Motor protection, Connection to SmartWire-DT: yes, For use with: PKE12 basic device, PKE32 basic device

Unité de commande électronique pour la protection du moteur selon IEC60947-4-1 pour l’appareil de base PKE12 / PKE32, protection électronique contre les surcharges à large plage (4:1), protection contre les pannes de phase et les déséquilibres, classe de déclenchement réglable. Interface pour la connexion à SmartWire-DT pour le guidage et la commande décentralisés (état, signaux de déclenchement, consommation d’énergie). Appareil du marché mondial, accréditation ATEX

Plus de détails


Appareillage industriel basse tension > Bloc déclencheur pour disjoncteur de puissance

Interrupteurs de protection de moteur électroniques

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $191.50
Prix unitaire: $191.50
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series PKE Trip block
Catalog Number
121729
Model Code
PKE-XTUA-12
EAN
4015081195398
Product Length/Depth
41.6 mm
Product Height
64.2 mm
Product Width
45 mm
Product Weight
0.086 kg
Certifications
CE
CSA-C22.2 No. 14-10
VDE 0660
CSA
IEC/EN 60947-4-1
UL
UL Category Control No.: NLRV
IEC/EN 60947
UL File No.: E36332
CSA Class No.: 3211-05
UL 508
CSA File No.: 165628
Catalog Notes
This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.

Features & Functions

Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Functions
Motor protection for heavy starting duty
Motor protection
Overload release
Number of poles
Three-pole

General

Current flow times - min
Note: Going below the minimum current flow time can cause overheating of the load (motor).
700 (Class 10) AC-4 cycle operation, Main conducting paths
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
500 (Class 5) AC-4 cycle operation, Main conducting paths
1000 (Class 20) AC-4 cycle operation, Main conducting paths
900 (Class 15) AC-4 cycle operation, Main conducting paths
Cut-out periods - min
≤ 500 ms, main conducting paths, AC-4 cycle operation
Degree of protection
Terminals: IP00
Device: IP20
Operating frequency
60 Operations/h
Overload release current setting - min
3 A
Overload release current setting - max
12 A
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Temperature compensation
-25 - 55 °C, Operating range
-5 - 40 °C to IEC/EN 60947, VDE 0660
Voltage type
Self powered

Ambient conditions, mechanical

Shock resistance
25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
12 A
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
12 A
Supply voltage at AC, 50 Hz - min
690 V
Supply voltage at AC, 50 Hz - max
690 V

Short-circuit rating

Short-circuit release
Trip block fixed 15.5 x Ir
± 20% tolerance, Trip blocks
Delayed approx. 60 ms, Trip blocks

Switching capacity

Switching capacity at AC-3 (up to 690 V)
12 A

Magnet system

Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Communication

Connection to SmartWire-DT
In conjunction with PKE-SWD-SP SmartWire DT PKE module
In conjunction with PKE-SWD-32 SmartWire DT PKE module
Yes

Contacts

Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

Design verification

Equipment heat dissipation, current-dependent Pvid
0.9 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.3 W
Rated operational current for specified heat dissipation (In)
12 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 121729 Appareillage industriel basse tension (EC000617)
Caractéristique Valeur
Finition de la protection du moteur (EF008234) Déclencheur électronique
Nombre de pôles (EF001391) 3
Courant permanent nominal Iu (EF001389) 12 A
Réglage de courant du déclencheur de surcharge (EF002336) 3 A
Fonction déclencheur de court-circuit (EF001413) Retardé
Avec fonction de protection contre les mises à la terre accidentelles (EF005601) Non
Alimentation externe requise (EF003292) Non
Largeur (EF000008) 45 mm
Hauteur (EF000040) 64.2 mm
Profondeur (EF000049) 41.6 mm

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKE-XTUA-12 Y7-121729 121729 ES_158241.pdf 994 Kbytes PKE-XTUA-12 Y7-121729 121729 ES_158241.pdf
