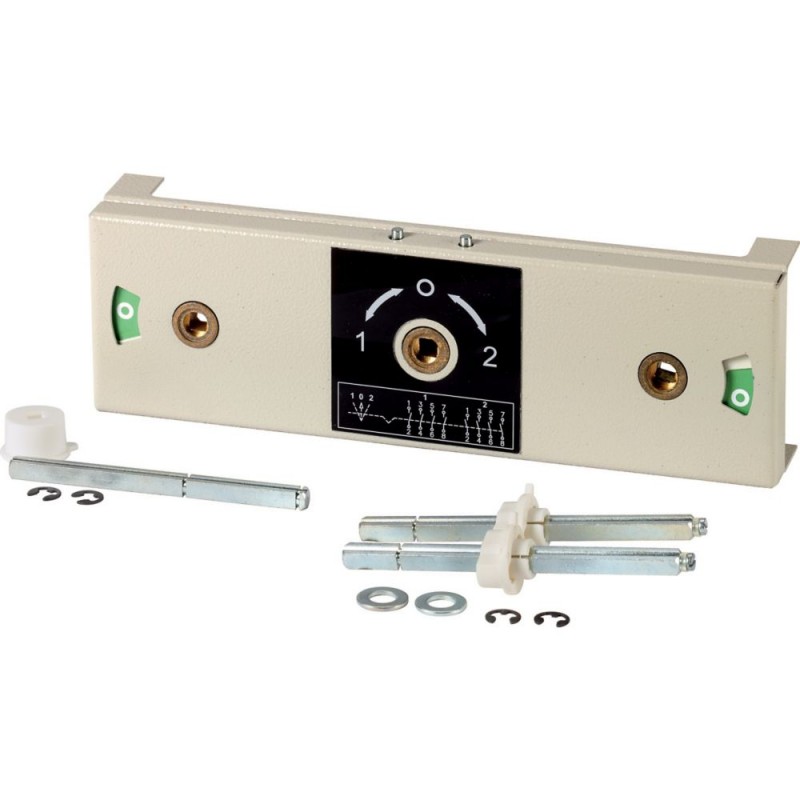

CODMV160N 1314314 EATON ELECTRIC Mécanisme de commutation, pour 2xDMVN160N Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

CODMV160N 1314314 EATON ELECTRIC Mécanisme de commutation, pour 2xDMVN160N

CODMV160N

1314314

Y8-1314314

EATON-MOELLER

Mécanisme de commutation, pour 2xDMVN160N

CODMV160N

Eaton DMV Change-Over Mechanism, for 2xDMVN160N

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

DUMECO Interrupteurs-sectionneurs

* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $165.73
Prix unitaire: $165.73

Quantité Prix
1+$165.73
2+$146.47
4+$134.19
5+$131.28
7+$129.52
*Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

En savoir plus



Spécifications générales

Product Name
Eaton DMV Accessory Change-over mechanism
Catalog Number
1314314
Model Code
CODMV160N
EAN
8711426103498
Product Length/Depth
275 mm
Product Height
50 mm
Product Width
90 mm
Product Weight
0.9 kg
Compliances
CE
Catalog Notes
Changeover switch 1 - 0 - 2

Spécifications du produit

Type
Changeover mechanism
Accessories
Without switch, drive shaft, and rotary handle.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Converter
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W

Datasheet - PDF
