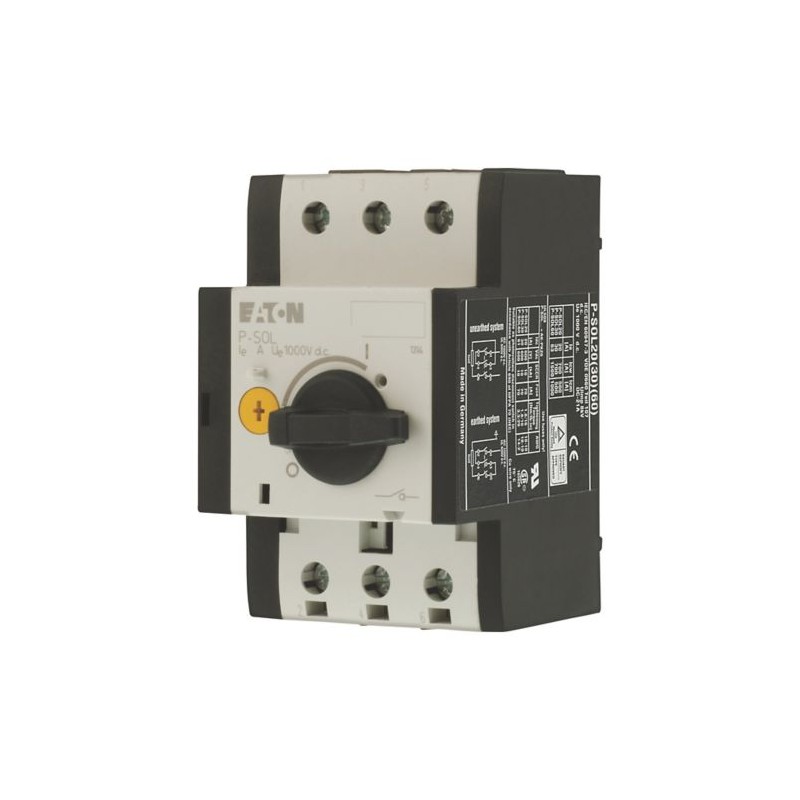

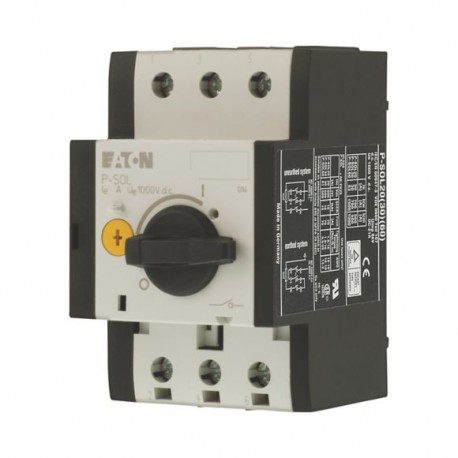

P-SOL30 120935 Y7-120935 EATON ELECTRIC Interrupteur-sectionneur, DC, 30A
P-SOL30
120935
Y7-120935
EATON-MOELLER
Interrupteur-sectionneur, DC, 30A
P-SOL30
Eaton Moeller® series P-SOL Switch-disconnector, DC current, 25A
Interrupteur-sectionneur, Normes : IEC/EN 60947-3, Certificat TÜV, UL 508, CSA-C22.2 n° 14-10
Appareillage industriel basse tension > Interrupteur-sectionneur
Systèmes photovoltaïques Aparamenta
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series P-SOL Switch-disconnector
Catalog Number
120935
Model Code
P-SOL30
EAN
4015081187652
Product Length/Depth
93 mm
Product Height
76 mm
Product Width
58 mm
Product Weight
0.285 kg
Certifications
UL Category Control No.: NRNT2
CSA-C22.2 No. 14-10
UL 508
IEC/EN 60947-3
CE
CSA Class No.: 3211-05
IEC60439-1
CSA File No.: 165628
TÜV-certified
UL File No.: E338590
UL Recognized
CSA
CSA-C22.2 No. 14-10
UL 508
IEC/EN 60947-3
CE
CSA Class No.: 3211-05
IEC60439-1
CSA File No.: 165628
TÜV-certified
UL File No.: E338590
UL Recognized
CSA
Features & Functions
Actuator color
Black
Actuator type
Turn button
Design
Open
Features
Isolating characteristics
Fitted with:
Voltage release optional
Number of poles
Two-pole
General
Degree of protection
NEMA Other
Degree of protection (front side)
IP20
Lifespan, electrical
1,500 Operations
Lifespan, mechanical
100,000 Operations
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Mounting position
As required
Operating frequency
120 Operations/h
Product Category
Switchgear for photovoltaic systems
Protection class
2
Suitable for
SCCR: 10 kA (600 V DC, 70 A max. fuse), (UL/CSA)
Distribution board installation
Ground mounting
Intermediate mounting
Distribution board installation
Ground mounting
Intermediate mounting
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity
18 - 14 AWG, solid or stranded
1 x (1 - 6) mm², flexible with ferrule to DIN 46228
2 x (1 - 6) mm², flexible with ferrule to DIN 46228
1 x (1 - 6) mm², flexible with ferrule to DIN 46228
2 x (1 - 6) mm², flexible with ferrule to DIN 46228
Electrical rating
Rated operational current (Ie) at DC-21A
26 A
Rated operational power at AC-23A, 400 V, 50 Hz
0 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0 kW
Rated uninterrupted current (Iu)
30 A
Resistance
5 mΩ (internal)
Short-circuit rating
Rated conditional short-circuit current (Iq)
0 kA
Rated short-circuit making capacity (Icm)
0.32 kA (up to 440 V, 50/60 Hz)
Rated short-time withstand current (Icw)
0.36 kA
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Design verification
Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
25 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Finition interrupteur général (EF006981) | Non |
| Finition interrupteur de maintenance/réparation (EF006986) | Non |
| Finition interrupteur de sécurité (EF006985) | Non |
| Finition interrupteur de dispositif d'arrêt d'urgence (EF006959) | Non |
| Finition de l'inverseur (EF009408) | Non |
| Nombre de commutateurs (EF005586) | 1 |
| Tension de fonctionnement normale (EF001435) | 690 V |
| Courant permanent nominal Iu (EF001389) | 30 A |
| Courant permanent nominal, CA-21, 400 V (EF011777) | 0 A |
| Courant permanent nominal , CA-21, 400 V (EF009165) | 0 A |
| Puissance de fonctionnement nominale, CA-3, 400 V (EF001364) | 0 kW |
| Courant nominal de courte durée admissible Icw (EF007050) | 0.36 kA |
| Puissance de fonctionnement nominale, CA-23, 400 V (EF007027) | 0 kW |
| Puissance de commutation à 400 V (EF009166) | 30 kW |
| Intensité de court-circuit nominale conditionnelle Iq (EF001444) | 0 kA |
| Nombre de pôles (EF001391) | 2 |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 0 |
| Commande motorisée en option (EF007386) | Non |
| Commande motorisée intégrée (EF006697) | Non |
| Déclencheur voltmétrique en option (EF007491) | Oui |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Adapté à une fixation frontale à 4 trous (EF007247) | Non |
| Adapté à une fixation frontale centrale (EF007248) | Non |
| Adapté à un montage en distributeur (EF007262) | Oui |
| Adapté à un montage intermédiaire (EF007264) | Oui |
| Couleur de l'élément d'actionnement (EF007167) | Noir |
| Finition de l'élément d'actionnement (EF006976) | Type de dispositif d'actionnement |
| Verrouillable (EF006281) | Non |
| Type de raccordement du circuit principal (EF006819) | Bride de serrage |
| Avec un câblage préparé (EF016444) | Non |
| Classe de protection (IP), face avant (EF003118) | IP20 |
| Classe de protection (NEMA) (EF011959) | Autre |
| Largeur (EF000008) | 58 mm |
| Hauteur (EF000040) | 76 mm |
| Profondeur (EF000049) | 93 mm |
