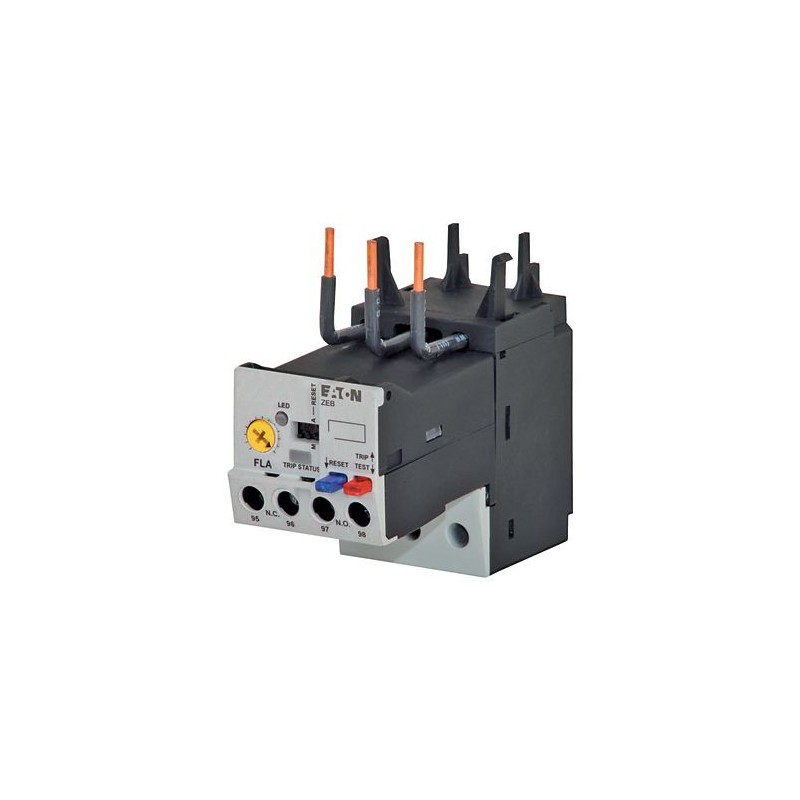

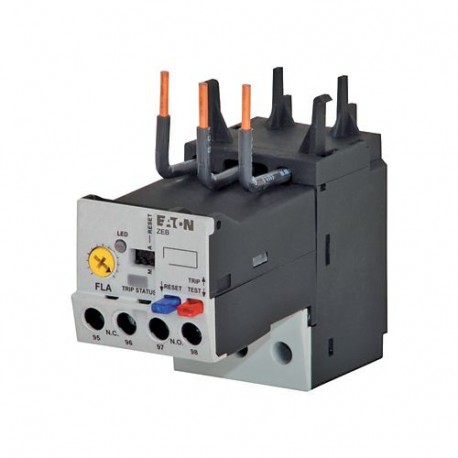

ZEB32-20-GF 136492 Y7-136492 EATON ELECTRIC Relais de surcharge, électronique, 4-20A, +protection contre les..
ZEB32-20-GF
136492
Y7-136492
EATON-MOELLER
Relais de surcharge, électronique, 4-20A, +protection contre les défauts à la terre
ZEB32-20-GF
Eaton Moeller® series ZEB Overload relay, Direct mounting, Earth-fault protection: with, Ir= 4 - 20 A, 1 N/O, 1 N/C ZEB32-20-GF
Relais de surcharge, Gamme de produits : Relais de surcharge électroniques, Sensibilité aux pannes de phase : IEC/EN 60947, VDE 0660 partie 102, Description : Bouton de test/arrêt, Bouton-poussoir de réinitialisation, Réinitialisation manuelle/automatique sélectionnable, Protection en cas de démarrage sous charge (classe 10 à classe 20), Type de montage : Montage direct, Contacts auxiliaires N/O = Normalement ouvert : 1 N/O, Contacts auxiliaires N/C = Normalement fermé : 1 N/C, À utiliser avec : DILM17, DILM25, DILM32, DILM38, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, Normes : IEC/EN 60947, VDE 0660, UL, CSA, Degré de protection : IP20
Appareillage industriel basse tension > Relais électronique de protection contre les surcharges
Interrupteurs de protection de moteur électroniques
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series ZEB Electronic overload relay
Catalog Number
136492
Model Code
ZEB32-20-GF
EAN
4015081332724
Product Length/Depth
108 mm
Product Height
110 mm
Product Width
45 mm
Product Weight
0.271 kg
Certifications
CSA
UL
UL 508
IEC/EN 60947-4-1
CSA File No.: 2290956
CSA-C22.2 No. 14
UL Category Control No.: NKCR
CSA Class No.: 3211-03
VDE 0660
CE
IEC/EN 60947
UL File No.: E1230
UL
UL 508
IEC/EN 60947-4-1
CSA File No.: 2290956
CSA-C22.2 No. 14
UL Category Control No.: NKCR
CSA Class No.: 3211-03
VDE 0660
CE
IEC/EN 60947
UL File No.: E1230
Catalog Notes
Rated operational current: Switch-on and switch-off conditions based on DC-13, time constant as specified.
Features & Functions
Earth fault protection
Yes
Trip at approx. > 1.5 x Ir in 1 s
Trip at approx. > 0.5 x Ir in 2 s
Trip at approx. > 1.5 x Ir in 1 s
Trip at approx. > 0.5 x Ir in 2 s
Features
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Functions
Filament bulb (24 V)
General
Class
Adjustable
Degree of protection
IP20
Mounting method
Direct mounting
Direct attachment
Direct attachment
Overload release current setting - min
4 A
Overload release current setting - max
20 A
Overvoltage category
III
Pollution degree
3
Product Category
Electronic overload relays ZEB
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V (auxiliary circuits)
6000 V AC
6000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms
Mechanical, According to IEC/EN 60068-2-27
Mechanical, According to IEC/EN 60068-2-27
Suitable for
Branch circuits, (UL/CSA)
Voltage type
Self powered
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
65 °C
Ambient operating temperature (enclosed) - max
65 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid)
1 x (1.5 - 16) mm², Main cables
2 x (0.75 - 4) mm², Control circuit cables
2 x (0.75 - 4) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
1 x (14 - 4), Main cables
2 x (18 - 12), Control circuit cables
2 x (18 - 12), Control circuit cables
Stripping length (main cable)
13 mm
Stripping length (control circuit cable)
8 mm
Screw size
M3.5, Terminal screw, Control circuit cables
Screwdriver size
1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
7 lb-in, Screw terminals
0.8 - 1.2 Nm, Screw terminals, Control circuit cables
0.8 - 1.2 Nm, Screw terminals, Control circuit cables
Electrical rating
Conventional thermal current ith of auxiliary contacts (1-pole, open)
5 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie) at AC-15, 120 V
1.5 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
0.9 A
Rated operational current (Ie) at DC-13, 110 V
0.4 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational current (Ie) at DC-13, 24 V
0.9 A
Rated operational current (Ie) at DC-13, 60 V
0.75 A
Rated operational voltage (Ue) at AC - max
690 V
Short-circuit protection rating
Max. 6 A gG/gL, fuse, Without welding, Auxiliary and control circuits
Short-circuit current rating (high fault at 600 V)
100 kA, Fuse, SCCR (UL/CSA)
60 A, Class J, max. Fuse, SCCR (UL/CSA)
60 A, Class J, max. Fuse, SCCR (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
R300, DC operated (UL/CSA)
B600, AC operated (UL/CSA)
B600, AC operated (UL/CSA)
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Design verification
Equipment heat dissipation, current-dependent Pvid
2.3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.77 W
Rated operational current for specified heat dissipation (In)
20 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
ETIM only
Electrical connection type of main circuit
Screw connection
Adjustable current range - min
4 A
Adjustable current range - max
20 A
Reset function
Push-button
Automatic
Automatic
| Caractéristique | Valeur |
|---|---|
| Type de montage (EF000003) | Montage direct |
| Type de raccordement du circuit principal (EF006819) | Borne à vis |
| Plage de courant ajustable (EF008211) | 4 A |
| Alimentation externe requise (EF003292) | Non |
| Tension d'alimentation de courant nominal à CA 50 Hz (EF003978) | 0 V |
| Tension d'alimentation de courant nominal à CA 60 Hz (EF003979) | 0 V |
| Tension d'alimentation de courant nominal CC (EF003980) | 0 V |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 1 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 1 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 0 |
| Type de tension de fonctionnement (EF005294) | CA |
| Tension de fonctionnement CA 50 Hz (EF008206) | 230 V |
| Tension de fonctionnement CA 60 Hz (EF008207) | 230 V |
| Tension de fonctionnement CC (EF008208) | 0 V |
| Classe de déclenchement (EF006668) | Ajustable |
| Fonction de réinitialisation automatique (EF011941) | Oui |
| Entrée de fonction de réinitialisation (EF011940) | Non |
| Bouton-poussoir de réinitialisation automatique (EF011942) | Oui |
| Largeur (EF000008) | 45 mm |
| Hauteur (EF000040) | 110 mm |
| Profondeur (EF000049) | 108 mm |
