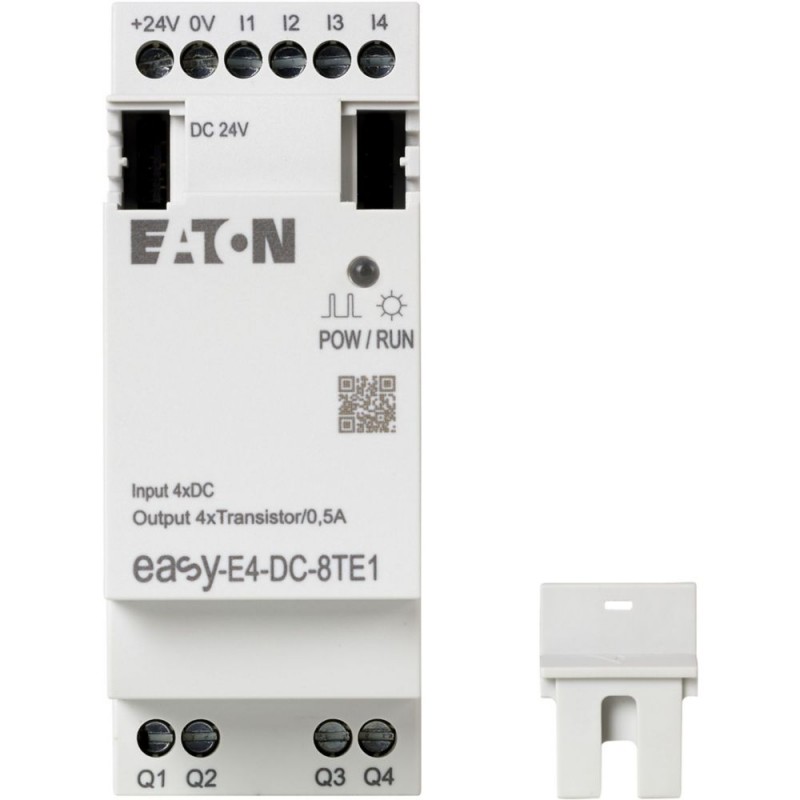

EASY-E4-DC-8TE1 197219 Y7-197219 EATON ELECTRIC Extension E/S, Utilisation avec easyE4, 24 V DC, Entrées Ext..
EASY-E4-DC-8TE1
197219
Y7-197219
EATON-MOELLER
Extension E/S, Utilisation avec easyE4, 24 V DC, Entrées Extension (nombre) numérique : 4, borne à vis
EASY-E4-DC-8TE1
Eaton Moeller® series EASY I/O expansion, For use with easyE4, 24 V DC, Inputs expansion (number) digital: 4, screw terminal
Extension d’E/S, Tension d’alimentation : 24 V DC, Utilisable via easyConnect, 4, Position de montage : Verticale ou horizontale, Type de protection (IEC/EN 60529, EN50178, VBG 4) : IP20, Normes : EN 61000-6-2, EN 61000-6-3, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-30, IEC 61131-2, EN 61010, EN 50178, cULus selon UL 61010, CSA C22.2 No.61010
Commande industrielle API > Module logique
Easy E4 Nanocontrôleurs
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series EASY I/O expansion
Catalog Number
197219
Model Code
EASY-E4-DC-8TE1
EAN
4015080892809
Product Length/Depth
58 mm
Product Height
90 mm
Product Width
36 mm
Product Weight
0.1 kg
Certifications
CSA-C22.2 No. 61010
IEC/EN 61000-6-3
IEC 60068-2-27
IEC 60068-2-30
IEC 60068-2-6
EN 50178
IEC/EN 61000-4-2
IEC/EN 61000-6-2
IEC/EN 61131-2
CULus per UL 61010
EN 61010
UL Listed
UL Category Control No.: NRAQ, NRAQ7
UL File No.: E205091
DNV GL
CE
UL hazardous location class I
UL hazardous location division 2
UL hazardous location group A (acetylene)
UL hazardous location group B (hydrogen)
UL hazardous location group C (ethylene)
UL hazardous location group D (propane)
IEC/EN 61000-6-3
IEC 60068-2-27
IEC 60068-2-30
IEC 60068-2-6
EN 50178
IEC/EN 61000-4-2
IEC/EN 61000-6-2
IEC/EN 61131-2
CULus per UL 61010
EN 61010
UL Listed
UL Category Control No.: NRAQ, NRAQ7
UL File No.: E205091
DNV GL
CE
UL hazardous location class I
UL hazardous location division 2
UL hazardous location group A (acetylene)
UL hazardous location group B (hydrogen)
UL hazardous location group C (ethylene)
UL hazardous location group D (propane)
Caractéristiques et fonctions
Features
Expandable
Expansion device
Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1: Q1 to Q4
Expansion device
Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1: Q1 to Q4
Functions
Thermal cutout
Indication
LCD-display base unit used as Output status indication of Transistor outputs
LCD-display base unit used as status indication of Digital inputs 24 V DC
LCD-display base unit used as status indication of Digital inputs 24 V DC
Généralités
Degree of protection
IP20
Duty factor
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
100 % (Inductive load to EN 60947-5-1, With external suppressor circuit)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
100 % (Inductive load to EN 60947-5-1, With external suppressor circuit)
100 % (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
Insulation resistance
According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Mounting method
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Wall mounting/direct mounting
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Front build in possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Wall mounting/direct mounting
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Front build in possible
Operating frequency
Dependent on the cycle- and transmission-time of the expansion devices
Depending on the suppressor circuit (Inductive load to EN 60947-5-1, With external suppressor circuit, Max. switching frequency, max. duty factor)
Dependent on the cycle time of the basic device
Depending on the suppressor circuit (Inductive load to EN 60947-5-1, With external suppressor circuit, Max. switching frequency, max. duty factor)
Dependent on the cycle time of the basic device
Overvoltage category
III
Pollution degree
2
Product category
Control relays easyE4
Protocol
MODBUS
TCP/IP
TCP/IP
Residual current
0.1 mA (on signal "1" per channel)
Residual ripple
≤ 5 %
5 % (transistor outputs)
5 % (transistor outputs)
Software
EASYSOFT-SWLIC/easySoft7
Type
easyE4 extension
Voltage type
DC
Condtions ambiantes et mécaniques
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
Horizontal
Vertical
Vertical
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
57 - 150 Hz, 2 g constant acceleration
According to IEC/EN 60068-2-6
10 - 57 Hz, 0.15 mm constant amplitude
According to IEC/EN 60068-2-6
10 - 57 Hz, 0.15 mm constant amplitude
Conditions environnementales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201
Condensation: prevent with appropriate measures
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)
Compatibilité électromagnétiques
Air discharge
8 kV
Burst impulse
2 kV, Signal cable
2 kV, Supply cable
According to IEC/EN 61000-4-4
2 kV, Supply cable
According to IEC/EN 61000-4-4
Contact discharge
6 kV
Electromagnetic fields
10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class B (EN 61000-6-3)
Surge rating
1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC
0.5 kV, Supply cables, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
0.5 kV, Supply cables, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
Voltage dips
20 ms
≤ 10 ms, Bridging voltage dips
≤ 10 ms, Bridging voltage dips
Sections raccordables
Terminal capacity
0.2 - 4 mm² (AWG 22 - 12), solid
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule
Screwdriver size
3.5 x 0.8 mm, Terminal screw
Tightening torque
0.6 Nm, Screw terminals
Caractéristiques électriques
Conventional thermal current ith of auxiliary contacts (1-pole, open)
0.5 A
Heat dissipation
3.4 W (at 24 V DC)
Inrush current
12.5 A (for 6 ms)
Power consumption
1 W
Rated operational voltage
20.4 - 28.8 V DC
20.4 - 28.8 V DC (Transistor outputs)
24 V DC (-15 %/+ 20 % - power supply)
24 V DC (transistor outputs)
24 V DC (digital inputs)
20.4 - 28.8 V DC (Transistor outputs)
24 V DC (-15 %/+ 20 % - power supply)
24 V DC (transistor outputs)
24 V DC (digital inputs)
Supply current
18/32 mA, Normally⁄max., On 0 signal, Transistor outputs
24/44 mA, Normally⁄max., On 1 signal, Transistor outputs
24/44 mA, Normally⁄max., On 1 signal, Transistor outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Résistance aux courts-circuits
Short-circuit current
6.8 A, Transistor outputs
Short-circuit protection
Yes, electronic (Q1 - Q4), Transistor outputs
≥ 1A (T), Fuse, Power supply
≥ 1A (T), Fuse, Power supply
Short-circuit tripping current
0.7 ≤ Ie ≤ 1.7 per output, For Ra ≤ 10 mΩ, Depending on number of active channels and their load, Transistor outputs
Communication
Connection type
Screw terminal
Câble
Cable length
100 m, unscreened, Digital inputs 24 V DC
Entrée/Sortie
Delay time
0.2 ms typ., Digital inputs 24 V DC (I1 - I4), Delay time from 1 to 0, Debounce OFF
0.015 ms typ., Digital inputs 12 V DC (I1 - I8), Delay time from 1 to 0, Debounce OFF
0.015 ms typ., Digital inputs 12 V DC (I1 - I8), Delay time from 0 to 1, Debounce OFF
20 ms, Digital Inputs 12 V DC, Delay time from 0 to 1, Debounce ON
20 ms, Digital Inputs 12 V DC, Delay time from 1 to 0, Debounce ON
0.1 ms typ., Digital inputs 24 V DC (I1 - I4), Delay time from 0 to 1, Debounce OFF
0.015 ms typ., Digital inputs 12 V DC (I1 - I8), Delay time from 1 to 0, Debounce OFF
0.015 ms typ., Digital inputs 12 V DC (I1 - I8), Delay time from 0 to 1, Debounce OFF
20 ms, Digital Inputs 12 V DC, Delay time from 0 to 1, Debounce ON
20 ms, Digital Inputs 12 V DC, Delay time from 1 to 0, Debounce ON
0.1 ms typ., Digital inputs 24 V DC (I1 - I4), Delay time from 0 to 1, Debounce OFF
Input current
40 mA
Input voltage
Signal 0: ≤ 5 V DC (I1 - I4, Digital inputs, 24 V DC)
Signal 1: ≥ 15 V DC (I1 - I4, Digital inputs, 24 V DC)
Signal 1: ≥ 15 V DC (I1 - I4, Digital inputs, 24 V DC)
Lamp load
Max. 3 W (without Rv per channel)
Number of inputs (analog)
0
Number of inputs (digital)
4
Number of outputs (analog)
0
Number of outputs (digital)
4
Output
2 A, Max. total current, Outputs
4 Transistor Outputs
Parallel connection of max. 4 Transistor outputs
Voltage
Current
4 Transistor Outputs
Parallel connection of max. 4 Transistor outputs
Voltage
Current
Output voltage
U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs)
Max. 2.5 V (at status 0 per channel, transistor outputs)
Max. 2.5 V (at status 0 per channel, transistor outputs)
Utilization factor
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, T0.95 = 15 ms, R = 48 Ω, L = 0.24 H)
1 (Inductive load to EN 60947-5-1, With external suppressor circuit)
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
1 (Inductive load to EN 60947-5-1, With external suppressor circuit)
0.25 (Inductive load to EN 60947-5-1, Without external suppressor circuit, DC-13, T0.95 = 72 ms, R = 48 Ω, L = 1.15 H)
Sécurité
Explosion safety category for gas
None
Potential isolation
Between Digital inputs 24 V DC and expansion devices: yes
Between Transistor outputs: no
Between Digital inputs 24 V DC: no
Between Digital inputs 24 V DC and Power supply: no
Between Digital inputs 24 V DC and Outputs: no
Between Transistor outputs and expansion devices: yes
Between Transistor outputs and Power supply: no
Between Transistor outputs: no
Between Digital inputs 24 V DC: no
Between Digital inputs 24 V DC and Power supply: no
Between Digital inputs 24 V DC and Outputs: no
Between Transistor outputs and expansion devices: yes
Between Transistor outputs and Power supply: no
Protection against polarity reversal
Yes, for supply voltage (Siemens MPI optional)
For transistor outputs (Caution: A short circuit will result if 0 V/earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles)
For transistor outputs (Caution: A short circuit will result if 0 V/earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles)
Explosion safety category for dust
None
Vérification de la conception
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Tension d'alimentation CA 50 Hz (EF007532) | 0 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 0 V |
| Tension d'alimentation CC (EF007534) | 20.4 V |
| Type de tension d'alimentation (EF002991) | CC |
| Courant de commutation (EF000188) | 0.5 A |
| Puissance absorbée (EF000346) | 1 W |
| Nombre d'entrées analogiques (EF001994) | 0 |
| Nombre d'entrées numériques (EF001995) | 0 |
| Nombre d'entrées numériques (EF001992) | 4 |
| Nombre de sorties numériques (EF001993) | 4 |
| Avec sortie de relais (EF003198) | Non |
| Nombre d'interfaces matérielles Industrial Ethernet (EF003020) | 0 |
| Nombre d'interfaces matérielles PROFINET (EF006932) | 0 |
| Nombre d'interfaces matérielles en série RS-232 (EF003021) | 0 |
| Nombre d'interfaces matérielles en série RS-422 (EF003022) | 0 |
| Nombre d'interfaces matérielles en série RS-485 (EF003023) | 0 |
| Nombre d'interfaces matérielles en série TTY (EF003024) | 0 |
| Nombre d'interfaces matérielles USB (EF003025) | 0 |
| Nombre d'interfaces matérielles parallèles (EF003026) | 0 |
| Nombre d'interfaces matérielles Wireless (EF006933) | 0 |
| Nombre d'autres interfaces matérielles (EF003027) | 0 |
| Avec interface optique (EF003028) | Non |
| supporte le protocole pour EtherCAT (EF017564) | Non |
| Protocole pris en charge pour TCP/IP (EF003050) | Oui |
| Protocole pris en charge pour PROFIBUS (EF003052) | Non |
| Protocole pris en charge pour CAN (EF003053) | Non |
| Protocole pris en charge pour INTERBUS (EF003054) | Non |
| Protocole pris en charge pour ASI (EF003051) | Non |
| Protocole pris en charge pour KNX (EF003055) | Non |
| Protocole pris en charge pour Modbus (EF003057) | Oui |
| Protocole pris en charge pour Data-Highway (EF003058) | Non |
| Protocole pris en charge pour DeviceNet (EF003059) | Non |
| Protocole pris en charge pour SUCONET (EF003060) | Non |
| Protocole pris en charge pour LON (EF003017) | Non |
| Protocole pris en charge pour PROFINET IO (EF007525) | Non |
| Protocole pris en charge pour PROFINET CBA (EF007524) | Non |
| Protocole pris en charge pour SERCOS (EF006657) | Non |
| Protocole pris en charge pour Foundation Fieldbus (EF007522) | Non |
| Protocole pris en charge pour EtherNet/IP (EF007521) | Non |
| Protocole pris en charge pour AS-Interface Safety at Work (EF007519) | Non |
| Protocole pris en charge pour DeviceNet Safety (EF007520) | Non |
| Protocole pris en charge pour INTERBUS-Safety (EF006662) | Non |
| Protocole pris en charge pour PROFIsafe (EF007526) | Non |
| Protocole pris en charge pour SafetyBUS p (EF007527) | Non |
| Protocole pris en charge pour autres systèmes de bus (EF003062) | Non |
| Standard radio Bluetooth (EF007178) | Non |
| Standard radio WLAN 802.11 (EF007179) | Non |
| Standard radio GPRS (EF008523) | Non |
| Standard radio GSM (EF008524) | Non |
| Standard radio UMTS (EF008525) | Non |
| Maître IO-Link (EF007298) | Non |
| Capacité de redondance (EF003156) | Non |
| Avec affichage (EF000458) | Non |
| Classe de protection (IP) (EF005474) | IP20 |
| Appareil de base (EF007279) | Non |
| Évolutif (EF000119) | Oui |
| Appareil d'extension (EF007163) | Oui |
| Avec minuterie (EF000256) | Non |
| Montage possible sur barres profilées (EF003972) | Oui |
| Montage mural/direct possible (EF007020) | Oui |
| Encastrement frontal possible (EF007016) | Oui |
| Montage sur rack possible (EF007018) | Non |
| Adapté aux fonctions de sécurité (EF001597) | Non |
| SIL conformément à IEC 61508 (EF009889) | Sans |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Sans |
| Matériel associé (Ex ia) (EF004141) | Non |
| Matériel associé (Ex ib) (EF004142) | Non |
| Catégorie de protection contre les explosions pour le gaz (EF003997) | Sans |
| Catégorie de protection contre les explosions pour la poussière (EF003998) | Sans |
| certifié pour zone à risque UL classe I (EF017622) | Oui |
| certifié pour zone à risque UL classe II (EF017625) | Non |
| certifié pour zone à risque UL classe III (EF017627) | Non |
| certifié pour zone à risque UL division 1 (EF017628) | Non |
| certifié pour zone à risque UL division 2 (EF017629) | Oui |
| certifié pour zone à risque UL groupe A (acétylène) (EF017632) | Oui |
| certifié pour zone à risque UL groupe B (hydrogène) (EF017633) | Non |
| certifié pour zone à risque UL groupe C (éthylène) (EF017635) | Oui |
| certifié pour zone à risque UL groupe D (propane) (EF017636) | Oui |
| certifié pour zone à risque UL groupe E (poussière de métal) (EF017637) | Non |
| certifié pour zone à risque UL groupe F (poussière carbonée) (EF017638) | Non |
| certifié pour zone à risque UL groupe G (poussière non conductrice) (EF017639) | Non |
| Largeur (EF000008) | 36 mm |
| Hauteur (EF000040) | 90 mm |
| Profondeur (EF000049) | 58 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON EASY E4 EN.pdf | 2 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EASY-E4-DC-8TE1 Y7-197219 197219 FR_197219.pdf | 6 Mbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
