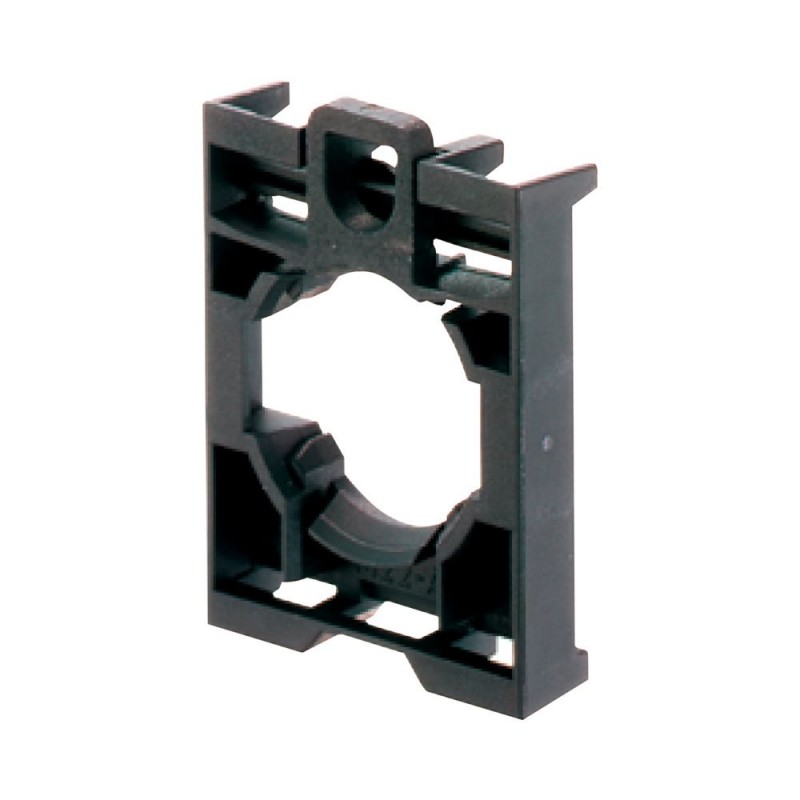

M22-A 216374 Y7-216374 EATON ELECTRIC Adaptateur de fixation Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

M22-A 216374 Y7-216374 EATON ELECTRIC Adaptateur de fixation

M22-A

216374

Y7-216374

EATON-MOELLER

Adaptateur de fixation

M22-A

Eaton Moeller® series M22 Mounting clamp

Pince de montage, support frontal pour 3 éléments de contact/LED

Plus de détails


Appareillage industriel basse tension > Adaptateur pour appareils de commande

Moyens de contrôle et de signalisation

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $2.73
Prix unitaire: $2.73
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series M22 Accessory Mounting clamp
Catalog Number
216374
Model Code
M22-A
EAN
4015082163747
Product Length/Depth
10 mm
Product Height
41 mm
Product Width
30 mm
Product Weight
0.003 kg
Certifications
UL
UL 508
UL Category Control No.: NKCR
IEC/EN 60947-5
UL File No.: E29184
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
CSA
CSA File No.: 012528
CSA-C22.2 No. 94-91

General

Type
Mounting clamp (front mounting) for 3-contact LED elements
Type
Mounting clamp (front mounting) for 3-contact LED elements

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Communication

Connection to SmartWire-DT
Yes
Connection type
Front fixing

Contacts

Force for positive opening - min
0 N

Design verification

Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216374 Appareillage industriel basse tension (EC001020)
Caractéristique Valeur
Diamètre d'encastrement (EF000943) 22 mm
Nombre d'appareils encastrables (EF000219) 1

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-A Y7-216374 216374 EN_289241.pdf 3 Mbytes M22-A Y7-216374 216374 EN_289241.pdf
