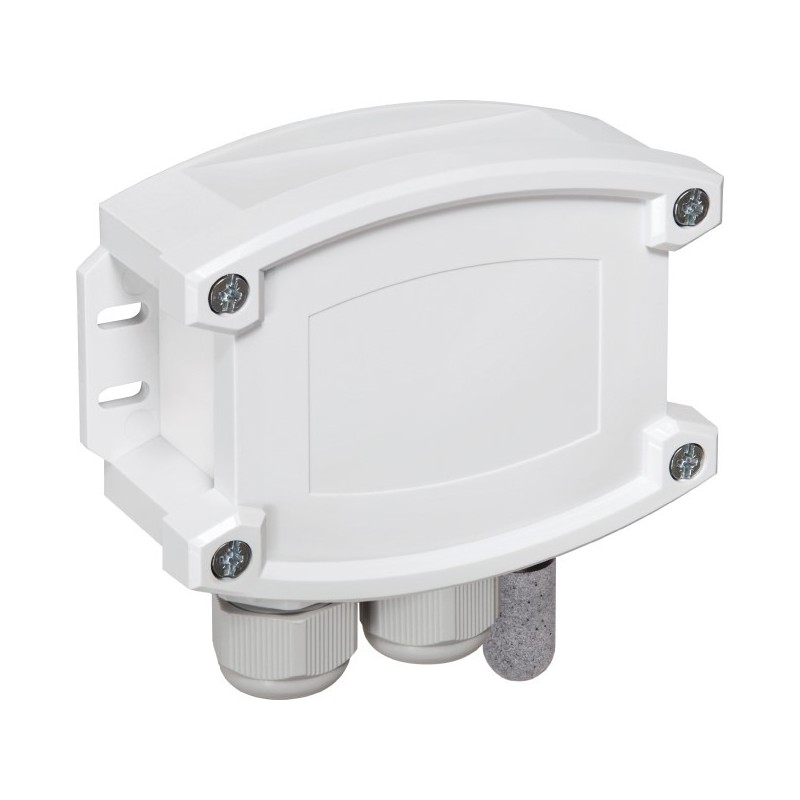

DANFOSS DRIVES 134B9411 Wall Sensor AFTF Temp & Humidity - Image 1

Les images sont à titre illustratif. Svp, révisez la fiche technique.

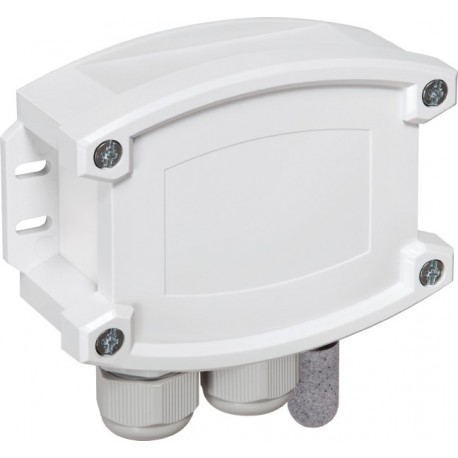

134B9411 Wall Sensor AFTF Temp & Humidity DANFOSS DRIVES Capteur mural AFTF Temp & Humidité

Code: 134B9411

Numéro de catalogue: Wall Sensor AFTF Temp & Humidity

Fabricant: DANFOSS DRIVES

Description:

Capteur mural AFTF Temp & Humidité
ON-WALL- HUMIDITY- AND TEMPERATURE SENSORS AFTF–MBCalibratable outside humidity and temperature sensor AFTF, detect therelative humidity (0…100% RH) and the temperature (–35...+80 °C),including various parameters in the humidity measurement. Applied inclean air and non-aggressive, dust-free environment. With a Modbusconnection in a resistant IP65 plastic housing and M20 cable gland forcable connection, with quick-locking screws and an exchangeable plasticsinter filter. International SI units (default) can be changed toimperial (via Modbus).Measuring range: 0...100 % RH (humidity) / – 35...+80 °C (temperature)Medium: clean air and non-aggressive, non-combustible gasesDeviation, humidity: typical ± 2.0 % (20.....+70 °C / –22...5 x 43.25 x 3.

Catégories:

  • DANFOSS DRIVES > OPTIONS ET ACCESSOIRES FC302 FC202 FC102 - DANFOSS DRIVES

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par DANFOSS DRIVES

  • En savoir plus
  • Commentaires
Garantie, réparation et dévolution.

Prix unitaire: 156,76 €

Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant).

Calculer le prix par quantité

QuantitéPrix

Délai standard: 1-2 semaines.

  • Ces délais sont estimatifs et peuvent varier une fois la commande de l'article traitée.

DERNIÈRE CONSULTÉS

EN SAVOIR PLUS

ON-WALL- HUMIDITY- AND TEMPERATURE SENSORS AFTF–MB
Calibratable outside humidity and temperature sensor AFTF, detect the
relative humidity (0…100% RH) and the temperature (–35...+80 °C),
including various parameters in the humidity measurement. Applied in
clean air and non-aggressive, dust-free environment. With a Modbus
connection in a resistant IP65 plastic housing and M20 cable gland for
cable connection, with quick-locking screws and an exchangeable plastic
sinter filter. International SI units (default) can be changed to
imperial (via Modbus).
Measuring range: 0...100 % RH (humidity) / – 35...+80 °C (temperature)
Medium: clean air and non-aggressive, non-combustible gases
Deviation, humidity: typical ± 2.0 % (20...80 % RH) at +25 °C, otherwise
± 3.0 %
Deviation, temperature: typical ± 0.4 K at +25 °C / ± 77 °F
Zero point offset: ± 10 % RH (humidity) / ± 5 °C (temperature)
Power: 24VAC (± 20%) / 15…36VDC - 24DC <1,2W
Operation temperature: –30...+70 °C / –22...+158 °F
T3-IP65 plastic housing with two M20 cable glands
Housing dimensions: 108 x 78.5 x 43.3 mm / 4.25 x 3.1 x 1.7 in

Détails du produit

Poids brut0.255 Kilogram
Poids Net0.166 Kilogram
Volume1.547 Liter
Numéro EAN5715253547091
Poids brut0.255 Kilogram
Poids Net0.166 Kilogram
Volume1.547 Liter
Numéro EAN5715253547091

OptionsControl related options
OptionsControl related options

FICHE TECHNIQUE - PDF
