Produit:MTZ18-4VM DANFOSS REFRIGERATION Compress...

Les images sont à titre illustratif. Svp, révisez la fiche technique.

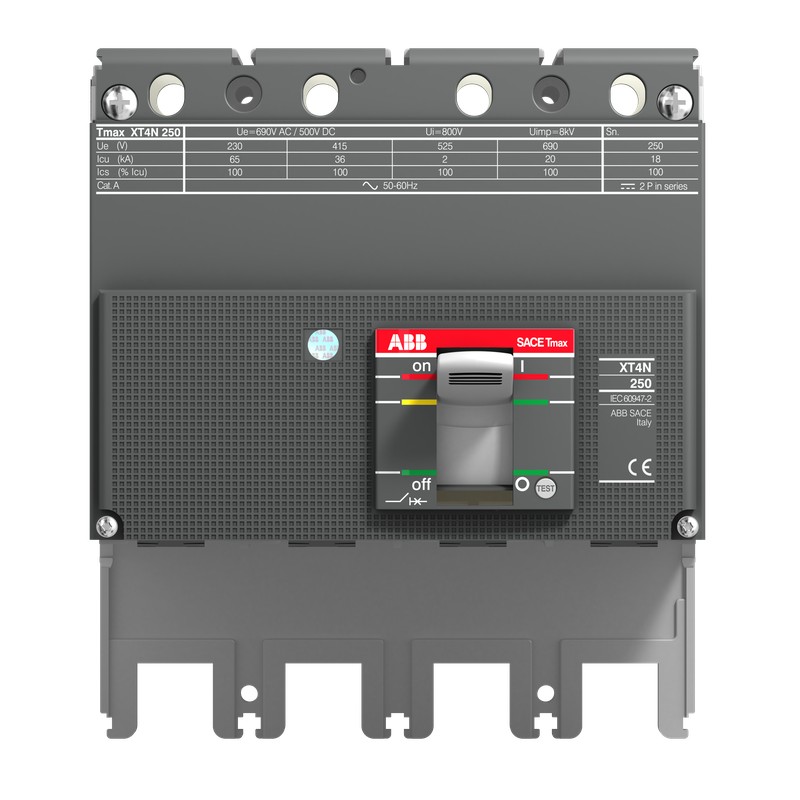

Référence: 1SDA068294R1
Fabricant: ABB
Description:
Catégories:
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ABB
DERNIÈRE CONSULTÉS
| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Oui |
| Valeur Circulaire | |
| Principes du Design Circulaire - Taux de Recyclabilité | Concu pour utiliser des ressources recyclables et réutilisables - Norme EN45555 - 56.30 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Instructions relatives à la fin de vie | 9AKK108468A2351 |
| Déchets destinés à l'enfouissement en décharge - Destination | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparence | |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Environnement | |
| Informations environnementales | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| Informations RoHS | 9AKK108466A1424 |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3123326c-8a97-4460-921f-2bc45dd71b6f Italy (IT) |
| SCIP simplifié | d3f49fee-a075-40b8-86a2-409cd2b3366e Croatia (HR) |
| 00a8dfcd-6786-422a-bb28-f5e73df312d9 Germany (DE) | |
| ccc17380-3def-4d65-b55a-84c49446be77 Estonia (EE) | |
| b86bf528-e065-43b8-8106-eb6f76cbe72b Belgium (BE) | |
| 469d5e55-7ff7-428d-8564-2ede20fc0787 France (FR) | |
| efdd6957-30b2-4e56-8293-01211fd6843a Poland (PL) | |
| 624bb414-afba-4778-8ef9-e01489937815 Portugal (PT) | |
| cccd3c11-db39-4761-ac20-172d3ea8c991 Germany (DE) | |
| f558dced-d8e3-44b0-9d0d-f00fbfb95f12 Sweden (SE) | |
| 685d4c97-daf2-4a74-9ba6-0468b92b8834 Germany (DE) | |
| 52327ae8-7f22-456d-adf1-740fd9400ec9 Denmark (DK) | |
| b9630a39-f8c9-4f2a-af05-446bde1af475 Czech Republic (CZ) | |
| 3647ac84-5a65-4342-8177-96aff9246bd3 Germany (DE) | |
| bb726ba7-e068-45aa-a0f8-cf19ccf35f43 France (FR) | |
| ee5d2666-eaa5-4e99-b0be-f66a500bebb6 Spain (ES) | |
| 0089c950-1d0f-4120-a895-2175c594f5b1 Belgium (BE) | |
| 5c9d06a5-614c-4949-8a2a-a98ea681fc84 Hungary (HU) | |
| 8190c43c-aafb-4908-84ef-4f2900d00968 Greece (GR) | |
| bcf322a6-fb33-4f1b-8f4c-6134e3f63fbd Poland (PL) | |
| 271868ed-09ee-4b94-bdd9-6cd44d3d4079 Germany (DE) | |
| 31b557a5-6ea0-4ca8-83c9-2c0775c723e5 Finland (FI) | |
| 1b206d16-0cd6-45e3-85af-4102e5b5bd65 Poland (PL) | |
| e0bc30d3-6cd9-40e3-a7d6-308cc442fa26 Netherlands (NL) | |
| 907aa1fd-1b6b-4fc2-a655-a3424d60c78f Norway (NO) | |
| cba70fe0-1489-4b8b-9e6c-ecff94c1bcba Sweden (SE) | |
| 93671f06-ceb9-495d-8e46-78115e1f3a2e Bulgaria (BG) | |
| 62b4ec83-3777-4229-9386-8ba26f92de4d Hungary (HU) | |
| Commande | |
| EAN | 8015644022051 |
| Quantité minimum | 1 pièce |
| Code douanier | 85362090 |
| Dimensions | |
| Produit Largeur Net | 140 mm |
| Produit Hauteur Net | 160 mm |
| Produit Longueur Net | 82.5 mm |
| Poids net | 2.65 kg |
| Emballage | |
| Emballage Niveau 1 Unités | box 1 pièce |
| Emballage Niveau 1 Largeur | 171 mm |
| Emballage Niveau 1 Hauteur | 215 mm |
| Emballage Niveau 1 Longueur | 151 mm |
| Emballage Niveau 1 Poids | 3.1 kg |
| Emballage Niveau 1 EAN | 8015644022051 |
| Informations Supplémentaires | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Durabilite mecanique | 240 cycles per hour |
| 25000 cycle | |
| Nombre de pôles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Quantité | 1 pièce |
| Groupe de produit | SACE Tmax XT |
| Type de produit | Moulded Case Circuit Breaker |
| Breaking Part | |
| Fréquence assignée (f) | 50 / 60 Hz |
| Tension nominale (Ur) | 690 V |
| Tension assignée de tenue aux chocs (Uimp) | 8 kV |
| Tension assignée d’isolement (Ui) | 1000 V |
| Tension | 690 V AC |
| 500 V DC | |
| Pourvoir assigné de coupure de service en court-circuit (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Pouvoir assigné de coupure ultime en court-circuit (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Courant assigné ininterromptu (Iu) | 160 A |
| Short-Circuit Performance Level | N |
| Normes et standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Version | F |
| Certificats et Déclarations (Numéro de document) | |
| Fiche produit, informations techniques | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Déclaration de Conformité - CE | 9AKK106713A5529 |
| Certificat GL | 1SDL000163R0095 |
| Certificat LR | 1SDL000163R0100 |
| Instructions et manuels | 1SDH000722R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Code de classification d'objet | Q |
| UNSPSC | 39120000 |
| Catégorie DEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
