Référence: 1SDA068179R1
Fabricant: ABB
Description:
Catégories:
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ABB
DERNIÈRE CONSULTÉS
| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Oui |
| Déchets destinés à l'enfouissement en décharge - Destination | UL 2799 Zero Waste To Landfill Validation available |
| Instructions de démontage en fin de vie | 9AKK108468A2351 |
| Déclaration environnementale de produit - DEP | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Taux de recyclabilité du produit selon la norme EN45555 | Concu pour utiliser des ressources recyclables et réutilisables - Norme EN45555 - 56.30 % |
| Conformité des matériaux | |
| Déclaration REACH | 9AKK108466A1425 |
| Informations RoHS | 9AKK108466A1424 |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Modèle de rapport sur les minéraux de conflit (CMRT) | 9AKK108467A5658 |
| Loi sur le contrôle des substances toxiques - TSCA | 9AKK108467A8326 |
| SCIP | c450a3df-5ce5-4597-94e9-53a9e6a84bd7 Italy |
| SCIP simplifié | 257bd314-7a59-4e51-ac6a-cb4464ada487 Bulgaria |
| f93d8e90-2e1f-4e02-8aaa-cfb82b750fd2 Netherlands | |
| db8fced5-c40b-4b87-a921-f2da84388f65 Norway | |
| f5b47456-ea3e-45cc-b94d-6a86e8d8ccc3 Sweden | |
| 89433a7e-fcd2-4cc0-b3c3-7cdee1b304a9 Germany | |
| e4fd21ae-7ecd-4145-92aa-72bba750c4b8 France | |
| a1459492-97f4-4be4-90e5-7df74da8d0dc Greece | |
| dd9be6c4-6063-4c81-a65f-cf03eaa4eb9f Belgium | |
| 1e32c8dd-3bf1-4e50-8104-b98ba38f10a3 Hungary | |
| 48baed2e-9f4b-4baa-be0a-2b6e0c73b39c Finland | |
| be5717d2-0ca9-443a-b18e-0524dd6f3851 Poland | |
| d36b8fb2-3dfb-4fed-a5d0-9522bfe625d9 Estonia | |
| 1d04ff7e-92fb-49a3-92eb-93fc9fb74258 Germany | |
| d83af3b5-b83e-4f56-ad91-b201136be220 Croatia | |
| e2ab3936-4675-47ac-bb27-b307a4e2b19e Poland | |
| 10041f1b-1b3e-42d6-acc9-810e4663f10c Poland | |
| dba81a66-e026-46e4-9dac-fa5fc13537d3 Hungary | |
| 6a0f5c9b-fff0-4d6d-ae95-ebfb553619cc Belgium | |
| 275f6df1-bcf2-484b-9ad3-d5fa1b5327f7 Spain | |
| e06e0a85-5bf0-4494-84aa-85333c8f75ab Germany | |
| 765629b1-41d8-4e87-9c67-6e364683ef26 Czech Republic | |
| 253bf7c5-5daf-4bb4-9d28-1071a176bddf Germany | |
| 89bc9058-1d66-43f2-85dd-708631ed5991 France | |
| f3ea7f8b-caae-4846-ba4e-5a182d6eb2c4 Germany | |
| 62f4363f-5a83-4878-98af-5f752c9b8c8e Sweden | |
| 155df062-1c69-458b-8910-dd6d1c76ef29 Denmark | |
| c5ecd498-e0e9-48d9-a6b5-55fbc851db00 Portugal | |
| Environnemental | |
| Informations environnementales | 9AKK108467A6707 |
| Commande | |
| Numéro E (Finlande) | 3641076 |
| Numéro E (Norvège) | 4380185 |
| EAN | 8015644020767 |
| Quantité minimale de commande | 1 pièce |
| Numéro de tarif douanier | 85362090 |
| Dimensions | |
| Largeur nette du produit | 140 mm |
| Hauteur nette du produit | 160 mm |
| Profondeur/longueur nette du produit | 82.5 mm |
| Poids net du produit | 2.65 kg |
| Informations sur l’emballage | |
| Nombre d’unités au niveau d’emballage 1 | box 1 pièce |
| Largeur du niveau d’emballage 1 | 171 mm |
| Hauteur du niveau d’emballage 1 | 215 mm |
| Profondeur/Longueur du niveau d’emballage 1 | 151 mm |
| Poids brut du colis niveau 1 | 3.1 kg |
| Code EAN du niveau d’emballage 1 | 8015644020767 |
| Informations Complémentaires | |

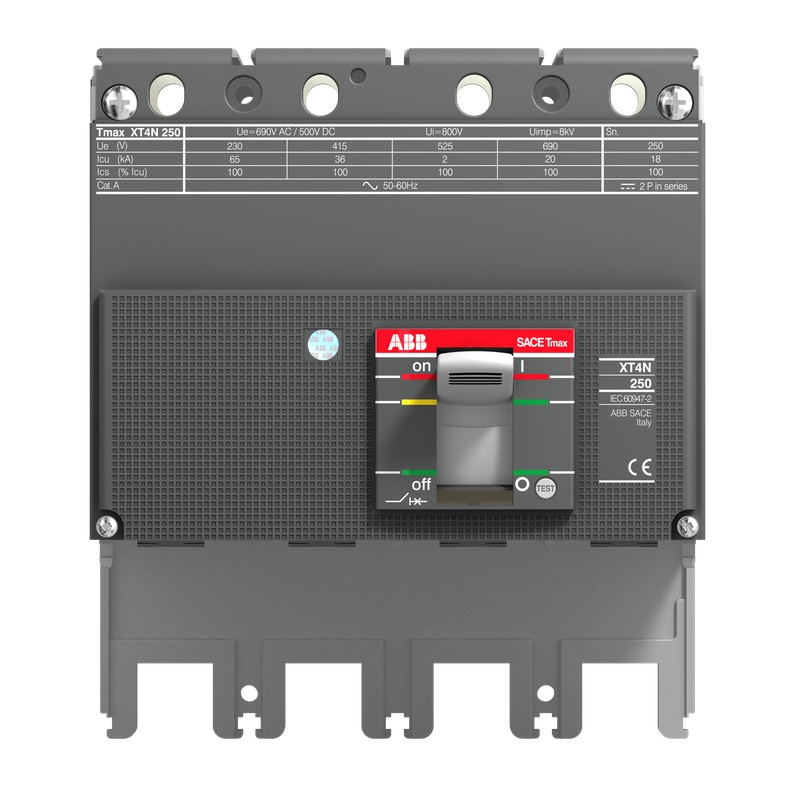

| Type principal du produit | SACE Tmax XT |
| Nom du produit | Moulded Case Circuit Breaker |
| Type de produit | Breaking Part |
| Version | F |
| Technique | |
| Durabilité électrique | 120 cycles per hour |
| 8000 cycle | |
| Durabilité mécanique | 240 cycles per hour |
| 25000 cycle | |
| Nombre de pôles | 4P |
| Heures d'ouverture | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Commande multiple | 1 pièce |
| Fréquence nominale (f) | 50 / 60 Hz |
| Tension nominale de tenue aux impulsions (Uimp) | 8 kV |
| Tension d'isolement nominale (Ui) | 1000 V |
| Tension nominale de fonctionnement | 690 V AC |
| 500 V DC | |
| Pouvoir de coupure nominal en court-circuit (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Pouvoir de coupure ultime en court-circuit (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Courant nominal ininterrompu (Iu) | 250 A |
| Tension nominale (Ur) | 690 V |
| Niveau de performance en cas de court-circuit | S |
| Normes | IEC60947-2 |
| Sous-type | XT4 |
| Type de connexion du terminal | Avant |
| Certificats et déclarations | |
| Fiche technique, Informations techniques | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Déclaration de conformité - CE | 9AKK106713A5529 |
| Certificat GL | 1SDL000163R0095 |
| Certificat LR | 1SDL000163R0100 |
| Instructions et manuels | 1SDH000722R0001 |
| Classifications et normes externes | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Code de classification des objets | Q |
| UNSPSC | 39120000 |
| Catégorie DEEE | 5. Petit équipement (Dimensions extérieures inférieures à 50 cm) |
| eClass | V11.1 : 27370409 |
