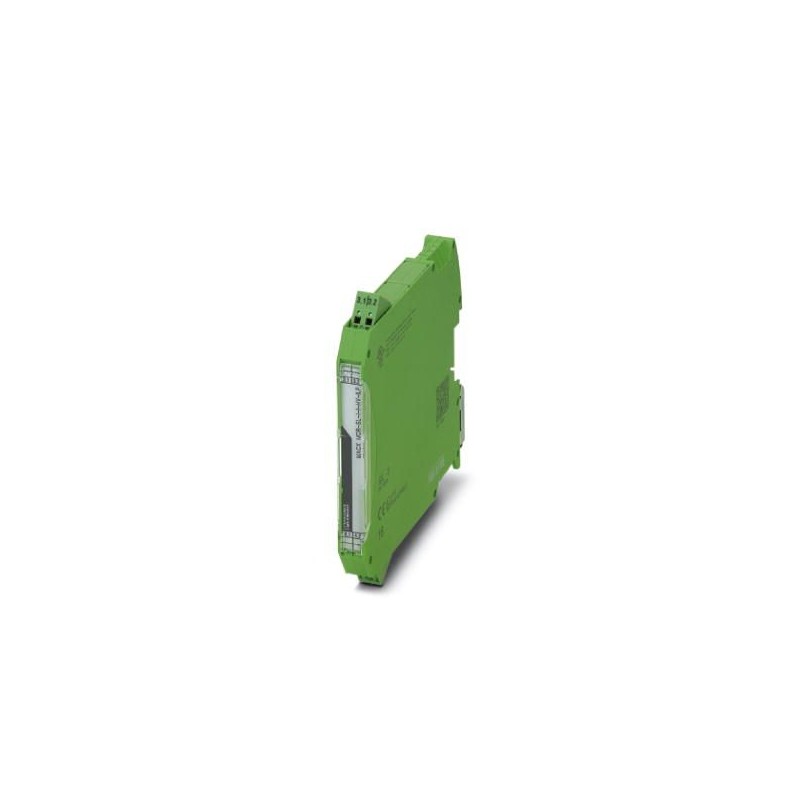

MACX MCR-SL-I-I-HV-ILP-SP 2907705 PHOENIX CONTACT Loop-powered isolators
MACX MCR-SL-I-I-HV-ILP-SP
2907705
PHOENIX_CONTACT
Loop-powered isolators
1-channel input loop-fed 2-way splitter with high isolation voltage and plug-in connection technology for galvanic separation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Push-in connection technology.
Sensors > Isolation amplifier
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2907705 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 125 (C-5-2017) |
| GTIN | 4055626219257 |
| Weight per Piece (excluding packing) | 128.400 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | < 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Noise immunity | EN 61326-1 |
Input data
| Signal input | Current input |
|---|---|
| Configurable/programmable | no |
| Max. voltage input signal | < 30.5 V |
| Current input signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Input voltage limitation | 30.5 V |
| Voltage dissipation | 2.9 V (I = 20 mA) |
| Step response (10-90%) | 5 ms (500 Ω load) |
Output data
| Signal output | Current output |
|---|---|
| Configurable/programmable | no |
| Max. voltage output signal | 27.5 V |
| Current output signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Transmission Behavior | 1:1 to input signal |
| Load/output load current output | ≤ 1375 Ω (I = 20 mA) |
| Residual ripple | < 10 mVrms(500 Ω load) |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
| Connection method | Push-in connection |
General
| No. of channels | 1 |
|---|---|
| Maximum transmission error | ≤ 0.1 % (of final value) |
| Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Electromagnetic compatibility | Conformance with EMC directive |
| Housing material | PA 6.6-FR |
| Color | green |
| Designation | Input/output/power supply |
| Electrical isolation | 600 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1)) |
| 5 kV (50 Hz, 1 min., test voltage) | |
| Conformance | CE-compliant, additionally EN 61326-1 |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| UL, USA/Canada | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC T4 | |
| SIL | 3 |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC directive |
|---|---|
| Noise immunity | EN 61326-1 |
| Flammability rating according to UL 94 | V0 |
| Conformance | CE-compliant, additionally EN 61326-1 |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| UL, USA/Canada | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC T4 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027210120eCl@ss 4.127210120eCl@ss 5.027210120eCl@ss 5.127210100eCl@ss 6.027210100eCl@ss 7.027210120eCl@ss 8.027210120eCl@ss 9.027210120
| Feature Name | Feature Value |
|---|---|
| Number of input ranges -60 mV ... +60 mV (EF006927) | 0 |
| Number of input ranges -100 mV ... +100 mV (EF006912) | 0 |
| Number of input ranges -300 mV ... +300 mV (EF006920) | 0 |
| Number of input ranges -500 mV ... +500 mV (EF006926) | 0 |
| Number of input ranges -1 V ... +1 V (EF006906) | 0 |
| Number of input ranges -2 V ... +2 V (EF006913) | 0 |
| Number of input ranges -2.5 V ... +2.5 V (EF006915) | 0 |
| Number of input ranges -5 V ... +5 V (EF006923) | 0 |
| Number of input ranges -10 V ... +10 V (EF006909) | 0 |
| Number of input ranges -20 V ... +20 V (EF006917) | 0 |
| Number of input ranges 0 mV ... 60 mV (EF006905) | 0 |
| Number of input ranges 0 mV ... 100 mV (EF006893) | 0 |
| Number of input ranges 0 mV ... 200 mV (EF006898) | 0 |
| Number of input ranges 0 mV ... 300 mV (EF006901) | 0 |
| Number of input ranges 0 mV ... 500 mV (EF006904) | 0 |
| Number of input ranges 0 V ... 1 V (EF006890) | 0 |
| Number of input ranges 0 V ... 2 V (EF006894) | 0 |
| Number of input ranges 0 V ... 2.5 V (EF006895) | 0 |
| Number of input ranges 0 V ... 5 V (EF006903) | 0 |
| Number of input ranges 0 V ... 10 V (EF006892) | 0 |
| Number of input ranges 0 V ... 20 V (EF006897) | 0 |
| Number of input ranges 0 V ... 24 V (EF006899) | 0 |
| Number of input ranges 0 V ... 30 V (EF006900) | 0 |
| Number of input ranges 1 V ... 5 V (EF006907) | 0 |
| Number of input ranges 2 V ... 10 V (EF006914) | 0 |
| Number of input ranges +5 V ... -5 V (EF006889) | 0 |
| Number of input ranges +10 V ... -10 V (EF006888) | 0 |
| Number of input ranges 5 V ... 0 V (EF006924) | 0 |
| Number of input ranges 5 V ... 1 V (EF006925) | 0 |
| Number of input ranges 10 V ... 0 V (EF006910) | 0 |
| Number of input ranges 10 V ... 2 V (EF006911) | 0 |
| Number of input ranges 0 mA ... 5 mA (EF006902) | 0 |
| Number of input ranges 0 mA ... 10 mA (EF006891) | 0 |
| Number of input ranges 0 mA ... 20 mA (EF006896) | 1 |
| Number of input ranges 4 mA ... 20 mA (EF006921) | 1 |
| Number of input ranges -5 mA ... +5 mA (EF006922) | 0 |
| Number of input ranges -10 mA ... +10 mA (EF006908) | 0 |
| Number of input ranges -20 mA ... +20 mA (EF006916) | 0 |
| Number of input ranges 20 mA ... 0 mA (EF006918) | 0 |
| Number of input ranges 20 mA ... 4 mA (EF006919) | 0 |
| Number of output ranges -60 mV ... +60 mV (EF006880) | 0 |
| Number of output ranges -100 mV ... +100 mV (EF006865) | 0 |
| Number of output ranges -300 mV ... +300 mV (EF006873) | 0 |
| Number of output ranges -500 mV ... +500 mV (EF006879) | 0 |
| Number of output ranges -1 V ... +1 V (EF006859) | 0 |
| Number of output ranges -2 V ... +2 V (EF006866) | 0 |
| Number of output ranges -2.5 V ... +2.5 V (EF006868) | 0 |
| Number of output ranges -5 V ... +5 V (EF006876) | 0 |
| Number of output ranges -10 V ... +10 V (EF006862) | 0 |
| Number of output ranges -20 V ... +20 V (EF006870) | 0 |
| Number of output ranges 0 mV ... 60 mV (EF006858) | 0 |
| Number of output ranges 0 mV ... 100 mV (EF006846) | 0 |
| Number of output ranges 0 mV ... 200 mV (EF006851) | 0 |
| Number of output ranges 0 mV ... 300 mV (EF006854) | 0 |
| Number of output ranges 0 mV ... 500 mV (EF006857) | 0 |
| Number of output ranges 0 V ... 1 V (EF006843) | 0 |
| Number of output ranges 0 V ... 2 V (EF006847) | 0 |
| Number of output ranges 0 V ... 2.5 V (EF006848) | 0 |
| Number of output ranges 0 V ... 5 V (EF006856) | 0 |
| Number of output ranges 0 V ... 10 V (EF006845) | 0 |
| Number of output ranges 0 V ... 20 V (EF006850) | 0 |
| Number of output ranges 0 V ... 24 V (EF006852) | 0 |
| Number of output ranges 0 V ... 30 V (EF006853) | 0 |
| Number of output ranges 1 V ... 5 V (EF006860) | 0 |
| Number of output ranges 2 V ... 10 V (EF006867) | 0 |
| Number of output ranges +5 V ... -5 V (EF006842) | 0 |
| Number of output ranges +10 V ... -10 V (EF006841) | 0 |
| Number of output ranges 5 V ... 0 V (EF006877) | 0 |
| Number of output ranges 5 V ... 1 V (EF006878) | 0 |
| Number of output ranges 10 V ... 0 V (EF006863) | 0 |
| Number of output ranges 10 V ... 2 V (EF006864) | 0 |
| Number of output ranges 0 mA ... 5 mA (EF006855) | 0 |
| Number of output ranges 0 mA ... 10 mA (EF006844) | 0 |
| Number of output ranges 0 mA ... 20 mA (EF006849) | 1 |
| Number of output ranges 4 mA ... 20 mA (EF006874) | 1 |
| Number of output ranges -5 mA ... +5 mA (EF006875) | 0 |
| Number of output ranges -10 mA ... +10 mA (EF006861) | 0 |
| Number of output ranges -20 mA ... +20 mA (EF006869) | 0 |
| Number of output ranges 20 mA ... 0 mA (EF006871) | 0 |
| Number of output ranges 20 mA ... 4 mA (EF006872) | 0 |
| Number of channels (EF000259) | 1 |
| Malfunction message output (EF007499) | No |
| Inherently safe according to EN 60947-5-6 NAMUR (EF007112) | No |
| Galvanic separation between inputs (EF007224) | No |
| Height (EF000040) | 116 mm |
| Width (EF000008) | 12.5 mm |
| Depth (EF000049) | 113.7 mm |
| Load (EF007096) | 1375 Ohm |
| Operating temperature (EF002393) | -40 °C |
| Temperature drift (EF007507) | 0.002 %/K |
| Construction type of device (EF007276) | Built-in device |
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Snap mounting support rail |
| Degree of protection (IP) (EF005474) | IP20 |
