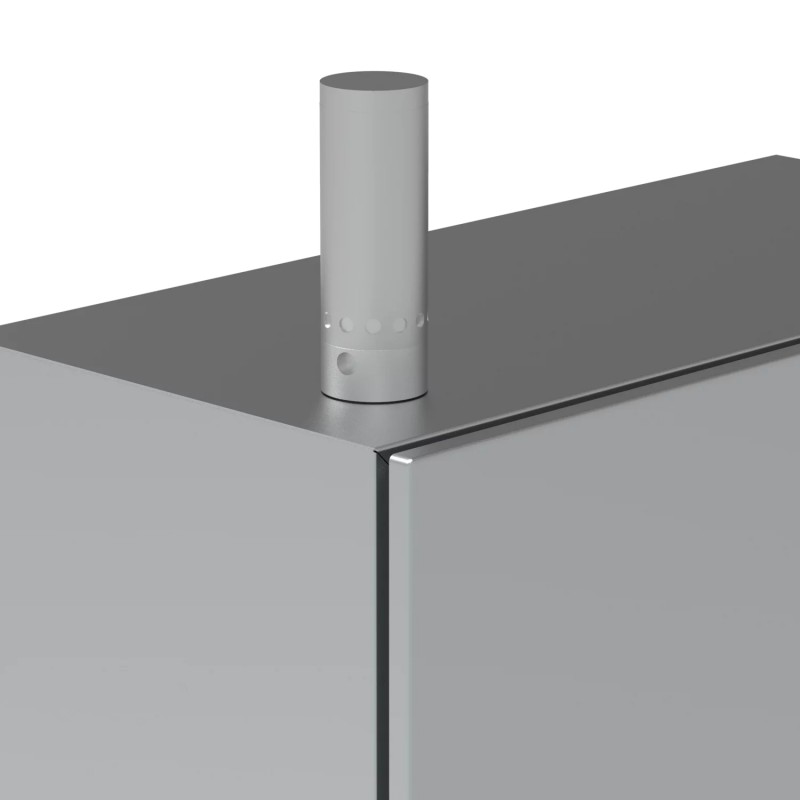

HT4615 nVent HOFFMAN Vortex cooler 293W, 184 HT4615

Description:

Compact and reliable way to cool enclosures. It produces cold air from compressed air, with no moving parts. The easy mounting, through a standard electrical knockout, makes this solution especially suitable to be installed, even when the enclosures are already in the field. For a continuous Vortex operating, relative humidity inside the enclosure is maintained at aproximately 45%, no moisture condenses inside the enclosure (the enclosure must be sealed). Suitable even for ambient temperatures up to 93 °C, the internal components can withstand these high temperatures, and includes a silencer to minimize the noise. The coolers must be installed vertically to maintain the protection degree.

Material:

Internal vortex tube manufactured in stainless steel. External cover, BP TYPE 12 in plastic and aluminium, BP TYPE 4 in aluminium, and TYPE 4X in stainless steel.

Protection:

Depending on type, up to IP 66 TYPE 4X.

Pack quantity:

Vortex cooler with mounting accessories.

Feature:

High temperature vortex cooler, with no moving parts and a high IP 66 protection degree

Advantage:

The vortex cooler provides a maintenance free cooling solution which also reduces the relative humidity within the enclosure. The vortex cooler can be installed on the enclosure easily, in environments of up to 93ºC, reducing the required installation time.

Benefit:

The maintenance free cooling solution prevents unnecessary downtime. This reliable solution reduces the customer's labour cost due to the ease of installation. The vortex cooler will be a good thermal management solution for high temperature environments such as a steel mill.

Comment:

It is recommended to install a thermostat, BPT, as well as an air distribution kit, BPA.
