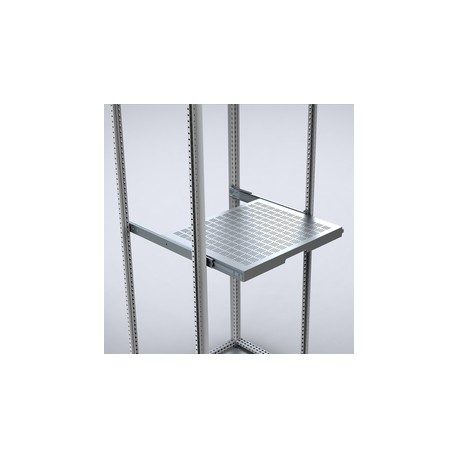

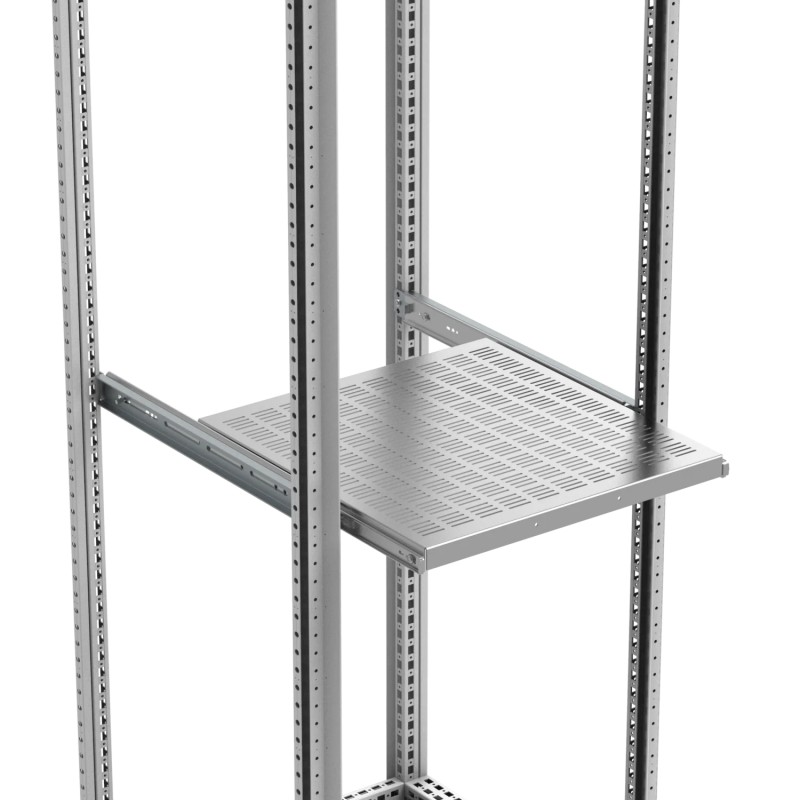

SHT0606 nVent HOFFMAN Telescopic shelf, 600x600 SHT0606

Description:

For easy access to installed equipment. Mounted directly to the enclosure`s frame. Partial depth mounting is an option. Possibility to take the shelf out of the slides even after mounting into the enclosure. Reversed and side mounting possible.

Material:

2 mm zinc plated steel.

Maximum load:

500 N.

Pack quantity:

1 ventilated shelf and 1 pair of telescopic slides with mounting accessories.

Mounting requirements:

Add SHTP profiles for full/partial depth installation to the enclosure's frame.

Feature:

Telescopic zinc plated steel shelf with ventilation openings, for floor standing enclosures.

Advantage:

The shelf can be extracted easily allowing better access to the mounted components or equipment.

Benefit:

The shelf can be extracted allowing the installed components to be inspected and maintained easily. The ventilation openings does not prevent the enclosure's air circulation which reduces the risk of potential hot spots.

Comment:

If it is not required that the shelf covers the complete depth of the enclosure, then a shorter shelf can be mounted using profiles, SHTP, in the enclosure's depth.
