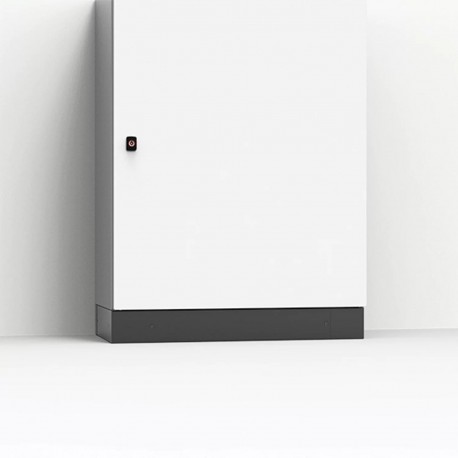

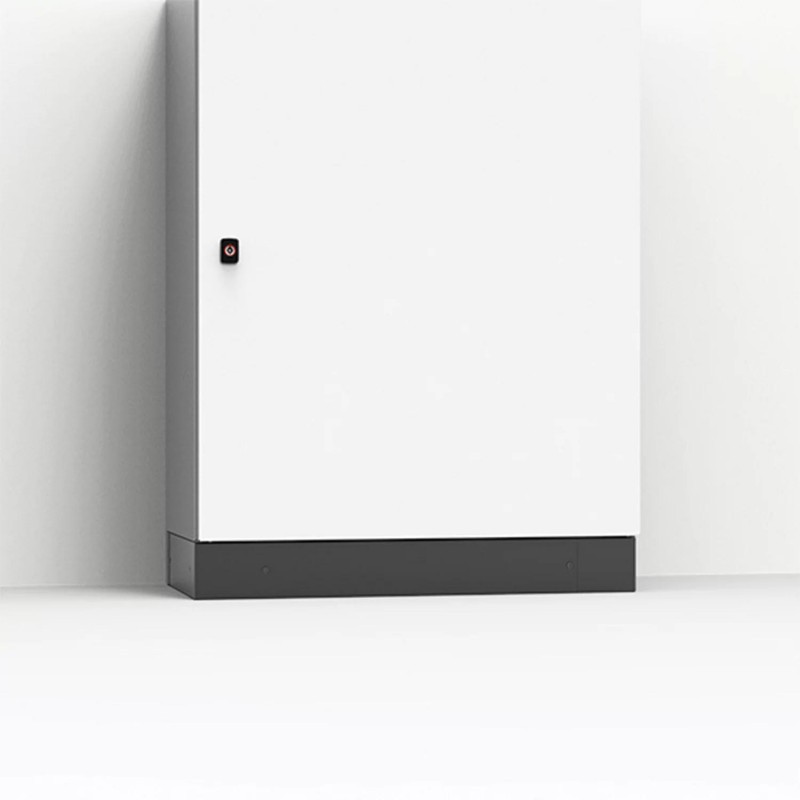

P2040 nVent HOFFMAN Plinth front/ rear, 200x400 P2040

Description:

Four corner pieces with removable front covers. The side panels PA must be ordered separately. Available heights: 100 and 200 mm. Machining is required.

Material:

2.5 mm mild steel for corner pieces and 1.5 mm mild steel for covers.

Finish:

RAL 7022 structured powder coating.

Pack quantity:

4 corner pieces and 2 front covers, with mounting accessories.

Feature:

Painted steel plinth with front and rear removable panels for mild steel wall mounted enclosures.

Advantage:

The plinth is mounted underneath the enclosure to provide extra space between the installation floor and the bottom of the enclosure, this space is accessible by removing the front or rear panel.

Benefit:

Installing cables into the enclosure can be done easily as the plinth creates extra space below the enclosure. The plinth allows enclosures to be fixed to the floor without the need for interior access.
