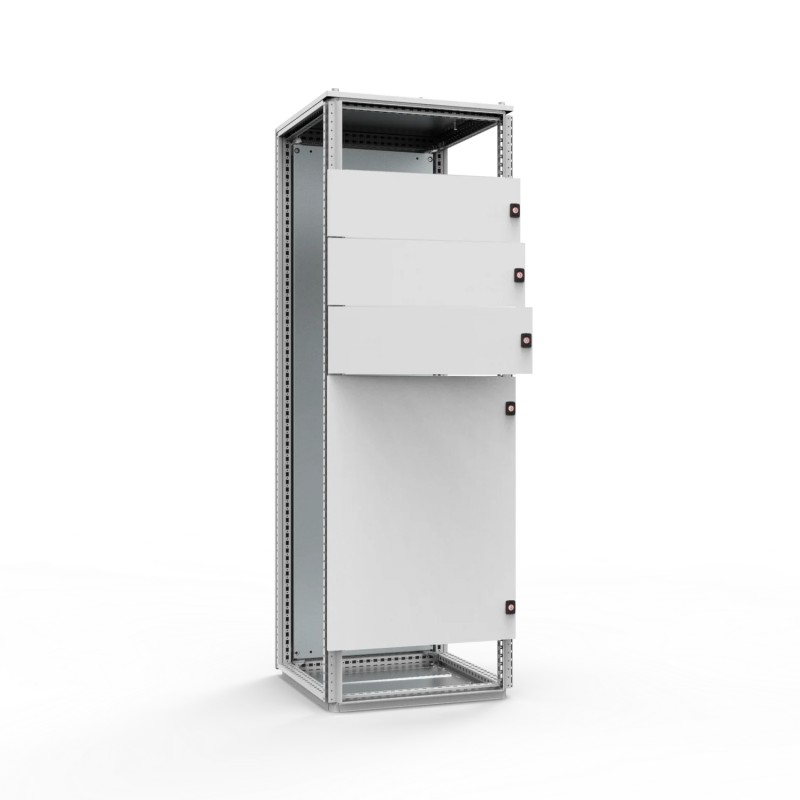

DP12008R5 nVent HOFFMAN Partial door, 1200x800 DP12008R5

Description:

To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CHDK. Equipped with double-bit 3 mm lock (1 lock up to 400 mm, over 400 mm height 2 locks).

Material:

1.75 mm steel plate.

Finish:

RAL 7035 structured powder coating.

Protection:

Complies with IP 44.

Pack quantity:

1 door with hinges, locks and mounting accessories.

Mounting requirements:

Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.

Feature:

The partial door forms part of the partial door system, which replaces the standard plain door fitted to floor standing enclosures.

Advantage:

Partial doors can be configured to segregate the enclosure's openings, creating compartments that can be accessed by a door, to meet customer requirements.

Benefit:

Individual compartments can be accessed easily.

Comment:

Top and bottom partial panels DPC/DPCV are required to be mounted which reduces the useable height by 200 mm.
