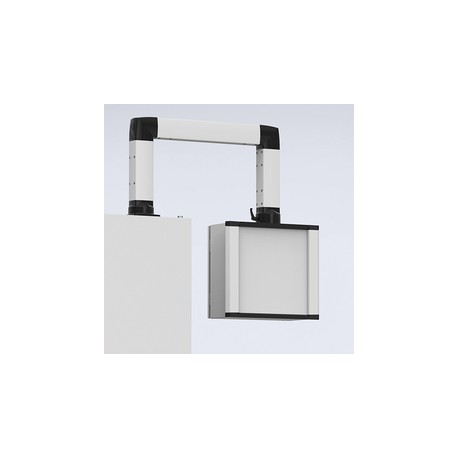

OICE506021 nVent HOFFMAN HMI, 500x600x210

Material:

Body and door are manufactured from 1.2 mm mild steel, front cover and handles manufactured from aluminium.

Body:

Folded and seam welded, with maximum opening. The front fitted with an aluminium front panel. Handling grips mounted to front, left and right edges.

Rear door:

Surface mounted, with 130° opening. Concealed removable hinges, with captive pin. Hinges can be mounted to allow left or right hand opening. Door profiles MMDP are available as an accessory.

Lock:

Customised lock, with double grip for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts and locks are available as an accessory.

Protection:

IP 55 IK 10.

Finish:

RAL 7035 structured powder coating. Top bottom profile RAL7016.

Delivery:

Enclosure with aluminium front panel, rear door, plastic double-bit 3 mm key and mounting accessories.

Feature:

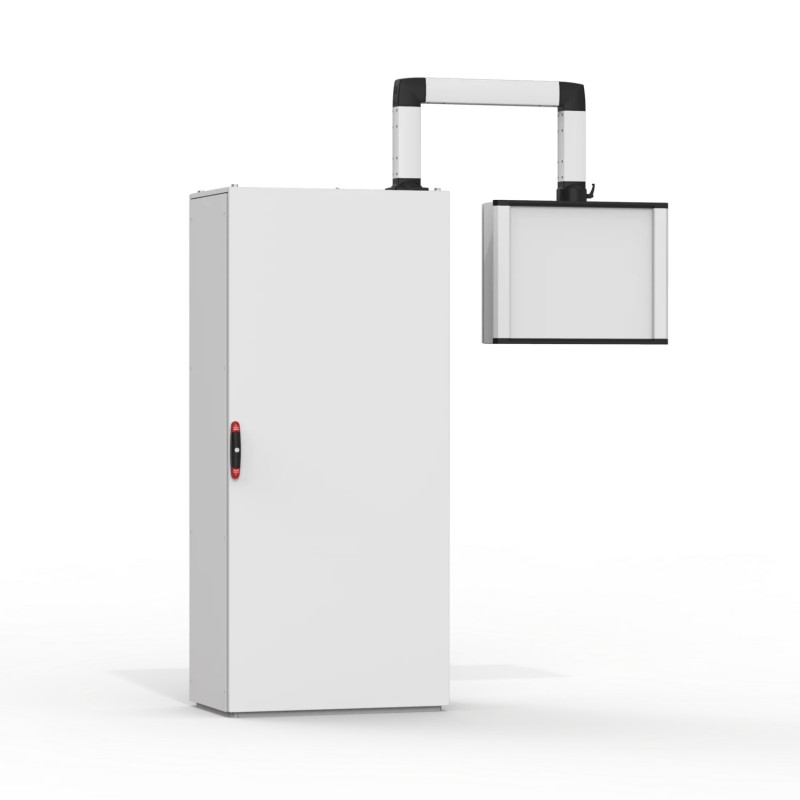

Mild steel operator interface control enclosure, with a pre-machined hole pattern to mount onto a swing arm system, removable aluminium front plate and a IP 55 protection degree.

Advantage:

Components can be installed easily because of the removable front panel and accessible because of the rear door. The enclosure's pre-machined cut-out allows the panel to be quickly mounted to the swing arm system in the field. The pre-mounted enclosure side handles allow customers to manipulate the enclosure easily when performing operations.

Benefit:

The enclosure reduces customer's labour cost and allows ergonomic use in the field, due to the pre-installed handles.

Comment:

The pre-machined cut-outs are suitable for both light and medium swing arm systems. DIN rails (BDR) mounted together with profiles (BPP), or a mounting plate (BMP) can be fitted to the sides of the enclosure.
