CIWR8198
ELDON
2
доступный Корабль на Cегодня
19 "Ширина редукторы, 800x800
Уменьшение ширины 19", 800х800, оцинкованная. Упаковка из 2 шт.

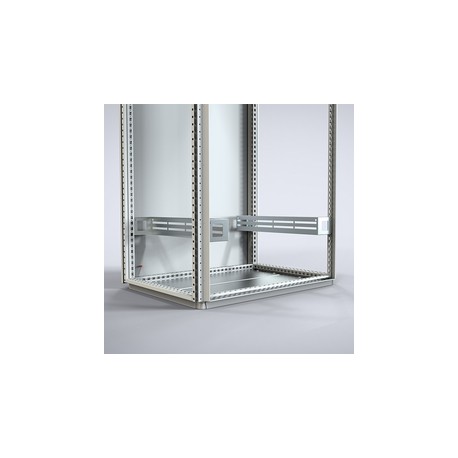

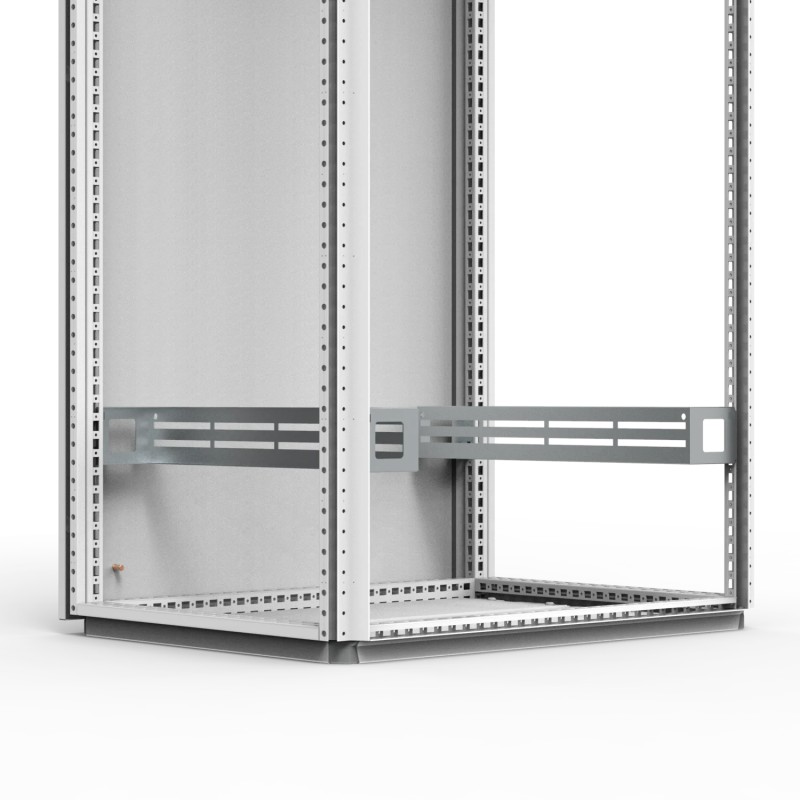

These profiles are fixed to the enclosure's frame within 800 mm wide enclosures, at partial or full height, for mounting 19" profiles. They can also be used to reinforce full height 19" profiles by mounting them across the centre of the enclosure.
Электрические шкафы и боксы > Комплектующие устройства / секционная система распределительного шкафа
Стальные напольные корпуса
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Спасибо за Ваш интерес к нашим продуктам. Надеемся, что предложенные сроки окажутся приемлемыми для Вас.
Во время оформления заказа можете выбрать наиболее приемлимый для Вас вид доставки: Aéreo Express 24hrs, Terrestre Standard 48/72hrs, и т.д.
Description: | Used to obtain 19" mounting facilities in 800 mm wide enclosures. Allows the mounting of CIP/CIPP profiles on partial or full height at any depth. |
Material: | 2 mm zinc plated steel. |
Maximum load: | Maximum supported weight is 5000N on 2 pair of CIWR and 8000N on 3 pair of CIWR. |
Pack quantity: | 1 pair with mounting accessories. |
Feature: | Zinc plated profiles used for mounting 19" partial or full height profiles within floor standing enclosures. |
Advantage: | Full or partial height 19" profiles can be mounted and fully adjusted in depth inside 800 mm wide enclosures. |
Benefit: | As the profiles are fixed directly to the enclosures frame, the profiles can be adjusted in height allowing for either partial height or full height 19" profile mounting. The profiles can also be used to reinforce full height 19" profiles by placing them in the centre. |
Comment: | The width reducers provide continuous depth adjustment instead of just 25 mm increments. |
Заглавие: | Размер: | Тип: |
---|---|---|
CIWR8198 CIWR8198 RU_CIWR8196.pdf | 173 Kbytes |
