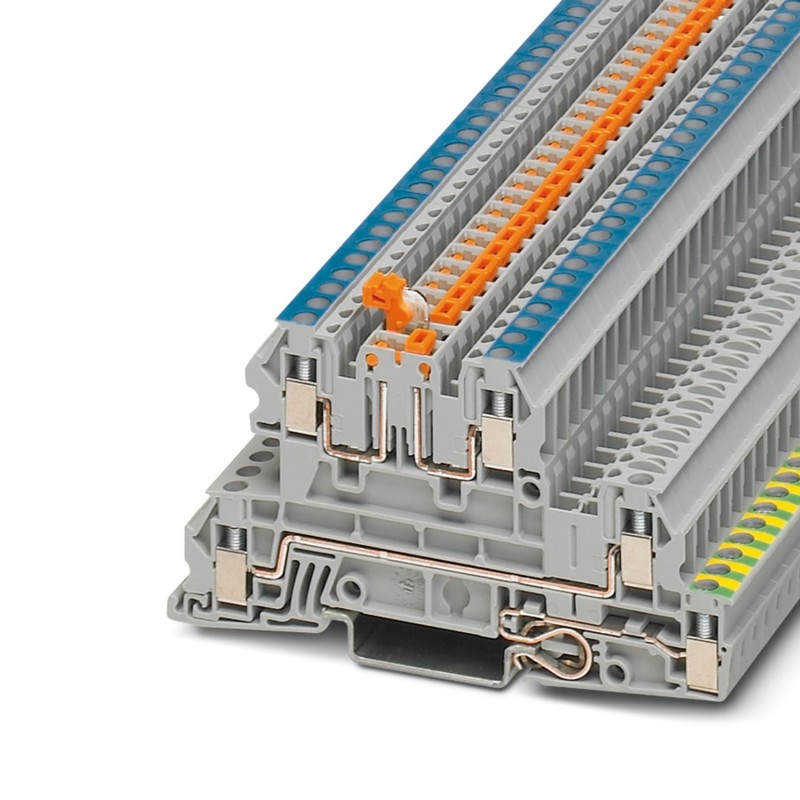

UTI 2,5-PE/L/NTB

3076032

PHOENIX_CONTACT

50

terminal de terra para distribuição, conexão de parafuso, de seção transversal: 0,2 mm²

Mais detalhes


Blocos de terminais > Instalação de terminais de nível

Terminais

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

Quantidade Preço
50+$5.62
100+$5.51
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Mais informação



General

Number of levels3
Number of connections5
Nominal cross section4 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0

General

Rated surge voltage4 kV
6 kV
Pollution degree3
Overvoltage categoryIII
Insulating material groupI
Maximum load current24 A (with 4 mm² conductor cross section and 3-pos. terminal block)
Nominal current IN21 A (with 4 mm² conductor cross section)
Nominal voltage UN400 V (phase conductor/phase conductor)
250 V (phase conductor/PE)
250 V (phase conductor/N)
Maximum load current16 A (with 4 mm² conductor cross section and 3-pos. terminal block)
Nominal current IN16 A (with 4 mm² conductor cross section)
Nominal voltage UN400 V (phase conductor/phase conductor)
250 V (phase conductor/PE)
250 V (phase conductor/N)
Open side panelja
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Surge voltage test setpoint7.3 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of bending testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.2 mm² / 0.2 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg
Tensile test resultTest passed
Conductor cross section tensile test0.2 mm²
Tractive force setpoint10 N
Conductor cross section tensile test2.5 mm²
Tractive force setpoint50 N
Conductor cross section tensile test4 mm²
Tractive force setpoint60 N
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint1 N
Result of voltage-drop testTest passed
Requirements, voltage drop≤ 3.2 mV
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Conductor cross section short circuit testing4 mm²
Short-time current0.48 kA
Conductor cross section short circuit testing2.5 mm²
Short-time current0.3 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 2, bogie mounted
Test frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s2)2/Hz
Acceleration3.12 g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C

Dimensions

Width5.2 mm
End cover width2.2 mm
Length93.5 mm
Height NS 35/7,551.5 mm
Height NS 35/1559 mm
Height51.20 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.75 mm²
Stripping length9 mm
Internal cylindrical gageA3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
NotePlease observe the current carrying capacity of the DIN rails.
Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.75 mm²
Stripping length9 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
