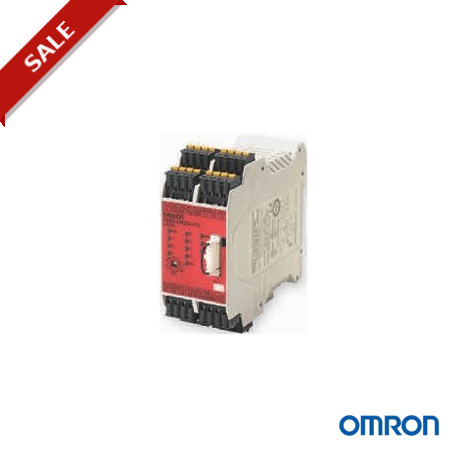

G9SX-LM Flexible safety unit
Limited speed monitoring unit
Safe limited speed monitoring unit for complete support of maintenance mode in ma- chinery.
• Preset of limited speed frequency by using integrated preset switches
• Easy integration in G9SX-Systems by using unique logical “AND” connection
• Clear LED diagnosis of all in- and output signals for easy maintenance
• Applicable up to PLd according to EN ISO 13849-1 using Omron proximity sensors
Ordering information
Proximity sensors
Classification Order code
Proximity sensor Shielded M8 E2E-X1R5F1
M12 E2E-X2F1
M18 E2E-X5F1
Unshielded M8 E2E-X2MF1
M12 E2E-X5MF1
M18 E2E-X10MF1
Ratings of limited speed monitoring unit
Safety outputs *1
Instantaneous
Auxiliary outputs *2
Logical AND
connection input
Rated voltage
Sensor power supply terminals
Terminal block type Order code
4 (Semi-conductors) 4 (Semi-conductors) 1 24 VDC 2 Screw terminals G9SX-LM224-F10-RT Spring-cage terminals G9SX-LM224-F10-RC
*1 P channel MOS FET output
*2 PNP transistor output
Specifications
Ratings of limited speed monitoring unit
Power input
Item G9SX-LM224-F10-_ Rated supply voltage 24 VDC
Inputs
Item G9SX-LM224-F10-_
Safety input Operating voltage: 20.4 VDC to 26.4 VDC
Feedback/reset input
Mode selector input
Internal impedance: approx. 2.8 k
Rotation detection input Operating voltage 20.4 VDC to 26.4 VDC Internal impedance: approx. 2.8 k Input frequency: 1 kHz max.
Outputs
Item G9SX-LM224-F10-_
Safety solid state output P channel MOS FET transistor output
Load current: 0.8 A DC max.
Safety speed detection output P channel MOS FET transistor output
Load current: 0.3 A DC max.
External indicator output PNP transistor output
Load current: 100 mA max.
502
G9SX-LM Flexible safety unit
Application example
Safe limited speed
S5
Lock release
switch
E1 E2
S2
Guard safety-door
switch
Motor Controller
42
41
12
11 Feedback loop
KM1
KM2
S6
Enable
switch
Guard
S1 11
KM1
M1
KM2
S7
Selector
switch
open
+24V
S3
Stop
signal
12
S4
Reset
switch
A1 T11
NC
T12 T21 T22 Y1
M1 M2
T61
T62
T71
NC
T72 Y2
T31
T32
+24V
T33
T41
T42
Devices
S1
S2
: Safety limit switch
:Guard lock safety-door switch
G9SX-LM224-F10
Control circuit
AND
OFF
S3 :Stop signal
S4 :Reset switch
S5 :Lock release switch
S6 :Enable switch
S7 :Selector switch
A2 S14
S24
ES1 ES2 L1 X1
X2 X3 X4
D11
D12
D21
D22
KM1, KM2
M1
:Contactor
:3-phase motor
brown
black
brown
black
+24V
KM1 KM2
Lamp
blue
Normal operating mode (M1:ON, M2:OFF) Timing chart
Guard open close
Guard close open
GND
rotator (M1 interlocking with M1)
Safety limit switch S1
Guard lock safety-door switch S2
Enable switch S6
Reset switch S4
This example is corresponding to category 3 (EN954-1 or PL=d (EN ISO13849-1)
KM1,KM2 N.C. contact KM1,KM2 N.O. contact (Signal for motor)
Motor rotation
Lock release signal
(safety speed detection) ES1
Lock release switch S5
High speed state
Able to open the guard
Maintenance mode (M1:OFF, M2:ON) Timing chart
Safety limit switch S1 Guard lock Safety-door switch S2
Enable switch S6
Reset switch S4
KM1,KM2 N.C. contact
KM1,KM2 N.O. contact Inverter operation (signal for motor)
Motor rotation
Lock release signal
(safety speed detection) ES1
Low speed state Low speed state
High speed state
