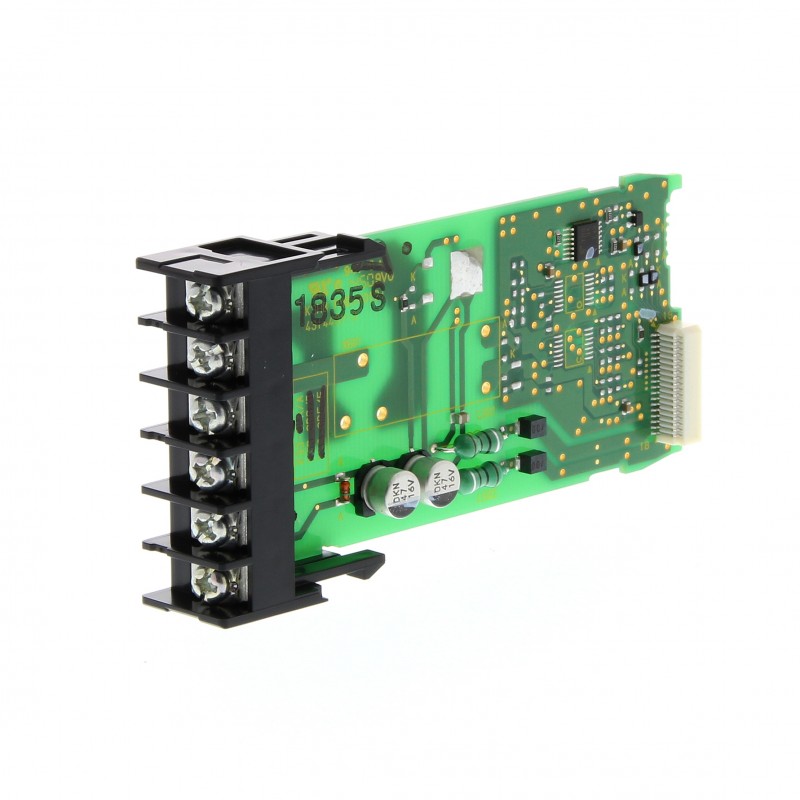

K33-CPB 168450 OMRON Indicadores do Painel, mem. saída do sensor K3HB SPDT 10V + Alim Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

K33-CPB 168450 OMRON Indicadores do Painel, mem. saída do sensor K3HB SPDT 10V + Alim

K33-CPB

168450

OMRON

Disponível

Envio hoje

Indicadores do Painel, mem. saída do sensor K3HB SPDT 10V + Alim

Mais detalhes


Interfaces Homem Máquina Hmi

Digital panel indicators - 1/8 DIN advanced indicators – analogue input - OMRON

Digital panel indicators - 1/8 DIN advanced indicators – analogue input - K3HB-X, -H, -V, -S - OMRON

* Produto novo em sua embalagem original com todas as garantias e certificações de OMRON

QuantidadePreço
1+$45.87
6+$42.07
11+$41.18
16+$40.71
21+$40.40
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



K3HB-X, -H, -V, -S 1/8 DIN advanced indicators
Process, temperature, weighing and linear sensor indicators
These indicators with analog input feature a clear and easy-to-use color change dis- play. All models are equipped with an IP66 housing. K3HB series is high speed, with a sample rate of 50 Hz, and even 2,000 Hz for K3HB-S
• Position meter indication for easy monitoring
• Optional DeviceNet, RS-232C, RS-485
• Double display, with 5 digits, in two colors
• 1/8 DIN size housing
Ordering information
Type of indicator Input sensor type and range Supply voltage Order code
Process indicator
K3HB-X
Temperature indicator
K3HB-H
AC current input, from 0.000 to 10.000 A, 0.0000 to 19.999 mA 100 to 240 VAC K3HB-XAA 100-240VAC
24 VAC/VDC K3HB-XAA 24VAC/VDC DC current input, from ±199.99 mA, to 4.000 to 20.000 mA 100 to 240 VAC K3HB-XAD 100-240VAC
24 VAC/VDC K3HB-XAD 24VAC/VDC AC voltage input, from 0.0 to 400.0 V to 0.0000 to 1.999 V 100 to 240 VAC K3HB-XVA 100-240VAC
24 VAC/VDC K3HB-XVA 24VAC/VDC DC voltage input, from ±199.99 V to 1.0000 to 5.0000 V 100 to 240 VAC K3HB-XVD 100-240VAC
24 VAC/VDC K3HB-XVD 24VAC/VDC Temperature input Pt100, thermocouple K, J, T, E, L, U, N, R, S, B, W 100 to 240 VAC K3HB-HTA 100-240VAC
24 VAC/VDC K3HB-HTA 24VAC/VDC
Weighing indicator
K3HB-V
Load cell input (DC low voltage input), 0.00 to 199.99 mV, 0.000 to 19.999 mV,
100.00 mV, 199.999 mV
100 to 240 VAC K3HB-VLC 100-240 VAC
24 VAC/VDC K3HB-VLC 24VAC/VDC
Linear sensor indicator
K3HB-S
DC process input, 0 to 5 V, 1 to 5 V, –5 to 5 V, –10 to 10 V, 0 to 20 mA, 4 to 20 mA 24 VAC/VDC K3HB-SSD AC/DC24
100 to 240 VAC K3HB-SSD AC100-240
Option boards
Sensor power supply/output boards
Slot Output Sensor power supply Communications Applicable indicator types Order code
B Relay PASS: SPDT 12 VDC ±10%, 80 mA – K3HB-X, -H, -S K33-CPA *1
Linear current DC0(4) - 20 mA – K3HB-X, -H, -S K33-L1 A *2
Linear voltage DC0(1) - 5 V, 0 to 10 V – K3HB-X, -H, -S K33-L2A *2
– – – K3HB-X, -H, -S K33-A *2
– – RS-232C K3HB-X, -H, -S K33-FLK1 A *2
– – RS-485 K3HB-X, -H, -S K33-FLK3A *2
Relay PASS: SPDT 10 VDC ±5%, 100 mA – K3HB-V K33-CPB *1
Linear current DC0(4) - 20 mA – K3HB-V K33-L1B *2
Linear voltage DC0(1) - 5 V, 0 to 10 V – K3HB-V K33-L2B *2
– – – K3HB-V K33-B *2
– – RS-232C K3HB-V K33-FLK1B *2
– – RS-485 K3HB-V K33-FLK3B *2
Relay/transistor output boards
Slot Output Communications Order code
C Relay H/L: SPDT each – K34-C1
HH/H/LL/L: SPST-NO each – K34-C2
Transistor NPN open collector: HH/H/PASS/L/LL – K34-T1
PNP open collector: HH/H/PASS/L/LL – K34-T2
– – DeviceNet K34-DRT *2
Event input boards
Slot Input type Number of points Communications Order code
D NPN open collector 5 M3 terminal blocks K35-1
8 10-pin MIL connector K35-2
PNP open collector 5 M3 terminal blocks K35-3
8 10-pin MIL connector K35-4
*1 CPA/CPB can be combined with relay outputs only.
*2 Only one of the following can be used by each digital indicator: RS-232C/RS-485 communications, a linear output, or DeviceNet communications.
K3HB has got three slots for option boards: Slot B, slot C and slot D.
Accessories
Type Order code
Special cable (for event inputs with 8-pin connector) K32-DICN
588
K3HB-X, -H, -V, -S 1/8 DIN advanced indicators
Specifications
Power supply voltage 100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC
Allowable power supply voltage range 85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
Power consumption 100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load)
Display method Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2 mm (green/red) SV: 4.9 mm (green))
Ambient operating temperature –10 to 55°C (with no icing or condensation)
Display range –19,999 to 99,999
Weight Approx. 300 g (base unit only)
Degree of protection Front-panel Conforms to NEMA 4X for indoor use (equivalent to IP66)
Rear case IP20
Terminals IP00 + finger protection (VDE0106/100)
Memory protection EEPROM (non-volatile memory), number of rewrites: 100,000
Event input ratings Contact ON: 1 k max., OFF: 100 k min.
No-contact ON residual voltage: 2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max.
Output ratings Transistor output Maximum load voltage 24 VDC Maximum load current 50 mA Leakage current 100 μA max.
Contact output
(resistive load)
Rated load 5 A at 250 VAC, 5 A at 30 VDC
Rated through current 5 A
Mechanical life expectancy 5,000,000 operations
Electrical life expectancy 100,000 operations
Linear output Allowable load impedance 500  max. (mA) 5 k min. (V)
Resolution Approx. 10,000
Output error ±0.5% FS
Size in mm (H×W×D) 48×96×100
589

Datasheet - PDF

Title:Language:Size:Type:
pdf1-mostradoOption board Slot B, not compatible with K3N series, 1 relay PASS SPDT and 10 VDC - OMRON - K33-English184 Kbytespdf1-mostradoOption board Slot B, not compatible with K3N series, 1 relay PASS SPDT and 10 VDC - OMRON - K33-
pdf1-Option board Slot B, not compatible with K3N series, 1 relay PASS SPDT and 10 VDC - OMRON - K33-CPB - 16English4 Mbytespdf1-mostradoOption board Slot B, not compatible with K3N series, 1 relay PASS SPDT and 10 VDC - OMRON - K33-
