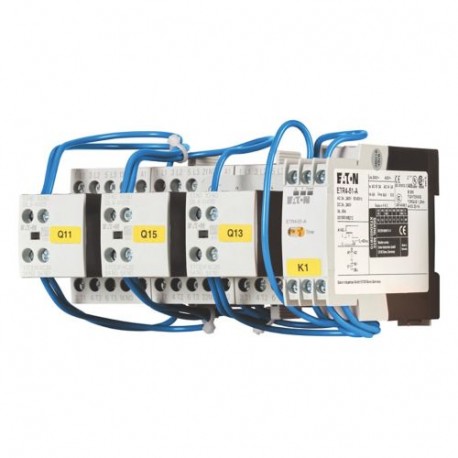

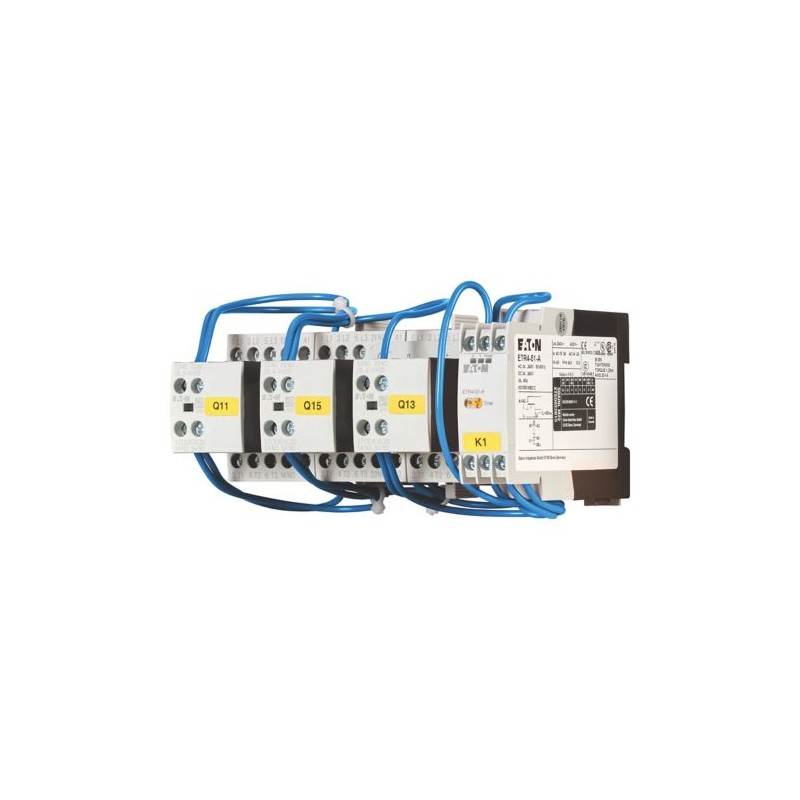

SDAINLM12(24VDC) 100416 EATON MOELLER XTSD012B10TD partida estrela-triângulo, 3P, 5,5 kW (AC3,400V) Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SDAINLM12(24VDC) 100416 EATON MOELLER XTSD012B10TD partida estrela-triângulo, 3P, 5,5 kW (AC3,400V)

SDAINLM12(24VDC)

100416

EATON - MOELLER

Disponível

Envio hoje

XTSD012B10TD partida estrela-triângulo, 3P, 5,5 kW (AC3,400V)

Mais detalhes


Contatores

Motor-Starters - EATON - MOELLER

Star-Delta Starters SDAINLM - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$206.80
2+$202.27
3+$200.96
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Contactor combinations
Application
  Star-delta motor starting for contactor combinations
Accessories
  Star-delta combinations SDAINL
Utilization category
  NAC-3: Normal AC induction motors: starting, switch off during running


Technical data for design verification

Rated operational current for specified heat dissipation
InA7
Heat dissipation per pole, current-dependent
PvidW0.93
Equipment heat dissipation, current-dependent
PvidW2.8
Static heat dissipation, non-current-dependent
PvsW7.2
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C60
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Combination of contactors (EC000010)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Contactor (LV) / Combination of contactor ([email protected] [AGZ572011])
Function
  Star-delta contactor
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  DC
Rated operation current Ie at AC-3, 400 V
 A12
Rated operation power at AC-3, 400 V
 kW5.5
Type of electrical connection of main circuit
  Screw connection
Degree of protection (IP)
  IP20
Characteristics
IL03407030Z (AWA2100-2139) Wiring for contactor combinations

>>

Datasheet - PDF
