SWD4-RC8-10 116020 EATON MOELLER SWD resistência de terminação Connector Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

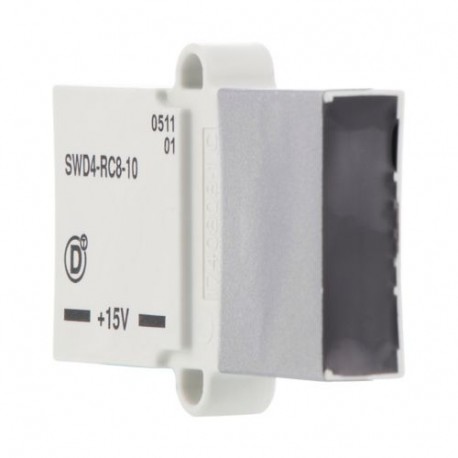

SWD4-RC8-10 116020 EATON MOELLER SWD resistência de terminação Connector

SWD4-RC8-10

116020

EATON - MOELLER

Disponível

Envio hoje

SWD - resistência de terminação Connector

Mais detalhes


Relés Programáveis

SmartWire-DT

SmartWire-DT - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$13.63
14+$11.76
28+$11.47
42+$11.33
56+$11.23
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  SmartWire-DT accessories
Basic function
  Network terminator
Function
  For the SmartWire-DT bus termination resistor on the SmartWire-DT ribbon cable
Description
  SmartWire-DT bus termination resistor; plugged onto SWD4-8MF2 blade terminal at the end of the SmartWire-DT ribbon cable
Connection to SmartWire-DT
  yes
For use with
  SWD4-…LF8-24…
For use with
  for 8 pole ribbon cable
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Technical data
General
Standards
  IEC/EN 61131-2
EN 50178
Dimensions (W x H x D)
 mm48.5 x 34.5 x 10
Weight
 kg0.01
Mounting position
  As required
Power loss
PW0.4
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Vibrations (IEC/EN 61131-2:2008)

Constant amplitude 3,5 mm
 Hz
constant amplitude 0.15 mm max.
 Hz8.4
Constant amplitude 0.15 mm min. (RefExtrakt)
 Hz5
Constant acceleration 1 g
 Hz
constant acceleration 1 g max.
 Hz150
constant acceleration 1 g min.
 Hz8.4
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
 Impacts9
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
 m0.3
Electromagnetic compatibility (EMC)
Overvoltage category
  II
Pollution degree
  2
Electrostatic discharge (IEC/EN 61131-2:2008)

Air discharge (Level 3)
  kV8
Contact discharge (Level 2)
  kV4
Electromagnetic fields (IEC/EN 61131-2:2008)

2 - 2.7 GHz
 V/m1
1.4 - 2 GHz
 V/m3
80 - 1000 MHz
 V/m10
Radio interference suppression
  Class A
Burst (IEC/EN 61131-2:2008, Level 3)

SmartWire-DT cables
 kV1
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
 V10
Climatic environmental conditions
Climatic proofing
  Dry heat to IEC 60068-2-2
Damp heat as per EN 60068-2-3
Air pressure (operation)
 hPa795 - 1080
Ambient temperature

Operation
ϑ°C-25 - +55
Storage / Transport
ϑ°C-40 - +70
Relative humidity

Condensation
  Take appropriate measures to prevent condensation
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Connection options
Connection 1
  Plug, 8-pole
Number of insertion cycles
  ≥ 200
Current consumption
 mA17
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0.4
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / Accessories for controls (EC002584)
Electric engineering, automation, process control engineering / Control / Control (accessories) / Control (accessories, unspecified) ([email protected] [AKN560011])
Type of electrical accessory
  Plug
Type of mechanical accessory
  Cover
Type of documentation
  -
Approvals
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  2324643
CSA Class No.  3211-07
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Dimensions
IL04716001Z (AWA1160-2512) SmartWire-DT: Wiring material and accessories

>
>
>
>
>>
