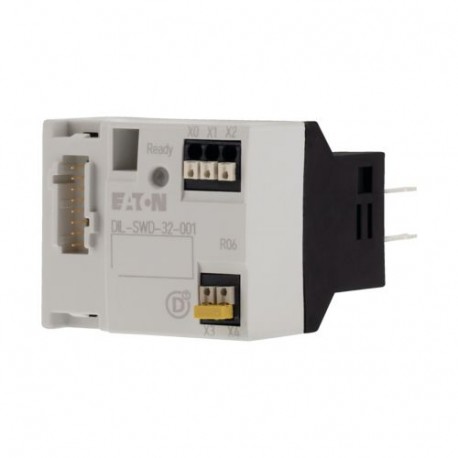

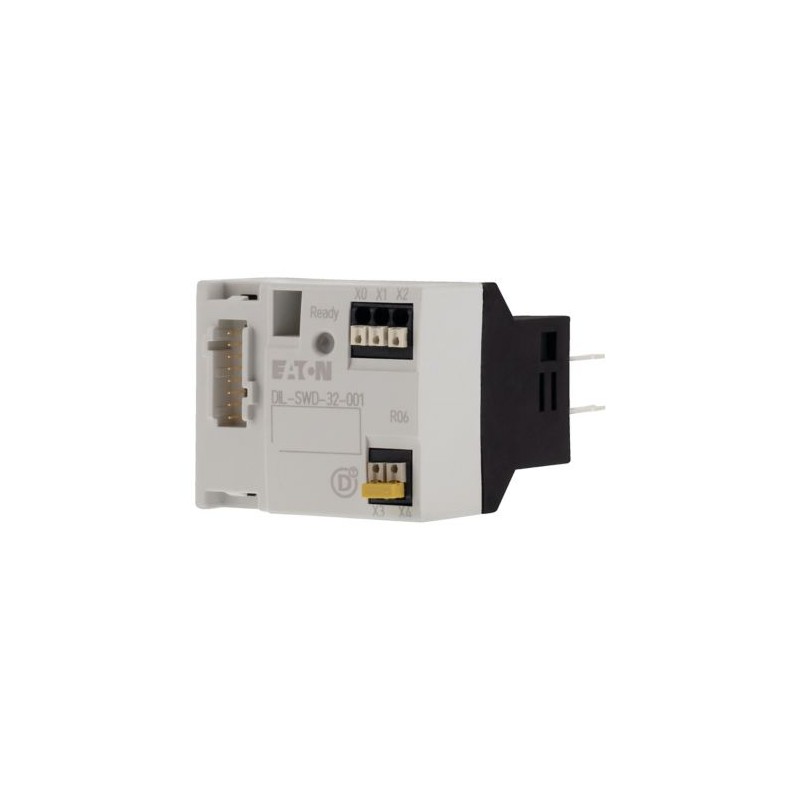

DIL-SWD-32-001 118560 EATON MOELLER SWD Acessório DIL Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DIL-SWD-32-001 118560 EATON MOELLER SWD Acessório DIL





Envio hoje

SWD - Acessório DIL

Mais detalhes

Relés Programáveis



* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal

Produtos relacionados

Mais informação

Delivery programme
Product range
  SmartWire-DT slave
  SWD contactor modules
  For connecting the contactors to SmartWire-DT
  Per contactor 1 module necessary.
  Switch status Contactor, status of the digital inputs 1 and 2
  Contactor actuation
Connection to SmartWire-DT
For use with
  DILM(C)7… - DILM(C)32

For current consumption of the contactor coils > 3 A (UL: 2 A) use additional power feed module.

A2 connections must not be bridged.

Wiring sets DILM 12-XRL and PKZM0-XRM12 cannot be used.

Connection terminals for electrical interlocking are not suitable for safety technology.

Technical data
  IEC/EN 61131-2
EN 50178
IEC/EN 60947
Dimensions (W x H x D)
 mm45 x 38 x 76
  on DILM7…DILM38
Mounting position
  as DILM7 to DILM38
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
Vibrations (IEC/EN 61131-2:2008)
Constant amplitude 3,5 mm
 Hz5 - 8.4
Constant acceleration 1 g
 Hz8.4 - 150
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
Electromagnetic compatibility (EMC)
Overvoltage category
Pollution degree
Electrostatic discharge (IEC/EN 61131-2:2008)
Air discharge (Level 3)
Contact discharge (Level 2)
Electromagnetic fields (IEC/EN 61131-2:2008)
80 - 1000 MHz
1.4 - 2 GHz
2 - 2.7 GHz
Radio interference suppression (SmartWire-DT)
  EN 55011 Class A
Burst (IEC/EN 61131-2:2008, Level 3)
CAN/DP bus cable
SmartWire-DT cables
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
Climatic environmental conditions
Operating ambient temperature (IEC 60068-2)
  °C- 25 - +60
  Take appropriate measures to prevent condensation
 °C- 30 - 70
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
SmartWire-DT network
Station type
  SmartWire-DT slave
Address allocation
SmartWire-DT status LED
  Plug, 8-pole
Plug connectors
  External device plug SWD4-8SF2-5
Current consumption
Pick-up power
for DILM 7-9
for DILM 12-15
for DILM 17-38
Pick-up current
for DILM 7-9
for DILM 12-15
for DILM 17-38
Holding power
for DILM 7-9
for DILM 12-15
for DILM 17-38
Holding current
for DILM 17-38
for DILM 12-15
for DILM 7-9
Mode parameter
Manual/automatic mode
Connection auxiliary contact
Rated voltage
UeV DC15
Input current at 1 signal, typical
Potential isolation
Cable length
Technical data for design verification
Rated operational current for specified heat dissipation
Heat dissipation per pole, current-dependent
Equipment heat dissipation, current-dependent
Static heat dissipation, non-current-dependent
Heat dissipation capacity
Operating ambient temperature min.
Operating ambient temperature max.
IEC/EN 61439 design verification
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
  Meets the product standard's requirements. Verification of thermal stability of enclosures
  Meets the product standard's requirements. Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements. Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties
10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / Fieldbus, decentr. periphery - digital I/O module (EC001599)
Electric engineering, automation, process control engineering / Control / Field bus, decentralized peripheral / Field bus, decentralized peripheral - digital I/O module ([email protected] [BAA055011])
Supply voltage AC 50 Hz
 V0 - 0
Supply voltage AC 60 Hz
 V0 - 0
Supply voltage DC
 V15 - 15
Voltage type of supply voltage
Number of digital inputs
Number of digital outputs
Digital inputs configurable
Digital outputs configurable
Input current at signal 1
Permitted voltage at input
 V15 - 15
Type of voltage (input voltage)
Type of digital output
Output current
Permitted voltage at output
 V20.4 - 28.8
Type of output voltage
Short-circuit protection, outputs available
Number of HW-interfaces industrial Ethernet
Number of HW-interfaces PROFINET
Number of HW-interfaces RS-232
Number of HW-interfaces RS-422
Number of HW-interfaces RS-485
Number of HW-interfaces serial TTY
Number of HW-interfaces parallel
Number of HW-interfaces Wireless
Number of HW-interfaces other
With optical interface
Supporting protocol for TCP/IP
Supporting protocol for PROFIBUS
Supporting protocol for CAN
Supporting protocol for INTERBUS
Supporting protocol for ASI
Supporting protocol for KNX
Supporting protocol for MODBUS
Supporting protocol for Data-Highway
Supporting protocol for DeviceNet
Supporting protocol for SUCONET
Supporting protocol for LON
Supporting protocol for PROFINET IO
Supporting protocol for PROFINET CBA
Supporting protocol for SERCOS
Supporting protocol for Foundation Fieldbus
Supporting protocol for EtherNet/IP
Supporting protocol for AS-Interface Safety at Work
Supporting protocol for DeviceNet Safety
Supporting protocol for INTERBUS-Safety
Supporting protocol for PROFIsafe
Supporting protocol for SafetyBUS p
Supporting protocol for other bus systems
Radio standard Bluetooth
Radio standard WLAN 802.11
Radio standard GPRS
Radio standard GSM
Radio standard UMTS
IO link master
System accessory
Degree of protection (IP)
Type of electric connection
  Spring clamp connection
Time delay at signal exchange
 ms10 - 84
Fieldbus connection over separate bus coupler possible
Rail mounting possible
Wall mounting/direct mounting
Front build in possible
Rack-assembly possible
Suitable for safety functions
Category according to EN 954-1
SIL according to IEC 61508
Performance level acc. to EN ISO 13849-1
Appendant operation agent (Ex ia)
Appendant operation agent (Ex ib)
Explosion safety category for gas
Explosion safety category for dust
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  2324643
CSA Class No.  3211-07
North America Certification  UL listed, CSA certified
Specially designed for North America  No
IL03402036Z SmartWire-DT, Funktionselement für DILM/MSC

Datasheet - PDF

pdf-DIL-SWD-32-001 Function element, contactor, SmartWire-DT, DIL/MSC - EATON - DIL-SWD-32-001 - 118560English199 Kbytespdf-DIL-SWD-32-001 Function element, contactor, SmartWire-DT, DIL/MSC - EATON - DIL-SWD-32-001 - 118560
