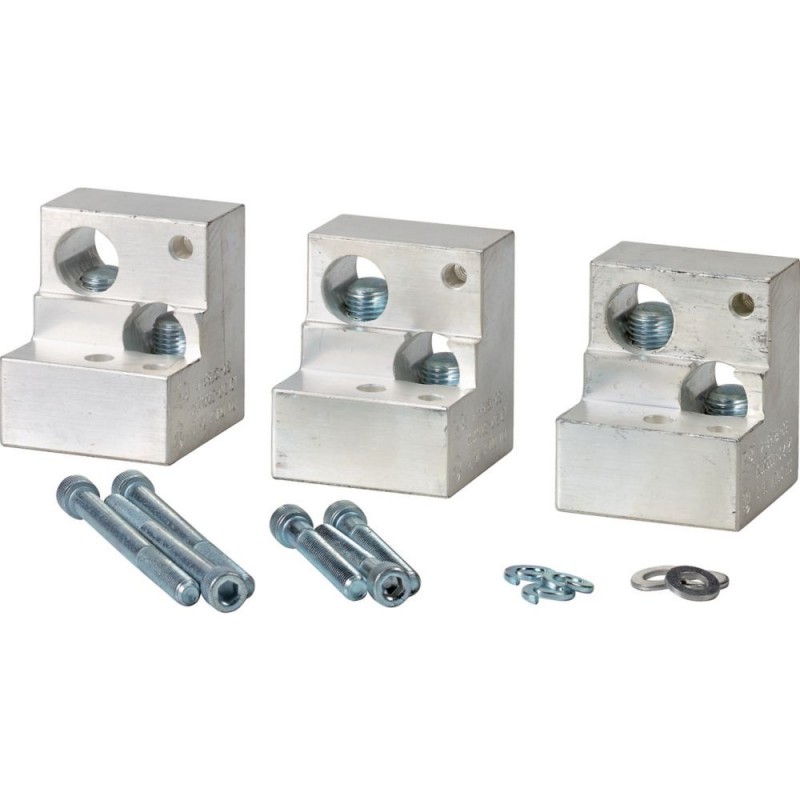

EML26 127665 EATON MOELLER soft starter Acessório Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EML26 127665 EATON MOELLER soft starter Acessório

EML26

127665

EATON - MOELLER

Disponível

Envio hoje

soft starter Acessório

Mais detalhes


* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Accessories
  Terminal blocks
Ordering information
  1 set required for each connection side.
For use with
  S801+, S811+, frame sizes T and U
Terminal capacities
 mm22 x 2/0-300 MCM, 2 x 70-150 mm²
Instructions Tools with dimensions in inches required
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-30
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Connection vane/phase spreader (EC002019)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Connection vane/phase spreader ([email protected] [ACN990009])
Suitable for number of poles
  3
Approvals
Product Standards  UL508, CSA C22.2 No. 65
UL File No.  E202571
UL Category Control No.  NMFT
CSA File No.  LR 353
CSA Class No.  6223-02
North America Certification  UL listed, CSA certified

Datasheet - PDF
