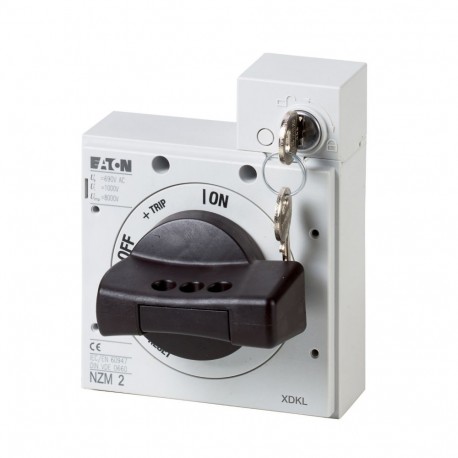

NZM2-XDKL 172537 EATON MOELLER Botão rotativo bloqueável Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZM2-XDKL 172537 EATON MOELLER Botão rotativo bloqueável

NZM2-XDKL

172537

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

Botão rotativo bloqueável

Mais detalhes


Disjuntores

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

Rotary handle on circuit-breaker - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$124.28
2+$121.16
3+$119.62
4+$118.63
5+$118.44
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Accessories
  Rotary handle on circuit-breaker
Product range
  Accessories
Standard/Approval
  UL/CSA, IEC
Construction size
  NZM2
Description
  Makes it possible to operate the switch with a rotational movement and provides locking facilities
Function
  Standard, black/grey
Protection class
  IP66
UL/CSA Type 4X, Type 12
Locking facility
  lockable in position 0 using cylinder lock and key withdrawable
Project planning information
  Complete with rotary drive
Actuation
  Rotary handle
For use with
  NZM2(-4), PN2(-4), N(S)2(-4)
Notes

circuit breaker can also be installed in a lying position 90° left/right, with the handle still in the same position.

cannot be combined with:

  • remote operator
  • side panel mounting
  • mechan. interlock
  • insulating surround
Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices ([email protected] [AKF012011])
Lockable
  Yes
Colour
  Black
Suitable for emergency stop
  No
With axe
  No
Suitable for power circuit breaker
  Yes
Suitable for switch disconnector
  Yes
Dimensions
>

Datasheet - PDF
