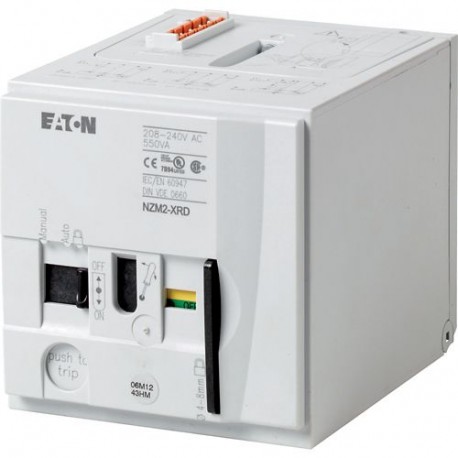

NZM2-XRD110-130DC 115394 EATON MOELLER controle remoto padrão Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZM2-XRD110-130DC 115394 EATON MOELLER controle remoto padrão

NZM2-XRD110-130DC

115394

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

controle remoto padrão

Mais detalhes


Disjuntores

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

Remote operators 208-240V 50/60Hz - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$495.30
2+$494.83
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Remote operator, standard
Rated operating frequency
  DC
Standard/Approval
  UL/CSA, IEC
Construction size
  NZM2
Description


For remote switching of circuit-breakers and switch-disconnectors.

ON and OFF switching and resetting by means of two-wire or three-wire control.

Local switching by hand possible.

Lockable in the 0 position of the remote operator with up to 3 padlocks (hasp thickness: 4 – 8 mm)

 Please note during engineering:
Three-wire controlTerminal 70/71:

Remote operator
Rated control voltage
UsV
DC
UsV DC110-130
Operating range

AC
 x Us0.85 - 1.1
DC
 x Us0.85 - 1.1
Current heat loss per pole at I u
PkWh
AC

110 V … 130 V AC
 VA550
DC
 x Us
24 V … 30 V DC
 W450
Minimum signal duration

with switch on
 ms100
with switch off
 ms100
Lifespan, mechanical
Operations 20000
Maximum operating frequency
 Ops./h
Max. operating frequency
 Ops/h120
Terminal capacities
 mm2
Solid or flexible conductor, with ferrule
 mm20,75 - 2,5

 AWG18 … 14
Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010010])
Type of switch drive
  Motor drive
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V110 - 130
Voltage type for actuating
  DC
Approvals
Product Standards  UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking
UL File No.  E140305
UL Category Control No.  DIHS
CSA File No.  022086
CSA Class No.  1437-01
North America Certification  UL listed, CSA certified
