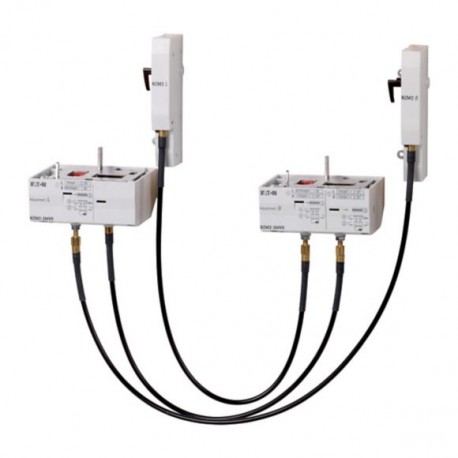

NZM3/4-XMVRL 104551 EATON MOELLER IEC Moulded case circuit breaker Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZM3/4-XMVRL 104551 EATON MOELLER IEC Moulded case circuit breaker

NZM3/4-XMVRL

104551

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

IEC Moulded case circuit breaker

Mais detalhes


Disjuntores

Circuit-breakers NZM and LZM (Accessories) - EATON - MOELLER

Remote Mechanical Interlock - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$381.38
2+$378.17
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Description
  For 2 switches of the same or next frame size with each other
Extra long Bowden cables for mounting under one another or in adjacent control panel sections
For use with
  NZM3(-4), N(S)3(-4)
+ NZM4(-4), N(S)4(-4)
Notes

Type contains parts for both switch sides.

Extension shaft additionally required.

Max. switch clearances Engineering

Can not be combined with rotary handles, door coupling rotary handles, early-make auxiliary contacts, and direct-switching remote operator NZM2-XRD.

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Mechanic interlock for switch (EC001044)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Mechanic interlock for switch ([email protected] [AKN341010])
Auxiliary contacts, extendable
  No
Number of contacts as normally closed contact
  0
Number of contacts as normally open contact
  0

Datasheet - PDF

Title:Language:Size:Type:
Ficha técnica 1: 104551 - NZM3/4-XMVRLEnglish267 KbytesFicha técnica 1: 104551 - NZM3/4-XMVRL
Catálogo completo 1: 104551 - NZM3/4-XMVRLEnglish40 MbytesFicha técnica 1: 104551 - NZM3/4-XMVRL
