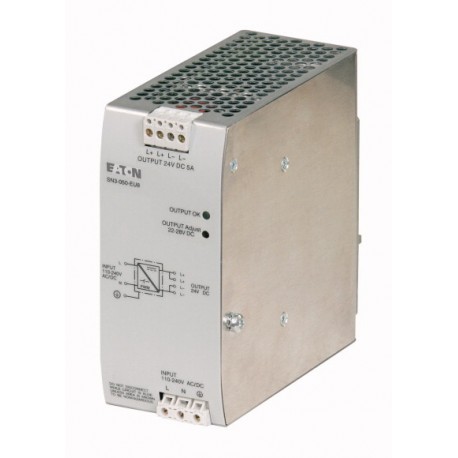

SN3-050-EU8 100643 EATON MOELLER Moni estabilizada fonte de energia Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SN3-050-EU8 100643 EATON MOELLER Moni estabilizada fonte de energia

SN3-050-EU8

100643

EATON - MOELLER

Disponível

Envio hoje

Moni estabilizada fonte de energia

Mais detalhes


Power supplies - EATON - MOELLER

Power supplies - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Até 35% de desconto para clientes registados * Este artigo é obsoleto. Por favor, peça-nos um orçamento para verificar se há unidades disponíveis ou você oferecer um produto alternativo.
Pedido de cotação EXPRESS, em breve você receberá sua resposta

SN3-050-EU8 100643 EATON MOELLER Moni estabilizada fonte de energia

Introduza os seus dados de contato e envie sua solicitação, você será notificado por e-mail com a nossa cotação. Você simplesmente aceite o orçamento e espere a sua encomenda






* Os campos obrigatórios

ou

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  SN3 switched-mode power supply units
Description
  Primary pulsed power supply, power reserve from up to 50 %
Up to 5 devices can be paralleled to increase power and for redundancy
Phases
  Single-phase
Input voltage range
  85 - 264 V AC
100 - 350 V DC
Instructions
  At
General
Standards
  EN 61204, 2006/95/EC, 2004/108/EC, EN 50178, EN 60950, UL 60950, UL 508, SELV (EN 60950)
Degree of protection

Enclosures
  IP20
Terminals
  IP20
Protection class
  according to EN 61140, Class 1
Mounting
  DIN rail (IEC/EN 60715), snap fixing
Mounting position
  Horizontal
Heat dissipation
 Wpart no.
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW15
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / PLC system power supply (EC000599)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / SPS system power supply ([email protected] [AKE532011])
Input voltage at AC 50 Hz
 V85 - 264
Input voltage at AC 60 Hz
 V85 - 264
Input voltage at DC
 V100 - 350
Type of voltage (input voltage)
  AC/DC
Max. input current AC 50 Hz
 A2.2
Max. input current AC 60 Hz
 A2.2
Max. input current DC
 A1.35
Type of output voltage
  DC
Output voltage at AC 50 Hz
 V0 - 0
Output voltage at AC 60 Hz
 V0 - 0
Output voltage at DC
 V0 - 0
Max. output current AC 50 Hz
 A0
Max. output current AC 60 Hz
 A0
Max. output current DC
 A5
Redundancy
  Yes
Suitable for safety functions
  Yes
Width
 mm130
Height
 mm130
Depth
 mm57
Dimensions
IL05012005Z (IL05012005Z) Power supply unit

>>
