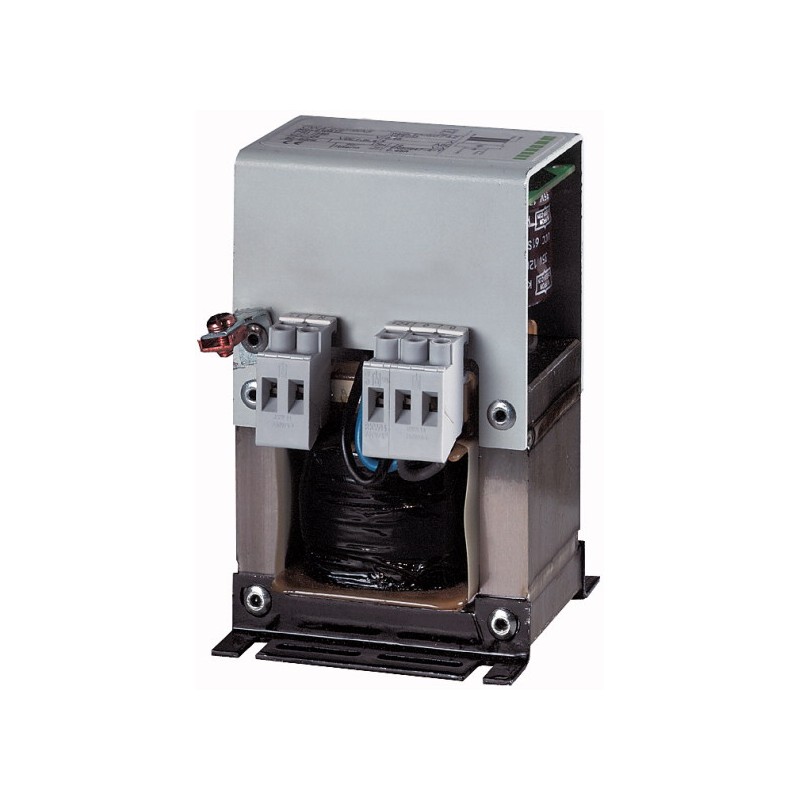

GW4-100-BA3 200019 EATON MOELLER Fonte de alimentação 230VAC / 24VDC10A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

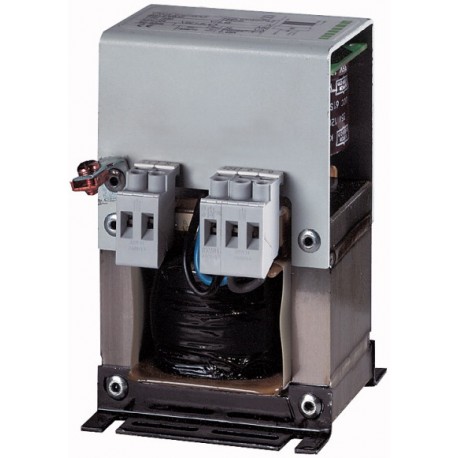

GW4-100-BA3 200019 EATON MOELLER Fonte de alimentação 230VAC / 24VDC10A

GW4-100-BA3

200019

EATON - MOELLER

Disponível

Envio hoje

Fonte de alimentação 230VAC / 24VDC10A

Mais detalhes


Power supplies - EATON - MOELLER

Power supplies - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Até 35% de desconto para clientes registados * Este artigo é obsoleto. Por favor, peça-nos um orçamento para verificar se há unidades disponíveis ou você oferecer um produto alternativo.
Pedido de cotação EXPRESS, em breve você receberá sua resposta

GW4-100-BA3 200019 EATON MOELLER Fonte de alimentação 230VAC / 24VDC10A

Introduza os seus dados de contato e envie sua solicitação, você será notificado por e-mail com a nossa cotação. Você simplesmente aceite o orçamento e espere a sua encomenda






* Os campos obrigatórios

ou

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  GW4 power supply units
Description
  unregulated
smoothed
Phases
  Single-phase
Input voltage range
  230 V AC
Nominal input voltage
  230 V AC
Rated output voltage
  24 V DC
Rated output current
 A10
For use with
  easy…
MFD…
EC4P…
XC-CPU…
XIOC…
PS4…
Technical data
General
Protection class
  1
Potential isolation
  Yes, VDE 0551, IEC/EN 60742, SELV
Supply frequency

Rated value
 Hz50/60
Electromagnetic compatibility (EMC)

Emitted interference
  Class B (EN 55011, 22)
ESD
 kV6 kV contact (Level 3), 8 kV air (Level 3), IEC/EN 61000-4-2
RFI
  10 V/m, modulated, IEC/EN 61000 4-2
Burst
  2 kV (Level 3) IEC/EN 61000-4-4
Surge
  2 kV (Inst. Class 3), IEC/EN 61000-4-5
Surge voltage
  4.9 kV, IEC EN 60947
Environmental compatibility

Ambient temperature
  -25 - 55
Ambient temperature, storage
 °C- -25 - 85
Overvoltage category/pollution degree
  2, EN 50178
Vibration
  0.075 mm (10 - 57 Hz), 10 cycles, IEC 60068-2-6
Shock resistance Shock duration 11 ms
 g15, IEC 60068-2-27 (3 shocks)
Altitude
 mUp to 2000 m a.s.l.; observe drating at higher altitudes
Notes


Derating

From +44 to +55 °C: linear derating

of power from 100 % to 93 %

Degree of Protection
  IP20
Fixing
  Screw fixing
Mounting position
  As required
Heat dissipation
 W57
Input voltage
Rated value
 V AC230
Range
 V AC230
Input currentnominal value per phase
 A1.4
No-load losses
 W10.2
Short-circuit losses
 W35
Output voltage
Rated value
 V DC24
Residual ripple
 %
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW57
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / PLC system power supply (EC000599)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / SPS system power supply ([email protected] [AKE532011])
Input voltage at AC 50 Hz
 V0 - 0
Input voltage at AC 60 Hz
 V0 - 0
Input voltage at DC
 V0 - 0
Type of voltage (input voltage)
  AC
Max. input current AC 50 Hz
 A1.4
Max. input current AC 60 Hz
 A1.4
Max. input current DC
 A0
Type of output voltage
  DC
Output voltage at AC 50 Hz
 V0 - 0
Output voltage at AC 60 Hz
 V0 - 0
Output voltage at DC
 V0 - 0
Max. output current AC 50 Hz
 A0
Max. output current AC 60 Hz
 A0
Max. output current DC
 A10
Redundancy
  No
Suitable for safety functions
  Yes
Width
 mm121
Height
 mm169
Depth
 mm105
Dimensions
IL05012006Z (AWA2700-1611) Power supply unit

>>
