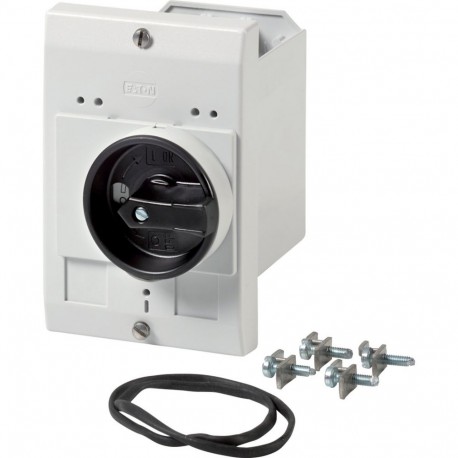

E-PKZ0-G 072907 EATON MOELLER Insulated enclosure, flush mounting, rotary handle black grey, IP55_x Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

E-PKZ0-G 072907 EATON MOELLER Insulated enclosure, flush mounting, rotary handle black grey, IP55_x

E-PKZ0-G

072907

EATON - MOELLER

Disponível

Envio hoje

Insulated enclosure, flush mounting, rotary handle black grey, IP55_x

Mais detalhes


Disjuntor Do Motor

Motor Protective Circuit Breakers PKZ - EATON - MOELLER

PKZ Installation enclosure - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$10.81
11+$9.49
22+$9.26
32+$9.15
43+$9.07
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Subrange
  Installation enclosures
Accessories
  Insulated enclosures for PKZ

  with black-grey rotary knob
Degree of Protection
  Front IP55
For use with
  PKZM0-…
+NHI or U or A
+NHI-E
+L-PKZ0 (2 off)
Notes

Integrated terminal for PE(N) connection.

Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C40
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Empty enclosure for switchgear (EC000712)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Empty housing for switch devices ([email protected] [AKN343011])
Material housing
  Plastic
Width
 mm85
Height
 mm129
Depth
 mm80
With transparent cover
  No
Suitable for emergency stop
  No
Model
  Built-in
Degree of protection (IP)
  IP55
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  165628
CSA Class No.  3211-05
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Degree of Protection  IEC: Front IP55, UL/CSA Type: 1, 12, 3R
Dimensions
IL03402029Z (AWA1210-1327) Insulated enclosure for flush mounting of Motor-protective circuit-breakers

>>

Datasheet - PDF
