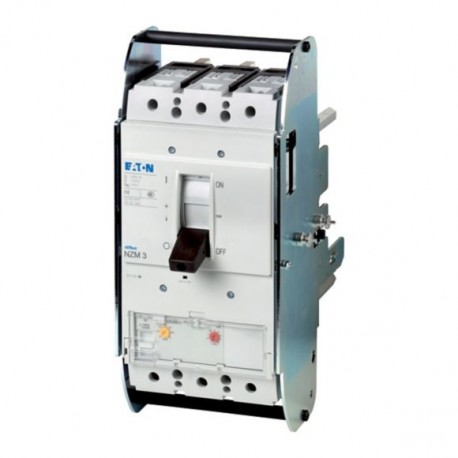

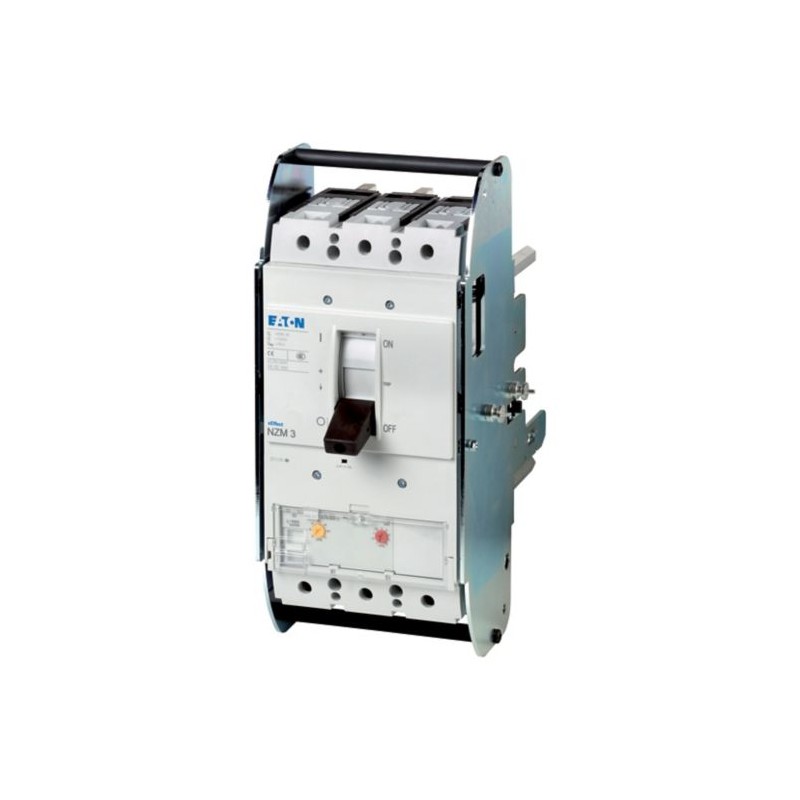

NZMN3-AE400-AVE 110841 EATON MOELLER interruptor automático, 3P, Iu: 400A

NZMN3-AE400-AVE

110841

EATON - MOELLER

Disponível

Envio hoje

interruptor automático, 3P, Iu: 400A

Mais detalhes


Disjuntores

Circuit-breakers NZM - EATON - MOELLER

NZM3 - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Circuit-breaker
Protective function
  System and cable protection
Standard/Approval
  IEC
Installation type
  Withdrawable
Release system
  Electronic release
Construction size
  NZM3
Description
  R.m.s. value measurement and “thermal memory”
Number of poles
  3 pole
Standard equipment
  Screw connection
Switching capacity

400/415 V 50 Hz
IcukA50
Rated current = rated uninterrupted current

Rated current = rated uninterrupted current
In = IuA400
Setting range

Overload trip

General
Standards
  IEC/EN 60947
Protection against direct contact
  Finger and back of hand proof to VDE 0106 Part 100
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Ambient temperature, storage
 °C- 40 - + 80
Operation
 °C-25 - +70
Mechanical shock resistance (10 ms half-sinusoidal shock) according to IEC 60068-2-27
 g20 (half-sinusoidal shock 20 ms)
Safe isolation to EN 61140

Between auxiliary contacts and main contacts
 V AC500
between the auxiliary contacts
 V AC300
Direction of incoming supply
  as required
Degree of protection

Device
  In the operating controls area: IP20 (basic degree of protection)
Enclosures
  With insulating surround: IP40, with door coupling rotary handle: IP66
Terminations
  Tunnel terminal: IP10
Phase isolator and strip terminal: IP00
Other technical data (sheet catalogue)
  >Weight
>Temperature dependency, Derating
>Effective power loss
Circuit-breakers
Rated current = rated uninterrupted current
In = IuA400
Rated surge voltage invariability
Uimp
Main contacts
 V8000
Auxiliary contacts
 V6000
Rated operational voltage
UeV AC690
Overvoltage category/pollution degree
  III/3
Rated insulation voltage
UiV1000
Switching capacity
Rated short-circuit making capacity
Icm
400/415 V
IcmkA105
525 V 50/60 Hz
IcmkA53
690 V 50/60 H
IckA40
Rated short-circuit breaking capacity Icn
Icn
Icu to IEC/EN 60947 test cycle O-t-CO
IcukA
240 V 50/60 Hz
IcukA85
400/415 V 50/60 Hz
IcukA50
440 V 50/60 Hz
IcukA35
525 V 50/60 Hz
IcukA25
690 V 50/60 Hz
IcukA20
Ics to IEC/EN 60947 test cycle O-t-CO-t-CO
IcskA
240 V 50/60 Hz
IcskA85
400/415 V 50/60 Hz
IcskA50
440 V 50/60 Hz
IcskA35
525 V 50/60 Hz
IcskA13
690 V 50/60 Hz
IcskA5

  Maximum back-up fuse, if the expected short-circuit currents at the installation location exceed the switching capacity of the circuit-breaker.
Rated short-time withstand current

t = 0.3 s
IcwkA3.3
t = 1 s
IcwkA3.3
Utilization category to IEC/EN 60947-2
  A
Rated making and breaking capacity

Rated operational current
IeA
AC-1

380 V 400 V
IeA400
415 V
IeA400
690 V
IeA400
AC--3

380 V 400 V
IeA400
415 V
IeA400
660 V 690 V
IeA400
Lifespan, mechanical(of which max. 50 % trip by shunt/undervoltage release)
Operations 15000
Lifespan, electrical

AC-1

690 V 50/60 Hz
Operations 3000
AC--3

415 V 50/60 Hz
Operations 2000
690 V 50/60 Hz
Operations 2000
Max. operating frequency
 Ops/h60
Terminal capacity
Standard equipment
  Screw connection
Round copper conductor

Box terminal

Solid
 mm22 x 16
Stranded
 mm21 x (35 - 240)
2 x (25-120)
Tunnel terminal

Stranded
 mm2
Stranded
 mm21 x (25 - 185)
Double hole fitting
 mm21 x (50 - 240)
2 x (50 - 240)
Bolt terminal and rear-side connection

Direct on the switch

Solid
 mm21 x 16
2 x 16
Stranded
 mm21 x (25 - 240)
2 x (25 - 240)
Connection width extension
 mm2
Connection width extension
 mm22 x 300
Al conductors, Cu cable



Solid
 mm21 x 16
Stranded
 mm2
Double hole fitting
 mm21 x (50 - 240)
2 x (50 - 240)
Bolt terminal and rear-side connection

Flat copper strip, with holes
min.mm6 x 16 x 0.8
Flat copper strip, with holes
max.mm10 x 32 x 1.0 + 5 x 32 x 1.0
Connection width extension
 mm(2 x) 10 x 50 x 1.0
Cu strip (number of segments x width x segment thickness)

Box terminal


min.mm6 x 16 x 0.8

max.mm10 x 24 x 1.0
+ 5 x 24 x 1.0
(2 x) 8 x 24 x 1.0
Bolt terminal and rear-side connection

Flat copper strip, with holes
min.mm6 x 16 x 0.8
Flat copper strip, with holes
max.mm10 x 32 x 1.0 + 5 x 32 x 1.0
Connection width extension
 mm(2 x) 10 x 50 x 1.0
Copper busbar (width x thickness)
mm
Bolt terminal and rear-side connection

Screw connection
  M10
Direct on the switch


min.mm20 x 5

max.mm30 x 10
+ 30 x 5
Connection width extension
 mm
Connection width extension
max.mm2 x (10 x 50)
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA400
Equipment heat dissipation, current-dependent
PvidW48
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Power circuit-breaker for trafo/generator/installation prot. (EC000228)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Circuit breaker for power transformer, generator and system protection ([email protected] [AJZ716010])
Rated permanent current Iu
 A400
Rated voltage
 V690 - 690
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
 kA50
Overload release current setting
 A200 - 400
Adjustment range short-term delayed short-circuit release
 A0 - 0
Adjustment range undelayed short-circuit release
 A800 - 4400
Integrated earth fault protection
  No
Type of electrical connection of main circuit
  Screw connection
Device construction
  Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting
  No
DIN rail (top hat rail) mounting optional
  No
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  0
Switched-off indicator available
  No
With under voltage release
  No
Number of poles
  3
Position of connection for main current circuit
  Front side
Type of control element
  Rocker lever
Complete device with protection unit
  Yes
Motor drive integrated
  No
Motor drive optional
  Yes
Degree of protection (IP)
  IP20
Characteristics
>>

Datasheet - PDF
