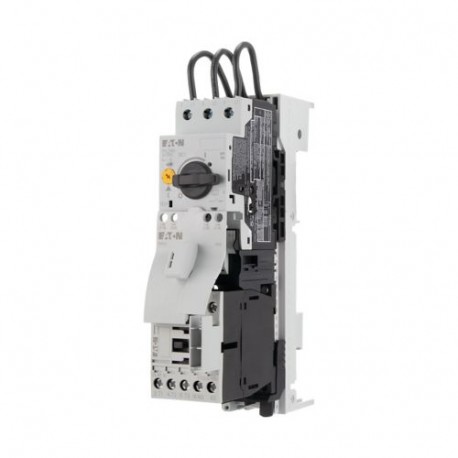

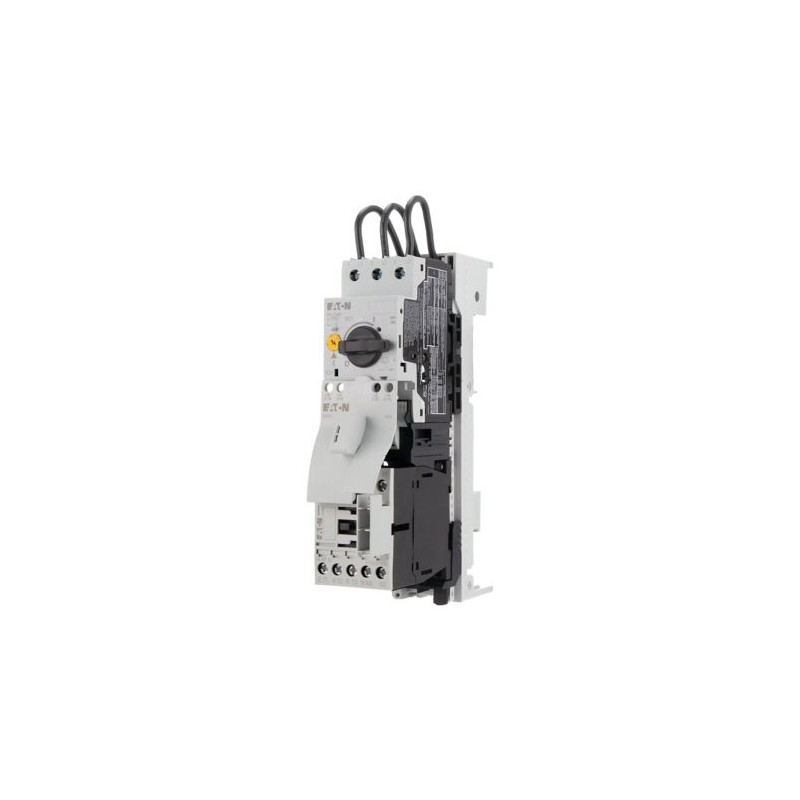

MSC-D-4-M7(230V50HZ)/BBA 102953 EATON MOELLER XTSC004B007BFNL-A 1,5kW arranque directo (AC-3,400V) Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

MSC-D-4-M7(230V50HZ)/BBA 102953 EATON MOELLER XTSC004B007BFNL-A 1,5kW arranque directo (AC-3,400V)

MSC-D-4-M7(230V50HZ)/BBA

102953

EATON - MOELLER

Disponível

Envio hoje

XTSC004B007BFNL-A 1,5kW arranque directo (AC-3,400V)

Mais detalhes


Contatores

Motor-Starters - EATON - MOELLER

MSC Motor-Starters - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$81.15
2+$78.86
4+$77.00
5+$76.48
7+$75.85
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Further informationPage
Basic function
  DOL starters (complete devices)
Basic device
  MSC


Technical data PKZM0→ >PKZM0
Accessories PKZ→ 072896
Technical data DILM→ >DILM
DILM accessories→ 281199
Notes

BK25/3-PKZ0-E extension terminal and if necessary B3.../...-PKZ0 three-phase commoning link can be added to motor-starter combinations to make Type F starters in accordance with UL508.

Technical data
General
Standards

UL 508 (on request)
CSA C 22.2 No. 14 (on request)
Main conducting paths
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated operational voltage
UeV230 - 415
Rated operational current

Open, 3-pole: 50 – 60 Hz

380 V 400 V
IeA4
Additional technical data
Motor protective circuit breaker PKZM0, PKE
  PKZM0 motor-protective circuit-breakers, see motor-protective circuit-breakers/PKZM0 product group
DILM contactors, see contactors product group
DILET timing relay, ETR, see contactors, electronic timing relays product group
DILM contactors

Power consumption of the coil in a cold state and 1.0 x Uc

Dual-voltage coil 50 Hz
SealingW1.2
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA4
Heat dissipation per pole, current-dependent
PvidW2
Equipment heat dissipation, current-dependent
PvidW6
Static heat dissipation, non-current-dependent
PvsW1.4
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Motor starter/Motor starter combination (EC001037)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Motor starter combination ([email protected] [AJZ718010])
Kind of motor starter
  Direct starter
With short-circuit release
  Yes
Rated control supply voltage Us at AC 50HZ
 V230 - 230
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V0 - 0
Voltage type for actuating
  AC
Rated operation power at AC-3, 230 V, 3-phase
 kW0.75
Rated operation power at AC-3, 400 V
 kW1.5
Rated power, 460 V, 60 Hz, 3-phase
 kW0
Rated power, 575 V, 60 Hz, 3-phase
 kW0
Rated operation current Ie
 A3.6
Rated operation current at AC-3, 400 V
 A4
Overload release current setting
 A2.5 - 4
Rated conditional short-circuit current, type 1, 480 Y/277 V
 A0
Rated conditional short-circuit current, type 1, 600 Y/347 V
 A0
Rated conditional short-circuit current, type 2, 230 V
 A50000
Rated conditional short-circuit current, type 2, 400 V
 A50000
Number of auxiliary contacts as normally open contact
  1
Number of auxiliary contacts as normally closed contact
  0
Ambient temperature, , upper operating limit
 °C60
Temperature compensated overload protection
  Yes
Release class
  CLASS 10
Type of electrical connection of main circuit
  Screw connection
Type of electrical connection for auxiliary- and control current circuit
  Screw connection
Rail mounting possible
  Yes
Degree of protection (IP)
  IP20
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for MODBUS
  No
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  No
Dimensions
IL03402015Z (AWA1210-2324) Busbar adapter

>>

Datasheet - PDF
