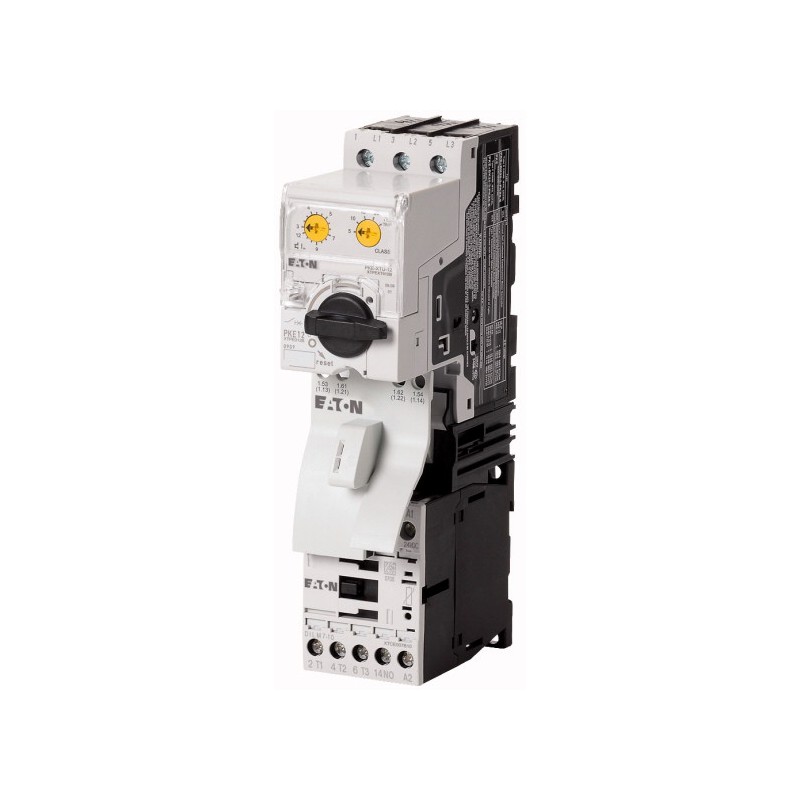

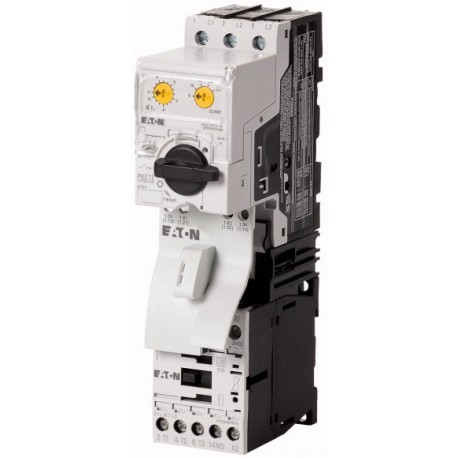

MSC-DE-12-M9(24VDC) 121742 EATON MOELLER XTSE012B009BTDNL direto de partida electrónico, com o tiro bloco pa.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

MSC-DE-12-M9(24VDC) 121742 EATON MOELLER XTSE012B009BTDNL direto de partida electrónico, com o tiro bloco pa..

MSC-DE-12-M9(24VDC)

121742

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

XTSE012B009BTDNL direto de partida electrónico, com o tiro bloco padrão

Mais detalhes


Contatores

Motor-Starters - EATON - MOELLER

MSC Motor-Starters - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$80.68
2+$78.40
4+$76.55
5+$76.03
7+$75.40
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme

Motor rating

Rated motor current

AC-3

220 V

230 V

240 V

380 V

400 V

415 V

Iq = 100 kAIq =100 kAIq = 50 kA
P

I

I

I

kW

A

A

A

Basic function
  DOL starters (complete devices)
Basic device
  MSC


0.75 3.2 - -
1.1 4.6 - -
1.5 6.3 3.6 3.6
2.2 8.7 5 5
3 - 6.6 6.6
4 - 8.5 8.5
Technical data
General
Standards
  IEC/EN 60947-4-1, VDE 0660
Main conducting paths
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated operational voltage
UeV230 - 415
Rated operational current

Open, 3-pole: 50 – 60 Hz

380 V 400 V
IeA9
Additional technical data
Motor protective circuit breaker PKZM0, PKE
  PKZM0 motor-protective circuit-breakers, see motor-protective circuit-breakers/PKZM0 product group
DILM contactors, see contactors product group
DILET timing relay, ETR, see contactors, electronic timing relays product group
Power consumption
DC operated
SealingW3
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA9
Heat dissipation per pole, current-dependent
PvidW0.8
Equipment heat dissipation, current-dependent
PvidW2.4
Static heat dissipation, non-current-dependent
PvsW2.6
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Motor starter/Motor starter combination (EC001037)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Motor starter combination ([email protected] [AJZ718010])
Kind of motor starter
  Direct starter
With short-circuit release
  Yes
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  DC
Rated operation power at AC-3, 230 V, 3-phase
 kW2.2
Rated operation power at AC-3, 400 V
 kW4
Rated power, 460 V, 60 Hz, 3-phase
 kW0
Rated power, 575 V, 60 Hz, 3-phase
 kW0
Rated operation current Ie
 A8.5
Rated operation current at AC-3, 400 V
 A9
Overload release current setting
 A3 - 12
Rated conditional short-circuit current, type 1, 480 Y/277 V
 A0
Rated conditional short-circuit current, type 1, 600 Y/347 V
 A0
Rated conditional short-circuit current, type 2, 230 V
 A0
Rated conditional short-circuit current, type 2, 400 V
 A0
Number of auxiliary contacts as normally open contact
  1
Number of auxiliary contacts as normally closed contact
  0
Ambient temperature, , upper operating limit
 °C60
Temperature compensated overload protection
  Yes
Release class
  Adjustable
Type of electrical connection of main circuit
  Screw connection
Type of electrical connection for auxiliary- and control current circuit
  Screw connection
Rail mounting possible
  Yes
Degree of protection (IP)
  IP20
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for MODBUS
  No
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  No
Dimensions
IL034014ZU (IL03402005Z) Direct-on-line starter up to 15 A

>>

Datasheet - PDF
