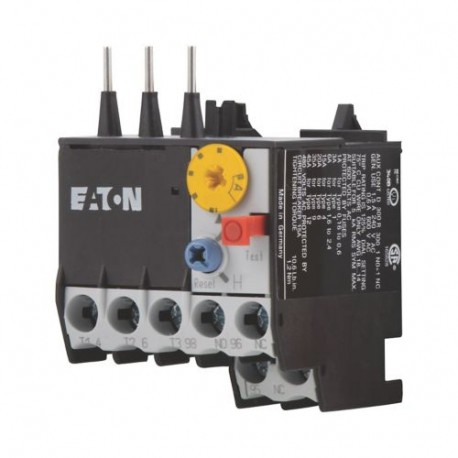

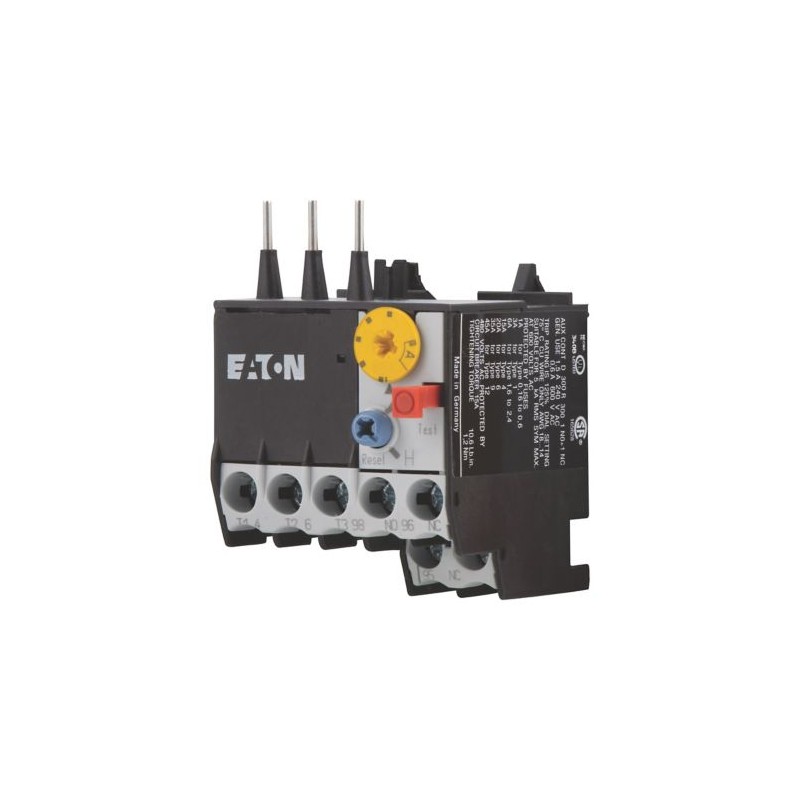

ZE-2,4 014479 EATON MOELLER XTOM2P4AC1 mini-relé térmico 1,6-2-4A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

ZE-2,4 014479 EATON MOELLER XTOM2P4AC1 mini-relé térmico 1,6-2-4A

ZE-2,4

014479

EATON - MOELLER

Disponível

Envio hoje

XTOM2P4AC1 mini-relé térmico 1,6-2-4A

Mais detalhes


Contatores

DIL Contactors - EATON - MOELLER

Mini Contactor Relays DILE - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$25.81
5+$23.87
10+$23.29
15+$22.99
20+$22.82
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  ZE overload relays for mini contactor relays
Phase-failure sensitivity
  IEC/EN 60947, VDE 0660 Part 102
Description
  Test/off button
Reset pushbutton manual/auto
Trip-free release
Mounting type
  Direct mounting
Setting range

Overload releases

When fitted directly to the contactor a clearance of at least 5 mm is required between the overload relays.


General
Standards
  IEC/EN 60947, VDE 0660, UL, CSA
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature


  Operating range to IEC/EN 60947
PTB: -5 °C - +55 °C
Open
 °C-25 - +50
Enclosed
 °C- 25 - 40
Temperature compensation
  Continuous
Weight
 kg0.07
Mechanical shock resistance
 g10
Sinusoidal
Shock duration 10 ms
Degree of Protection
  IP20
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Main conducting paths
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated insulation voltage
UiV690
Rated operational voltage
UeV AC690
Safe isolation to EN 61140

Between auxiliary contacts and main contacts
 V AC300
Between main circuits
 V AC300
Temperatur compensation residual error > 40 ºC

Technical data for design verification

Rated operational current for specified heat dissipation
InA2.4
Heat dissipation per pole, current-dependent
PvidW1.6
Equipment heat dissipation, current-dependent
PvidW4.8
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Thermal overload relay (EC000106)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Overload protection device / Thermal overload relay ([email protected] [AKF075011])
Adjustable current range
 A1.6 - 2.4
Max. rated operation voltage Ue
 V690
Mounting method
  Direct attachment
Type of electrical connection of main circuit
  Screw connection
Number of auxiliary contacts as normally closed contact
  1
Number of auxiliary contacts as normally open contact
  1
Number of auxiliary contacts as change-over contact
  0
Release class
  CLASS 10
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; IEC/EN 60947-5-1; CE marking
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  12528
CSA Class No.  3211-03
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Suitable for  Branch circuits
Max. Voltage Rating  600 V AC
Degree of Protection  IEC: IP20, UL/CSA Type: -
Characteristics
IL03407007Z (AWA2300-0883) Overload relay

>
>>

Datasheet - PDF
