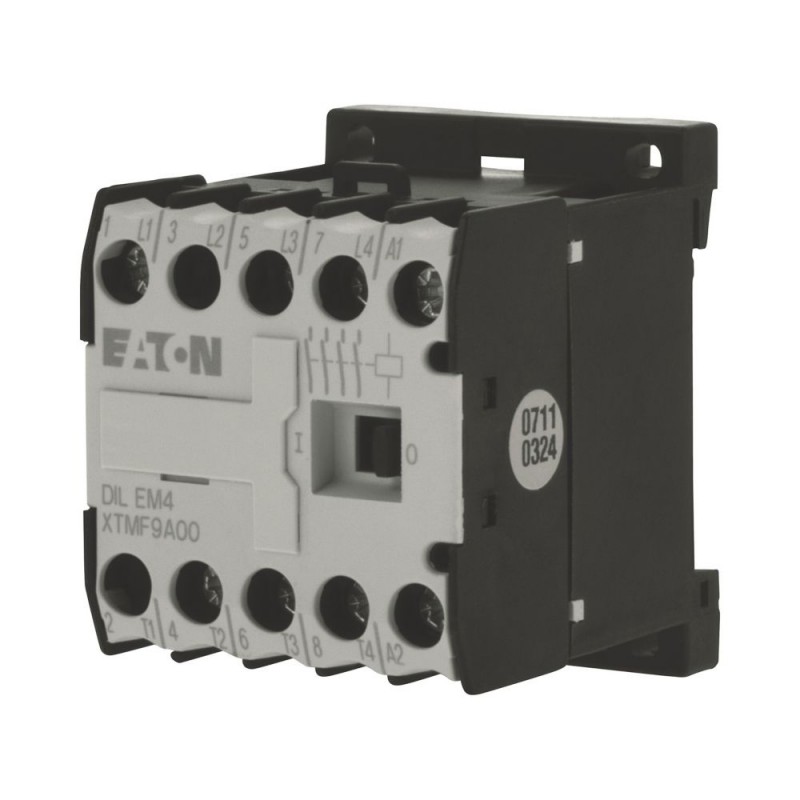

DILEM4(220V50HZ,240V60HZ) 051803 EATON MOELLER XTMF9A00B Minicontactor 4P, 20A (AC-1) Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DILEM4(220V50HZ,240V60HZ) 051803 EATON MOELLER XTMF9A00B Minicontactor 4P, 20A (AC-1)

DILEM4(220V50HZ,240V60HZ)

051803

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

XTMF9A00B Minicontactor 4P, 20A (AC-1)

Mais detalhes


Contatores

DIL Contactors - EATON - MOELLER

Mini Contactor Relays DILE - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$20.62
7+$18.73
13+$18.33
19+$18.12
25+$17.99
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Contactors
Application
  Mini Contactors for Motors and Resistive Loads
Subrange
  DILEM contactors
Utilization category
  AC-1: Non-inductive or slightly inductive loads, resistance furnaces
NAC-3: Normal AC induction motors: starting, switch off during running
AC-4: Normal AC induction motors: starting, plugging, reversing, inching
Connection technique
  Screw terminals
Pole
  4 pole
Rated operational current

AC-3

380 V 400 V
IeA9
AC-1

Conventional free air thermal current, 3 pole, 50 - 60 Hz

Open

at 40 °C
Ith =IeA22
Max. rating for three-phase motors, 50 - 60 Hz

AC-3

220 V 230 V
PkW2.2
380 V 400 V
PkW4
660 V 690 V
PkW4
AC-4

220 V 230 V
PkW1.5
380 V 400 V
PkW3
660 V 690 V
PkW3
Contact sequence

General
Standards
  IEC/EN 60947, VDE 0660, CSA, UL
Lifespan, mechanical; Coil 50/60 Hz
Operationsx 1067
Lifespan, mechanical
Operationsx 10620
Maximum operating frequency

Mechanical
 Ops./h9000
electrical (Contactors without overload relay)
  Page 05/070
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C- 25 - 40
Mounting position
  As required, except vertical with terminals A1/A2 at the bottom
Mounting position

Technical data for design verification

Rated operational current for specified heat dissipation
InA22
Heat dissipation per pole, current-dependent
PvidW2.39
Equipment heat dissipation, current-dependent
PvidW9.56
Static heat dissipation, non-current-dependent
PvsW1.8
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Power contactor, AC switching (EC000066)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Contactor (LV) / Power contactor, AC switching ([email protected] [AAB718012])
Rated control supply voltage Us at AC 50HZ
 V220 - 220
Rated control supply voltage Us at AC 60HZ
 V240 - 240
Rated control supply voltage Us at DC
 V0 - 0
Voltage type for actuating
  AC
Rated operation current Ie at AC-1, 400 V
 A22
Rated operation current Ie at AC-3, 400 V
 A9
Rated operation power at AC-3, 400 V
 kW4
Rated operation current Ie at AC-4, 400 V
 A6.6
Rated operation power Ie at AC-4, 400 V
 kW3
Modular version
  No
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as normally closed contact
  0
Type of electrical connection of main circuit
  Screw connection
Number of normally closed contacts as main contact
  0
Number of main contacts as normally open contact
  4
Approvals
Product Standards  IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No.  E29096
UL Category Control No.  NLDX
CSA File No.  012528
CSA Class No.  3211-04
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Characteristics
IL03407009Z (AWA2100-0882) Mini contactor relay

>>
