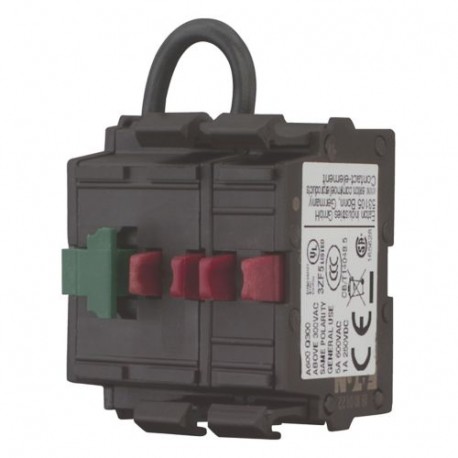

M22-K02SMC10 121474 EATON MOELLER M22-K02SMC10Q contacto de abertura, fixação dianteiro Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-K02SMC10 121474 EATON MOELLER M22-K02SMC10Q contacto de abertura, fixação dianteiro

M22-K02SMC10

121474

EATON - MOELLER

Disponível

Envio hoje

M22-K02SMC10Q contacto de abertura, fixação dianteiro

Mais detalhes


Sinalização Colunas Luminosas Balizas

RMQ-Titan pilot devices - EATON - MOELLER

LED elements- EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$16.32
11+$14.36
21+$14.03
31+$13.86
41+$13.75
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  RMQ-Titan (drilling dimensions 22.5 mm)
Basic function
  Accessories
Single unit/Complete unit
  Element
Basic function accessories
  Self-monitoring contact elements
Connection technique
  Screw terminals
Fixing
  Front fixing
Description
  The N/O is actuated when mounted on the pushbutton.
Contacts

N/O = Normally open
  1 N/O
N/C = Normally closed
  2 NC
General
Standards
  IEC 60947-5-1
Actuating force
 n
Technical data for design verification

Rated operational current for specified heat dissipation
InA6
Heat dissipation per pole, current-dependent
PvidW0.11
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Auxiliary switch block ([email protected] [AKN342010])
Number of contacts as change-over contact
  0
Number of contacts as normally open contact
  0
Number of contacts as normally closed contact
  2
Rated operation current Ie at AC-15, 230 V
 A6
Type of electric connection
  Screw connection
Model
  Top mounting
Mounting method
  Front fastening
Approvals
Product Standards  IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.  E340491
UL Category Control No.  NISD
CSA File No.  012528_C_000
CSA Class No.  3211-03
North America Certification  UL listed, CSA certified
Degree of Protection  UL/CSA Type: -
Dimensions
IL04716005Z RMQ-Titan: Emergency stop buttons, Emergency stop buttons

>
>>

Datasheet - PDF
