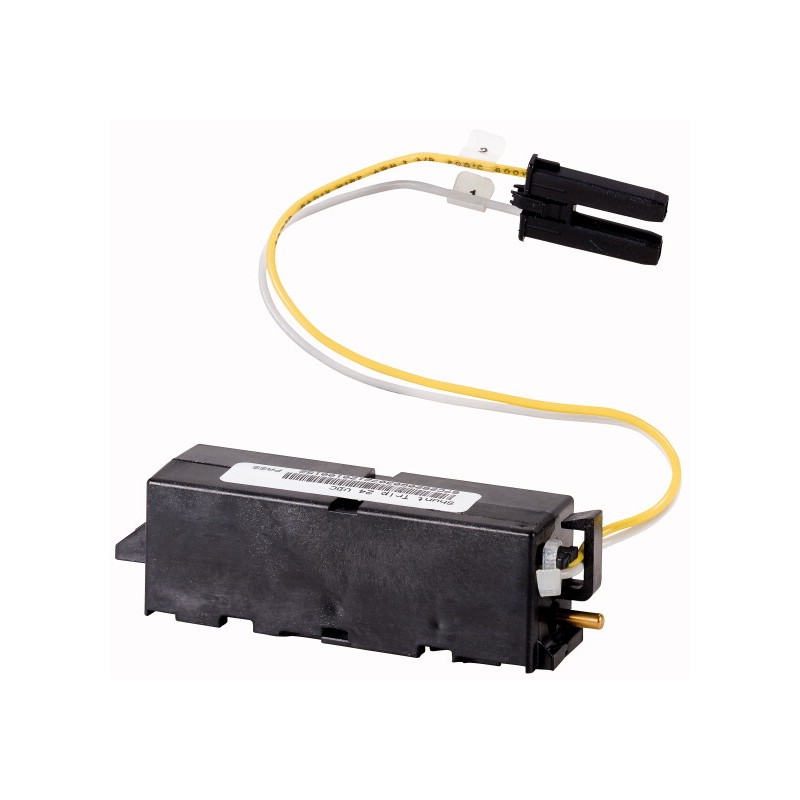

+IZMX-STS110AD 123733 EATON MOELLER Shunt (2) 110-127 VAC / DC Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

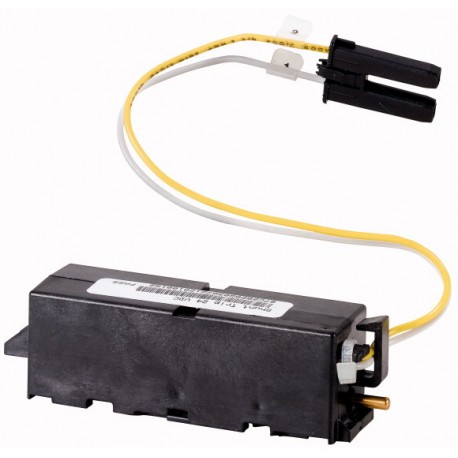

+IZMX-STS110AD 123733 EATON MOELLER Shunt (2) 110-127 VAC / DC

+IZMX-STS110AD

123733

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

Shunt (2) 110-127 VAC / DC

Mais detalhes


Disjuntores

Circuit-breakers IZM - EATON - MOELLER

IZMX16 (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$220.46
2+$215.72
3+$214.74
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Remote switching
Accessories
  2nd shunt release

  Only in combination with a first shunt release.
Cannot be combined with an undervoltage release.
Maximum operating frequency
Actuations/minute 3

  Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage
UsV110 - 127 V AC 50/60 Hz
110 - 125 V DC
Operating range
x USFactor0,7 - 1,1
max. holding current
InA0.071
max. pick-up current (35ms)
InA5.54
max. sealing power
AC/DCVA/W10
max. pull-in power (35ms)
AC/DCVA/W540
Circuit-breaker total switching time
@ US=100%ms22
For use with
  IZMX16..., IZMX40...
INX16..., INX40...
Notes

Suitable for continuous commands (100% DF)

Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Shunt release (for power circuit breaker) (EC001023)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Full load current trip ([email protected] [AKF016010])
Rated control supply voltage Us at AC 50HZ
 V110 - 127
Rated control supply voltage Us at AC 60HZ
 V110 - 127
Rated control supply voltage Us at DC
 V110 - 125
Voltage type for actuating
  AC/DC
Initial value of the undelayed short-circuit release - setting range
 A0
End value adjustment range undelayed short-circuit release
 A0
Type of electric connection
  Flat plug-in connection
Number of contacts as normally open contact
  0
Number of contacts as normally closed contact
  0
Number of contacts as change-over contact
  0
Suitable for power circuit breaker
  Yes
Suitable for off-load switch
  Yes
Suitable for motor safety switch
  No
Suitable for overload relay
  No

Datasheet - PDF

Title:Language:Size:Type:
pdf- Shunt release 2 110-125 VAC/DC - EATON - IZMX-STS110AD - 123733English155 Kbytespdf- Shunt release 2 110-125 VAC/DC - EATON - IZMX-STS110AD - 123733
