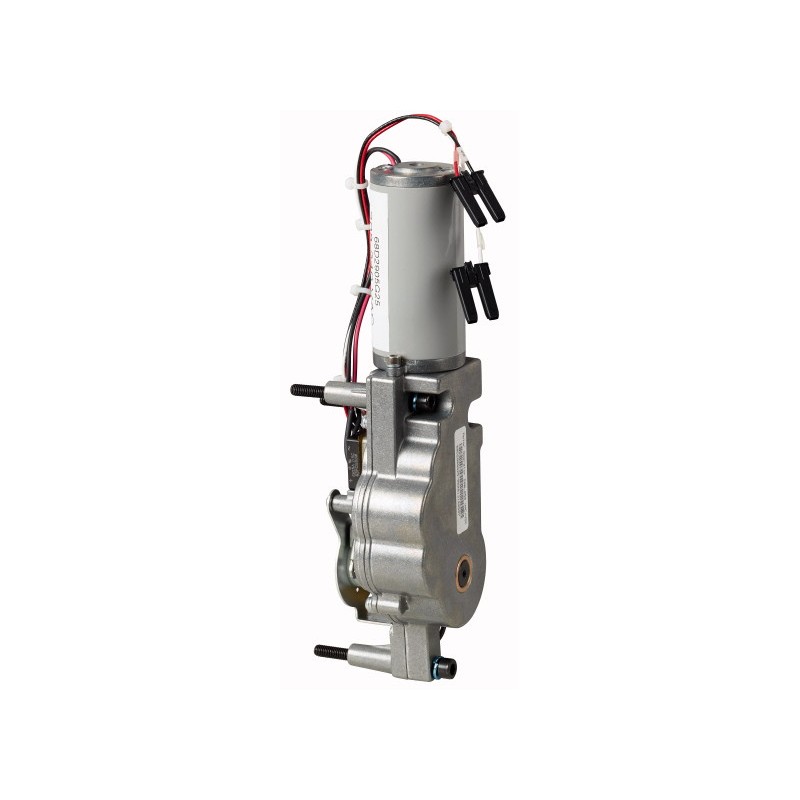

+IZMX-M40-24DC 124290 EATON MOELLER moto-redutor 24 VDC Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

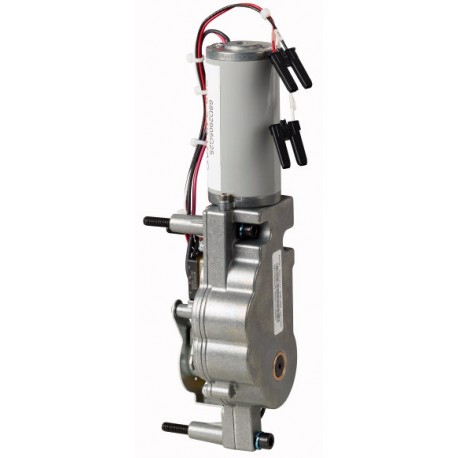

+IZMX-M40-24DC 124290 EATON MOELLER moto-redutor 24 VDC

+IZMX-M40-24DC

124290

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

moto-redutor 24 VDC

Mais detalhes


Disjuntores

Circuit-breakers IZM - EATON - MOELLER

IZMX16 (Accessories) - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Remote switching
Accessories
  Motor operator

  The motor automatically tensions the spring force storage mechanism for remote or local actuation.
Maximum operating frequency
Actuations/minute 3

  Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage
UsV24 V DC
Operating range
x USFactor0,85 - 1,1
max. holding current
InA7
max. pick-up current (35ms)
InA24.5
max. sealing power
AC/DCVA/W200
max. pull-in power (35ms)
AC/DCVA/W3
For use with
  IZMX40…
INX40…
Information about equipment supplied
  A signaling switch for the labeled “Spring-operated stored energy mechanism tensioned” message is included as standard.
Technical data
Rated control voltage
UsV24 V DC
Necessary time required for charging the spring-operated stored energy mechanism at 1 x Us
  3 s DC
Rated operational current
InA7 A DC
Starting current
 A14 A DC
Power consumption
  200 W DC
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010010])
Type of switch drive
  Motor drive
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  DC

Datasheet - PDF

Title:Language:Size:Type:
pdf- Motor operator 24 VDC - EATON - IZMX-M40-24DC - 124290English139 Kbytespdf- Motor operator 24 VDC - EATON - IZMX-M40-24DC - 124290
