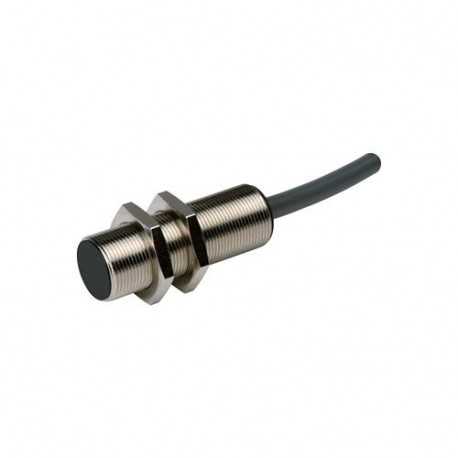

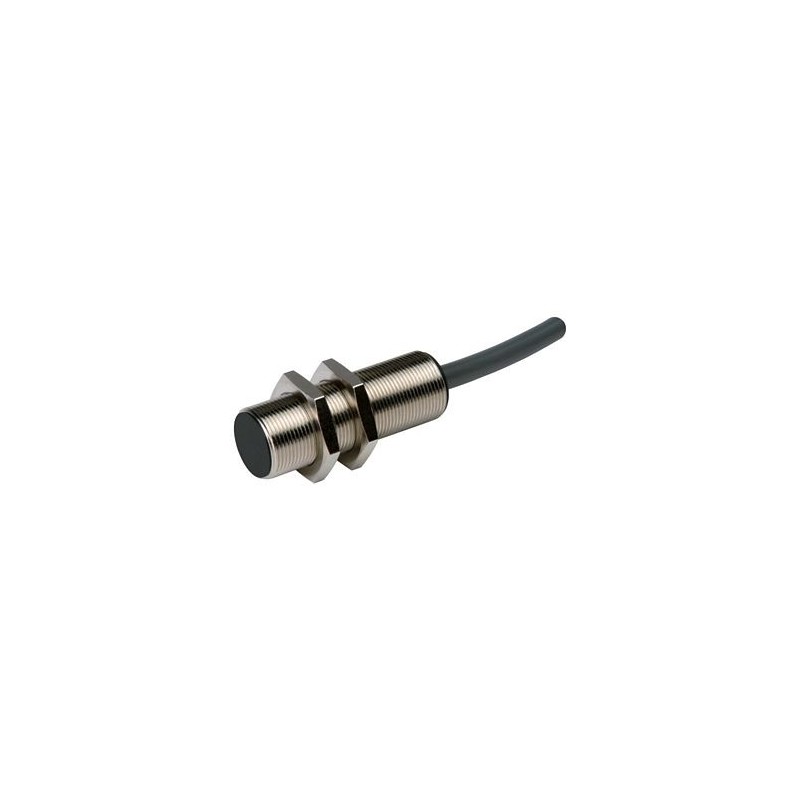

E57-18GS05-D 135929 EATON MOELLER Proximity switch, inductive, 1N/O, Sn 5mm, 2L, 10-30VDC, M18, metal, line .. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

E57-18GS05-D 135929 EATON MOELLER Proximity switch, inductive, 1N/O, Sn 5mm, 2L, 10-30VDC, M18, metal, line ..

E57-18GS05-D

135929

EATON - MOELLER

Disponível

Envio hoje

Proximity switch, inductive, 1N/O, Sn=5mm, 2L, 10-30VDC, M18, metal, line 2m

Mais detalhes


Sensores Indutivos

Sensors-EATON-MOELLER

E57 Global Series Inductive Sensors - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$31.91
6+$29.22
12+$28.51
17+$28.20
23+$27.98
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Basic function
  Inductive Sensors
Product range
  E57 Global Series
Connection
  2-wire
Design (outer dimensions)
  mmM18 x 1
Rated operational voltage
Ue 10 - 30 V DC
Rated switching distance
Snmm5
Type of mounting
  Flush
For connection of:
  2 m connection cable
Contacts

N/O = Normally open
  1 N/O
Material
  Metal
Degree of Protection
  IP67, IP69K
Technical data
General
Standards
  IEC/EN 60947-5-2
Ambient temperature
  -25 - +70
Mechanical shock resistance
 g30
Shock duration 11 ms
Degree of Protection
  IP67, IP69K
Characteristics
Rated switching distance

Rated switching distance
Snmm5
Repetition accuracy of Sn
 %2
Temperature drift of Sn
 %10
Switching hysteresis of Sn
 %15
Rated operational voltage
Ue 10 - 30 V DC
Residual ripple of Ue
 %10
Maximum load current
IemA< 100
Operating current in the switched state at 24 V DC
IbmA10
Voltage drop at Ie
UdV6
Switching Frequency
 Hz1000
Min. load current
IemA3
Residual current through the load in the blocked state at 230 V AC and 24 V DC
IrmA0.8
Switching state display
 LEDRed
Connection
  2-wire
Contacts

N/O = Normally open
  1 N/O
Style

Design (outer dimensions)
  mmM18 x 1
For connection of:
  2 m connection cable
Material
  Metal
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.  CSA report applies to both Canada and US
UL Category Control No.
CSA File No.  224447
CSA Class No.  4652-04 / 4652-84
North America Certification  CSA certified, certified by CSA for use in the US
Max. Voltage Rating  30 V DC
Degree of Protection  IEC: IP67, IP69K; UL/CSA Type: -
Dimensions
IL05301002Z Global Series Inductive Sensors

>>
