INX40N3-40W 150084 EATON MOELLER RES8403WSW0NMNN2MNDX interruptor-seccionador, 3P, 4000A, extraible Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

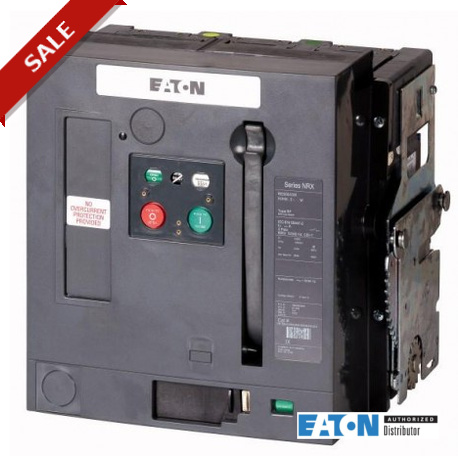

INX40N3-40W 150084 EATON MOELLER RES8403WSW0NMNN2MNDX interruptor-seccionador, 3P, 4000A, extraible

INX40N3-40W

150084

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

RES8403WSW0NMNN2MNDX interruptor-seccionador, 3P, 4000A, extraible

Mais detalhes


Disjuntores

Circuit-breakers IZM - EATON - MOELLER

IN switch-disconnectors - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Air circuit-breakers/switch-disconnectors
Product range
  Open switch-disconnectors
Current Range
  Up to 4000 A
Installation type
  Withdrawable
Construction size
  INX40
Release system
  without releases
Standard/Approval
  IEC
Number of poles
  3 pole
Degree of Protection
  IP20, IP55 with protective cover, IP41 door sealing frame

  optionally fittable by user with comprehensive accessories
Rated current = rated uninterrupted current
In = IuA4000
Making capacity Icm to 440 V 50/60 Hz
IcmkA187
t = 1 s
IcwkA85
t = 3 s
IcwkA66
Technical data
General
Standards
  IEC/EN 60947
Ambient temperature

Storage
ϑ°C-40 - +70
Ambient temperature
 °C-25 - +70
Mounting position
  >>
Utilization category
  B
Degree of Protection
  IP20, IP55 with protective cover, IP41 door sealing frame
Direction of incoming supply
  as required
Main conducting paths
Rated current = rated uninterrupted current
In = IuA4000
Rated uninterrupted current at 50 °C
IuA4000
Rated uninterrupted current at 60 °C
IuA3650
Rated uninterrupted current at 70 °C
IuA3500
Rated impulse withstand voltage
UimpV AC12000
Rated operational voltage
UeV AC690
Overvoltage category/pollution degree
  III/3
Rated insulation voltage
UiV1000
Switching capacity
Rated short-circuit making capacity
Icm
up to 440 V 50/60 Hz
IcmkA187
up to 690 V 50/60 Hz
IcmkA166
Rated short-time withstand current 50/60 Hz

Rated short-time withstand current (t=1s)
IcwkA85
t = 3 s
IcwkA66
Operating times

Closing delay via spring release
 ms35
Total opening delay via shunt release
 ms22


Total opening delay via undervoltage release
 ms37
Maximum operating frequency
 Ops./h
Maximum operating frequency
Operations/h 60
Heat dissipation at rated current In

Withdrawable units (switch with cassette)
 W880
Weight
Withdrawable

3-pole
 kg70
4-pole
 kg86
Cassette

3 pole
 kg27
4 pole
 kg35
Terminal capacities
Copper bar

Withdrawable units

Black
 mm4 x 100 x 10

  These are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA4000
Equipment heat dissipation, current-dependent
PvidW880
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Switch disconnector (EC000216)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector ([email protected] [AKF060010])
Version as main switch
  Yes
Version as maintenance-/service switch
  No
Version as safety switch
  No
Version as emergency stop installation
  No
Version as reversing switch
  No
Max. rated operation voltage Ue AC
 V690
Rated operating voltage
 V690 - 690
Rated permanent current Iu
 A4000
Rated permanent current at AC-21, 400 V
 A0
Rated operation power at AC-3, 400 V
 kW0
Rated short-time withstand current lcw
 kA85
Rated operation power at AC-23, 400 V
 kW0
Switching power at 400 V
 kW0
Conditioned rated short-circuit current Iq
 kA187
Number of poles
  3
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  2
Motor drive optional
  Yes
Motor drive integrated
  No
Voltage release optional
  Yes
Device construction
  Built-in device slide-in technique (withdrawable)
Suitable for ground mounting
  Yes
Suitable for front mounting 4-hole
  No
Suitable for front mounting center
  No
Suitable for distribution board installation
  Yes
Suitable for intermediate mounting
  No
Colour control element
  Green
Type of control element
  Push button
Interlockable
  Yes
Type of electrical connection of main circuit
  Rail connection
Degree of protection (IP), front side
  IP20

Datasheet - PDF

Title:Language:Size:Type:
