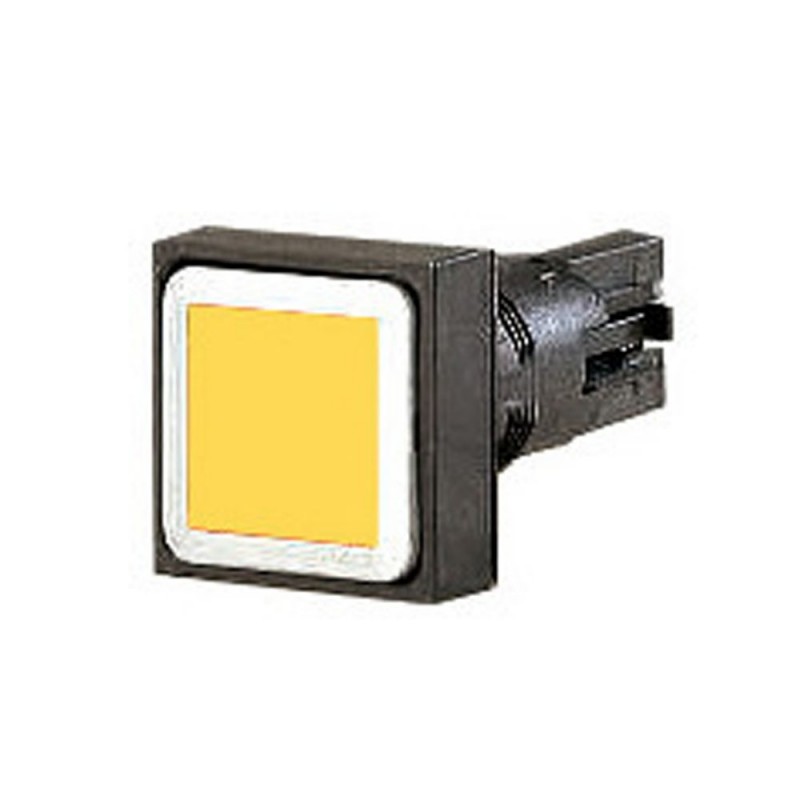

Q25D-GE 086343 EATON MOELLER Botão c / quadrado amarelo 25x25 retorno Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

Q25D-GE 086343 EATON MOELLER Botão c / quadrado amarelo 25x25 retorno

Q25D-GE

086343

EATON - MOELLER

Disponível

Envio hoje

Botão c / quadrado amarelo 25x25 retorno

Mais detalhes


Sinalização Colunas Luminosas Balizas

RMQ-Titan pilot devices - EATON - MOELLER

Illuminated pushbutton actuators - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$7.58
23+$6.28
46+$6.12
69+$6.04
92+$5.99
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  RMQ16 (drilling dimensions 16 mm)
Basic function
  Pushbutton actuators
Single unit/Complete unit
  Single unit
Design
  Flat

  momentary
Button plate

button plate
  yellow
Button plate

General
Standards
  IEC/EN 60947, VDE 0660
Lifespan, mechanical
Operationsx 106> 3
Operating frequency
Operations/h
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C60
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  Not applicable.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Front element for push button (EC000221)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for push-button actuators ([email protected] [AKF028011])
Colour button
  Yellow
Number of command positions
  1
Construction type lens
  Square
Hole diameter
 mm16
Width opening
 mm16
Height meter opening
 mm6
Degree of protection (IP), front side
  IP65
Type of button
  Flat
Suitable for illumination
  No
With protection cover
  No
Labelled
  No
Switching function latching
  No
Spring-return
  Yes
With front ring
  Yes
Material front ring
  Plastic
Colour front ring
  Black
Approvals
Product Standards  IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  46552
CSA Class No.  3211-03
North America Certification  UL listed, CSA certified
Degree of Protection  UL/CSA Type 1
Dimensions
IL04716016Z (AWA1160-1429) Mounting of components

>>
