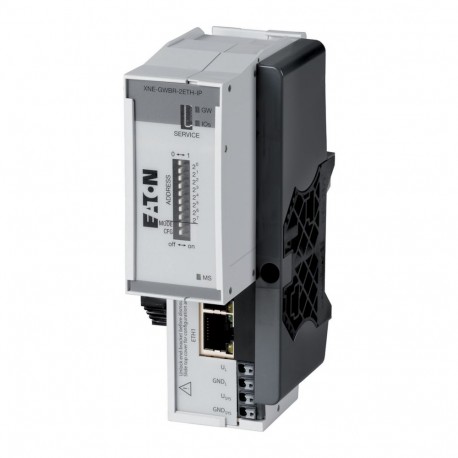

XNE-GWBR-2ETH-IP 140047 EATON MOELLER portal ECO Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

XNE-GWBR-2ETH-IP 140047 EATON MOELLER portal ECO

XNE-GWBR-2ETH-IP

140047

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

portal ECO

Mais detalhes


Controladores Logicos Programaveis Plcs

EC4E & XI/ON Remote I/O system - EATON - MOELLER

Gateways - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$223.73
2+$218.02
3+$215.19
4+$213.39
5+$212.67
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Function
  XI/ON ECO gateways
Connection technique
  Push-in spring-cage terminal
Function
  XNE-Gateway with integrated supply
Short Description
  supports up to 74 disc-type modules (XN, XNE)
2 x RJ45-socket
Address set with decimal rotary coding switch, BootP, DHCP or I/Oassistant
Address range: 1 – 254 (dec.)
Field bus connection
  Ethernet (Ethernet-IP protocol)
Terminal capacity (field bus/supply voltage)
  Screw terminals
Service interface
  Mini-USB
Data transfer rate
  10/100 MBit/s
Instructions Bus refreshing module is already integrated.
Information about equipment supplied The delivery package for all gateways includes: 2 x end bracket XN-WEW-32/2-SW, 1 x end plate XN-ABPL
Technical data
General
Standards
  EN 61000-6-2
EN 61000-6-4
EN 61131-2
Potential isolation
  Yes, through optocoupler
Ambient temperature
 °C0 - +55
Storage
ϑ°C-25 - +85
Relative humidity
  5 - 95 % (indoor), Level RH-2, no condensation (for storage at 45°C)
Harmful gases
 ppmSO2: 10 (rel. humidity < 75%, no condensation)
H2S: 1.0 (rel. humidity < 75 %,no condensation)
Vibration
  according to IEC/EN 60068-2-6
Mechanical shock resistance
 gaccording to IEC 60068-2-27
Continuous shock resistance (IEC/EN 60068-2-29)
  According to IEC 60068-2-29
Drop and topple
  According to IEC 60068-2-31, free fall according to IEC 60068-2-32
Degree of Protection
  IP20
Electromagnetic compatibility (EMC)

ESD
 kVEN 61100-4-2
Electromagnetic fields
 V/mEN 61100-4-2
Burst
  EN 61100-4-4
Surge
  EN 61100-4-5
Radiated RFI
  VEN 61100-4-6
Emitted interference (radiated, high frequency)
 dBEN 55016-2-3
Voltage fluctuations/voltage dips
  EN 61131-2
Type test
  to EN 61131-2
Approvals
  CE, cULus
Static heat dissipation, non-current-dependent
PvsW8
Other technical data (sheet catalogue)
  >Technical Data
Terminations
Rated data
  according to VDE 0611 Part 1/8.92/IEC/EN 60947-7-1
Connection design in TOP direction
  Push-In spring-cage terminals
Stripping length
 mm8
Clamping range
  max. 0.14 - 1.5 mm2
Connectable conductors

Solid
 mm20.25 - 1.5
Flexible without ferrule
 mm20.25 - 1.5
Flexible with ferrule
 mm20.25 - 1.5
Flexible with ferrule
 mm20.25 - 0.75
Gauge pin IEC/EN 60947-1
  A1
Networking
Bus
  Ethernet
Bus protocol
  EtherNet-IP
Maximum station configuration
  74 cards (XN, XNE) of slice design or max. length of station: 1 m
System supply
UsysV DC24 /5
Coordination type 2
UsysV DC4.7…5.3
Coordination type 1
UsysV DC18…30
Field voltage
UL 24 V DC
Admissible range
  18-30 V DC
Residual ripple
 %According to EN 61131-2
Service interface
  Mini-USB
Connection design for field bus
  2 x RJ45 (Ethernet Switch)
Data transfer rate
 kBit/s10000, 100000
Data transfer rate setting
  automatic
Addressing
  DIP switch, BootP, DHCP or PGM
Address range
  1 - 254 decimal
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW8
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C0
Operating ambient temperature max.
 °C55
Degree of Protection
  IP20
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Approvals
Specially designed for North America  No
Current Limiting Circuit-Breaker  No
Degree of Protection  IEC: IP20, UL/CSA Type: -
Dimensions
MN05002007Z User manual XI/ON for XNE-GWBR-2ETH-IP gateway

>>

Datasheet - PDF

Title:Language:Size:Type:
Ficha técnica 1: 140047English234 KbytesFicha técnica 1: 140047
Ficha técnica 2: 140047English319 KbytesFicha técnica 1: 140047
Ficha técnica 3: 140047English108 KbytesFicha técnica 1: 140047
Ficha técnica 4: 140047English26 KbytesFicha técnica 1: 140047
Catálogo completo 1: 140047English29 MbytesFicha técnica 1: 140047
Catálogo completo 2: 140047English6 MbytesFicha técnica 1: 140047
