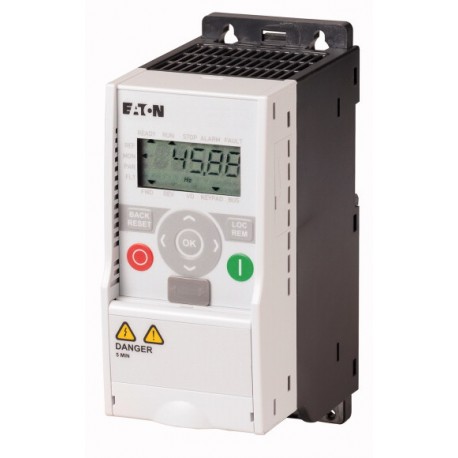

MMX34AA2D4F0-0 121399 EATON MOELLER conversor de frequência, 3-F (400V 2.4A 0.75kW). Filtro Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

MMX34AA2D4F0-0 121399 EATON MOELLER conversor de frequência, 3-F (400V 2.4A 0.75kW). Filtro

MMX34AA2D4F0-0

121399

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

conversor de frequência, 3-F (400V; 2.4A; 0.75kW). Filtro

Mais detalhes


Frequency inverters - EATON - MOELLER

Frequency inverters M-MAX - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Até 35% de desconto para clientes registados * Este artigo é obsoleto. Por favor, peça-nos um orçamento para verificar se há unidades disponíveis ou você oferecer um produto alternativo.
Pedido de cotação EXPRESS, em breve você receberá sua resposta

MMX34AA2D4F0-0 121399 EATON MOELLER conversor de frequência, 3-F (400V 2.4A 0.75kW). Filtro

Introduza os seus dados de contato e envie sua solicitação, você será notificado por e-mail com a nossa cotação. Você simplesmente aceite o orçamento e espere a sua encomenda






* Os campos obrigatórios

ou

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  M-MAX (MMX)
Rated operational voltage
  3 AC 400 V
Mains voltage (50/60Hz)
ULNV380 (-15%) - 480 (+10%)
Assigned motor rating

at 400 V, 50 Hz
PkW0.75

  Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +50 °C
at 460 V, 60 Hz
PHP1

  Assigned motor rating for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 (at 50 Hz) or 1800 min-1 (at 60 Hz)
Rated operational current
IeA2.4
Rated motor current

at 400 V, 50 Hz
IMA1.9
at 440 - 480 V, 60 Hz
IMA2.1
Radio interference suppression filters
  with internal radio interference suppression filters
Degree of Protection
  IP20/NEMA 0
Brake chopper
  without internal brake chopper
Frame size
  FS1
Notes
Cross-reference Increased protection type IP21/NEMA 1, → Accessories
Technical data
Power section
Input side

Number of phases
  three-phase (e.g. L1, L2, L3)
Mains voltage (50/60Hz)
ULNV380 (-15%) - 480 (+10%)
Mains voltage UL/CSA (45-66 Hz ± 0%)
ULNV323 - 528 (±0%)
Rated operational voltage
  3 AC 400 V
Rated operational current
IeA2.4
Input current
ILNT3.2
Overload current for 60 s every 600 s at 50 °C
 T3.6
Starting current for 2 s every 20 s at 50 °C
 T4.8
Maximum leakage current to ground (PE) without motor
IPEmA45.1
Apparent power

Apparent power at rated operation 400 V
SkVA1.66
Apparent power at rated operation 480 V
SkVA2
Assigned motor rating

at 400 V, 50 Hz
PkW0.75
at 460 V, 60 Hz
PHP1
Braking torque

Standard braking torque
  max. 30 % MN
DC braking torque
  max. 100% of rated operational current Ie, variable
Switching frequency
fPWMkHz6
adjustable 1 - 16
Heat dissipation at rated operational current
PVW31.7
Efficiency
 %95
Fitted with
  Fan (internal, temperature controlled)
Frame size
  FS1
Weight
mkg0,500
Technical data ETIM 5.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Frequency controller =< 1 kV (EC001857)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter = < 1 kv ([email protected] [AKE177010])
Mains voltage
 V323 - 528
Mains frequency
  50/60 Hz
Number of phases input
  3
Number of phases output
  3
Max. output frequency
 Hz320
Rated output voltage
 V400
Measuring output current
 A2.4
Output power at rated output voltage
 kW0.75
Max. output at quadratic load at rated output voltage
 kW0.75
Max. output at linear load at rated output voltage
 kW0.75
With control unit
  Yes
Application in industrial area permitted
  Yes
Application in domestic- and commercial area permitted
  Yes
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for KNX
  No
Supporting protocol for MODBUS
  Yes
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  No
Number of HW-interfaces industrial Ethernet
  0
Number of HW-interfaces PROFINET
  0
Number of HW-interfaces RS-232
  0
Number of HW-interfaces RS-422
  0
Number of HW-interfaces RS-485
  1
Number of HW-interfaces serial TTY
  0
Number of HW-interfaces USB
  0
Number of HW-interfaces parallel
  0
Number of HW-interfaces other
  0
With optical interface
  No
With PC connection
  Yes
Integrated braking resistance
  No
4-quadrant operation possible
  No
Type of converter
  U converter
Degree of protection (IP)
  IP20
Height
 mm157
Width
 mm66
Depth
 mm99
Relative symmetric net frequency tolerance
 %0
Relative symmetric net current tolerance
 %0
Approvals
Product Standards  UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.  E134360
UL Category Control No.  NMMS, NMMS7
CSA File No.  UL report applies to both US and Canada
CSA Class No.  3211-06
North America Certification  UL listed, certified by UL for use in Canada
Specially designed for North America  No
Suitable for  Branch circuits
Max. Voltage Rating  3~ 480 V AC IEC: TN-S UL/CSA: Y (Solidly Grounded Wey)
Degree of Protection  IEC: IP20; optionally UL/CSA NEMA 1
Dimensions
IL04020006Z MMX adjustable frequency drives, size 1, 2 and 3

>
>
>
>
>
>
>
>>

Datasheet - PDF
