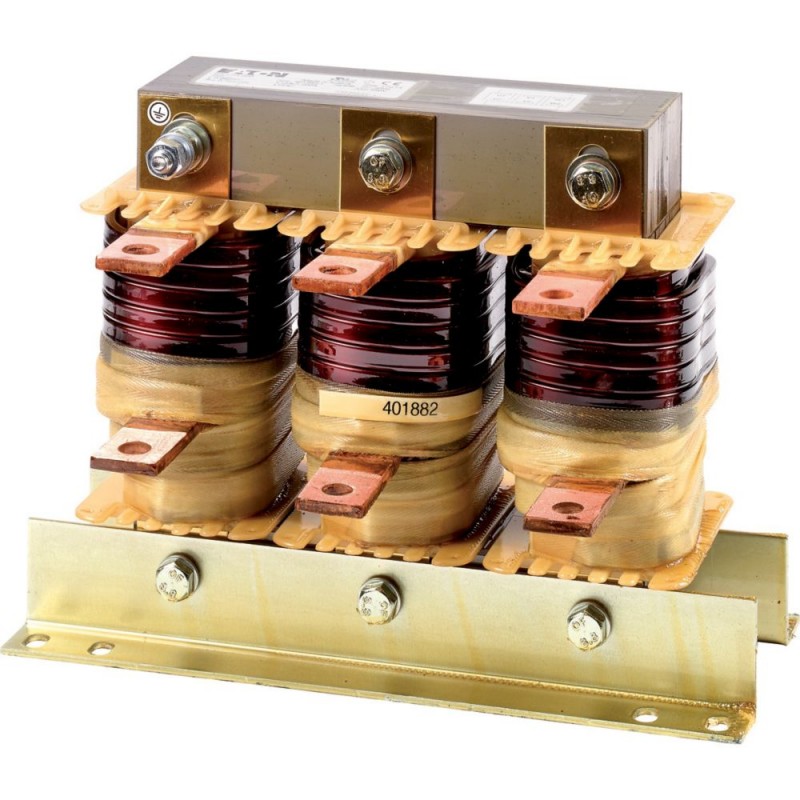

DX-LM3-450 169148 EATON MOELLER bobina de fase de motor Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DX-LM3-450 169148 EATON MOELLER bobina de fase de motor

DX-LM3-450

169148

EATON - MOELLER

Disponível

Envio hoje

Produto sob demanda, sem reembolso.

bobina de fase de motor

Mais detalhes


Variadores De Frequência

Frequency inverters - EATON - MOELLER

Frequency inverters M-MAX - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Accessories
Accessories
  Motor chokes
Description
  three-phase
For use with
  DA1, SPX
Max. permissible connection voltage
 V AC750 V + 0% (0 - 400 Hz)
Rated operational current
IeA450
Inductance
LmH0.1
Technical data
General
Standards
  IEC/EN 61558-2-20-2000, VDE 0570 Part 2-20/2001-04, UL, CSA
Operating temperature
 °C-25 to +40, up to 70 with current derating (see the note)
Storage temperature
ϑ°C-25 - +85
Mechanical shock resistance
 g11 ms2/15
3 shocks
Vibration resistance
 g1 (0 - 150 Hz)
Vibration
  0.35 mm at 10 - 55 Hz
Altitude
 m0 – 1000 above sea level, up to 5000 with current reduction (see notes)
Mounting position
  Standing vertically, suspended horizontally
Free surrounding areas
 MM< 50
Degree of Protection
  IP00 (connection lugs)
Rated duty factor
 % DF100
Weight
 kg81.7
Electrical data
Rated operational voltage
  3 AC 400 V
Max. supply voltage
 V AC750 V + 0% (0 - 400 Hz)
Operating frequency
fHz0…200
Insulation class
  F
Rated operational current
IeA450
Inductance
LmH0.1
max. heat dissipation (pulse frequency)

(3 kHz)
PvW730
Connection
Connection lugs

Technical data for design verification

Rated operational current for specified heat dissipation
InA450
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW730
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C40
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Coil for low-voltage (EC002563)
Electric engineering, automation, process control engineering / Electronic coil and filter / Electronic choke coil / Electronic choke coil (unspecified) ([email protected] [ADJ199004])
Suitable as interference suppression reactance coil
  No
Suitable as net reactance coil
  No
Suitable as commutation reactance coil
  No
Suitable as ripple filter choke
  No
Suitable as output reactance coil
  Yes
Number of poles, primary side
  3
Rated clock frequency
 kHz3
Rated operation frequency
 Hz0 - 200
Max. rated operation voltage Ue
 V750
Rated current at AC
 A450 - 450
Max. rated current (Ith) at rated voltage DC
 A0
Rated inductance
 mH0.1
Degree of protection (IP)
  IP20
Relative short circuit voltage
 %32.3
Resonance frequency
 Hz0
Approvals
Product Standards  UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.  E167225
UL Category Control No.  XPTQ2, XPTQ8
CSA File No.  UL report applies to both US and Canada
North America Certification  UL listed, certified by UL for use in Canada
Specially designed for North America  No
Suitable for  Branch circuits
Max. Voltage Rating  1~ 240 V AC IEC: TN-S UL/CSA: Y (Solidly Grounded Wey), 3~ 240 V AC IEC: TN-S UL/CSA: Y (Solidly Grounded Wey), 3~ 480 V AC IEC: TN-S UL/CSA: Y (Solidly Grounded Wey)
Degree of Protection  IEC: IP00
Dimensions
Height tolerance depends on gap
The position of connection lugs U2-V2-W2 depends on the coil material and can deviate from the position illustrated here.
