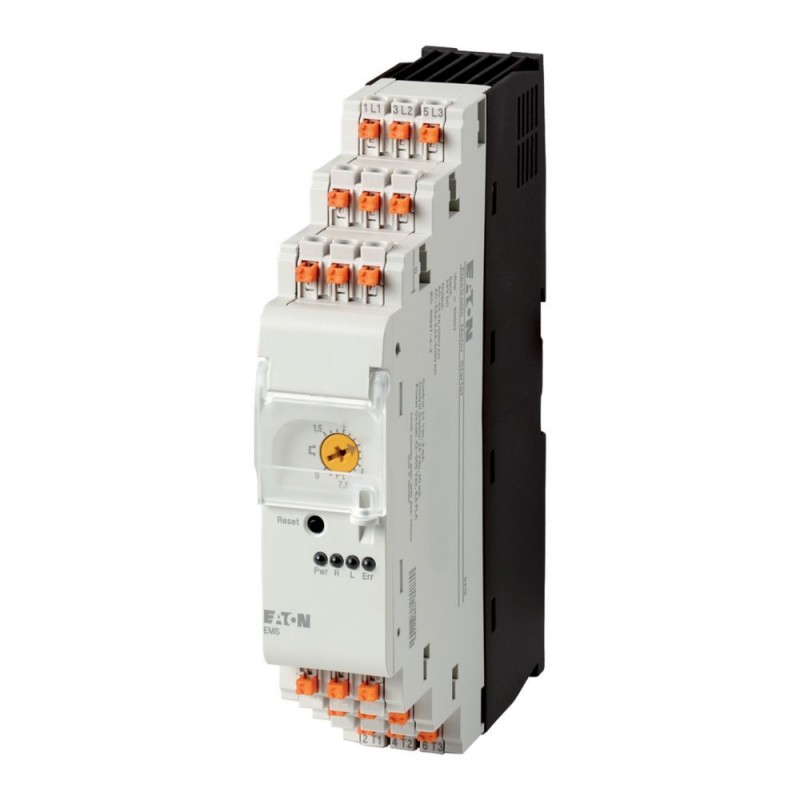

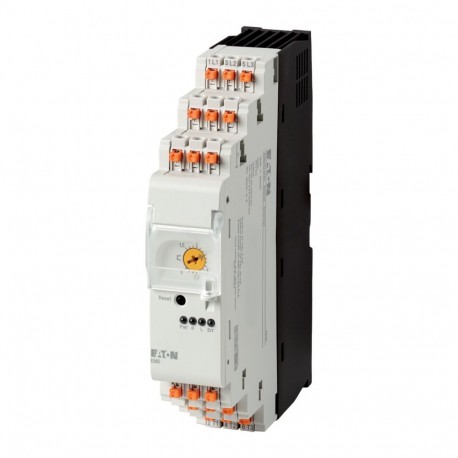

EMS-RO-T-9-24VDC 170102 EATON MOELLER Fermento inversor eletrônico 3 kW (AC53a, 400V) Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EMS-RO-T-9-24VDC 170102 EATON MOELLER Fermento inversor eletrônico 3 kW (AC53a, 400V)

EMS-RO-T-9-24VDC

170102

EATON - MOELLER

Disponível

Envio hoje

Fermento inversor eletrônico; 3 kW (AC53a, 400V)

Mais detalhes


Contatores

Motor-Starters - EATON - MOELLER

EMS Motor Starters - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

QuantidadePreço
1+$132.62
2+$128.96
4+$126.00
5+$125.16
7+$124.47
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Como funciona

Como é que isso funciona?

1 Adicione os produtos de sua escolha ao carrinho de compras
2 Introduza os seus dados de contato e envie sua solicitação
3 Você será notificado por e-mail com a nossa cotação
4 Você simplesmente aceite o orçamento e espere a sua encomenda

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Produtos relacionados

Mais informação



Delivery programme
Product range
  Electronic motor starter
Basic function
  Reversing starters (completedevices)
Description
  DOL starting
Reversing start
Motor protection
Circuit design: safety output stage with bypass, three-phase disconnect.
Conformity, Approval

Explosion protection (according to ATEX 94/9/EC)
  II (2) G [Ex e] [Ex d] [Ex px]
II (2) D [Ex t] [Ex p]
EC-prototype test certification
  PTB 13 ATEX 3003
Motor ratings

Max. rating for three-phase motors, 50 - 60 Hz

AC-53a

380 V 400 V 415 V
PkW0.55 - 3
Setting range of overload releases
General
Standards
  IEC/EN 60947-4-2
UL508
Dimensions

Width
 mm30
Height
 mm157
Depth
 mm123.5
Weight
 kg0.3
Mounting
  Top-hat rail IEC/EN 60715, 35 mm
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Mounting position
  Vertical
Motor feeder at bottom
Lifespan, electrical
Operations 3 x 107
Max. switching frequency
 Operations/h7200 (pulse pause time 50:50)
Terminal capacity

Solid
 mm21 x (0.75 - 2.5)
1 x AWG20 - 14
flexible, with ferrule
 mm22 x (0,75 - 2,5)
1 x AWG20 - 14
Notes
  Minimum length 10 mm.
flexible, with twin ferrule
 mm22 x (0,75 - 1,5)
2 x AWG20 - 16
Notes
  Minimum length 10 mm.
Climatic environmental conditions
Operating ambient temperature
 °C-25 - +60, in accordance with IEC 60068-2-1
Condensation
  Take appropriate measures to prevent condensation
Storage
ϑ°C-40 - +80
Main conducting paths
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/2
Rated operational voltage
UeV42 - 550
Rated operational current

AC-51
IeA1.20 - 9
AC-53a
IeA1.20 - 6.5
Heat dissipation
PVW3.3 - 14.6
Static heat dissipation, non-current-dependent
PvsW1
Basic insulation to IEC/EN60947-1

Between supply, control, and switching voltages
 V AC500
between feedback signal output and switch voltage
 V AC500
Safe isolation to IEC/EN60947-1

Between supply, control, and switching voltages
 V AC
Technical data for design verification

Rated operational current for specified heat dissipation
InA6.5
Heat dissipation per pole, current-dependent
PvidW2.1
Equipment heat dissipation, current-dependent
PvidW6.3
Static heat dissipation, non-current-dependent
PvsW1
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C60
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Motor starter/Motor starter combination (EC001037)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Motor starter combination ([email protected] [AJZ718010])
Kind of motor starter
  Reversing starter
With short-circuit release
  No
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  DC
Rated operation power at AC-3, 230 V, 3-phase
 kW1.5
Rated operation power at AC-3, 400 V
 kW3
Rated power, 460 V, 60 Hz, 3-phase
 kW2.2
Rated power, 575 V, 60 Hz, 3-phase
 kW0
Rated operation current Ie
 A9
Rated operation current at AC-3, 400 V
 A6.5
Overload release current setting
 A1.5 - 9
Rated conditional short-circuit current, type 1, 480 Y/277 V
 A0
Rated conditional short-circuit current, type 1, 600 Y/347 V
 A0
Rated conditional short-circuit current, type 2, 230 V
 A0
Rated conditional short-circuit current, type 2, 400 V
 A0
Number of auxiliary contacts as normally open contact
  1
Number of auxiliary contacts as normally closed contact
  1
Ambient temperature, , upper operating limit
 °C40
Temperature compensated overload protection
  Yes
Release class
  CLASS 10
Type of electrical connection of main circuit
  Spring clamp connection
Type of electrical connection for auxiliary- and control current circuit
  Spring clamp connection
Rail mounting possible
  Yes
Degree of protection (IP)
  IP20
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for MODBUS
  No
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  No
Approvals
Product Standards  IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking
UL File No.  E29096
UL Category Control No.  NLDX, NLDX7
CSA File No.  UL report applies to both US and Canada
North America Certification  UL listed, certified by UL for use in Canada
Specially designed for North America  No
Characteristics
IL03407198Z Electronic motor starter EMS

>
>>
